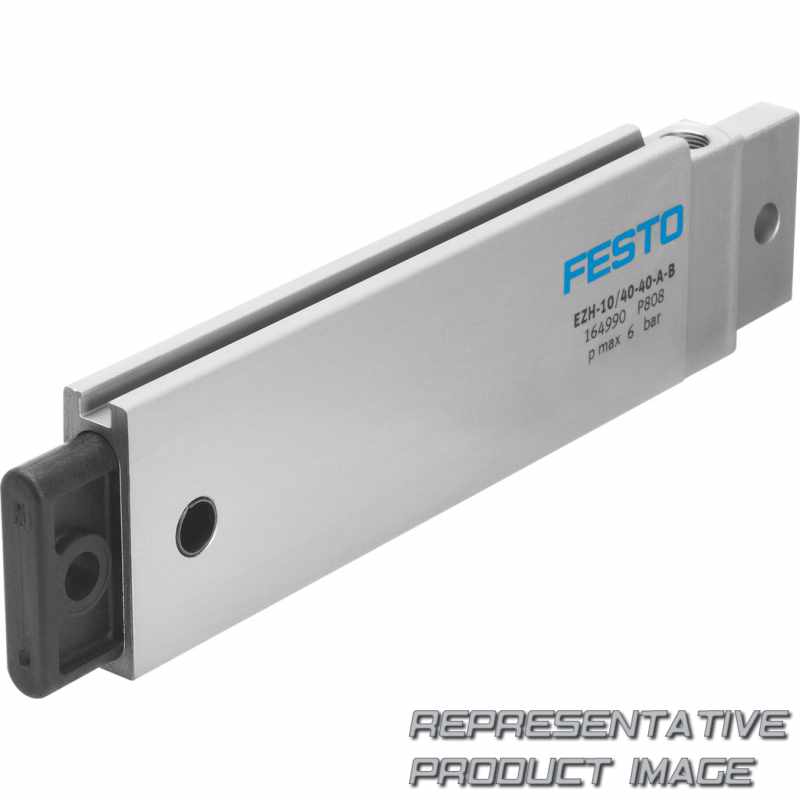

FESTO 164990 flat cylinder

Name: 164990 FESTO
Brand: FESTO
SKU: 701041-en-gbp
Price: 230.19 GBP
Availability: InStock

EZH-10/40-40-A-B

£230.19 ~~£260.75~~ -11%

2 pcs. with 1 to 3 days delivery to United States

Specifications

Position sensing (A)	For proximity sensor
Generation (B)	Function-optimised

Material piston rod		PA-reinforced
Material seals		TPE-U(PU)
Pneumatic connection		G1/8
Product weight		242 g
Theoretical min. spring return force		18 N
Ambient temperature		0 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Operating pressure		2,5 bar ... 6 bar

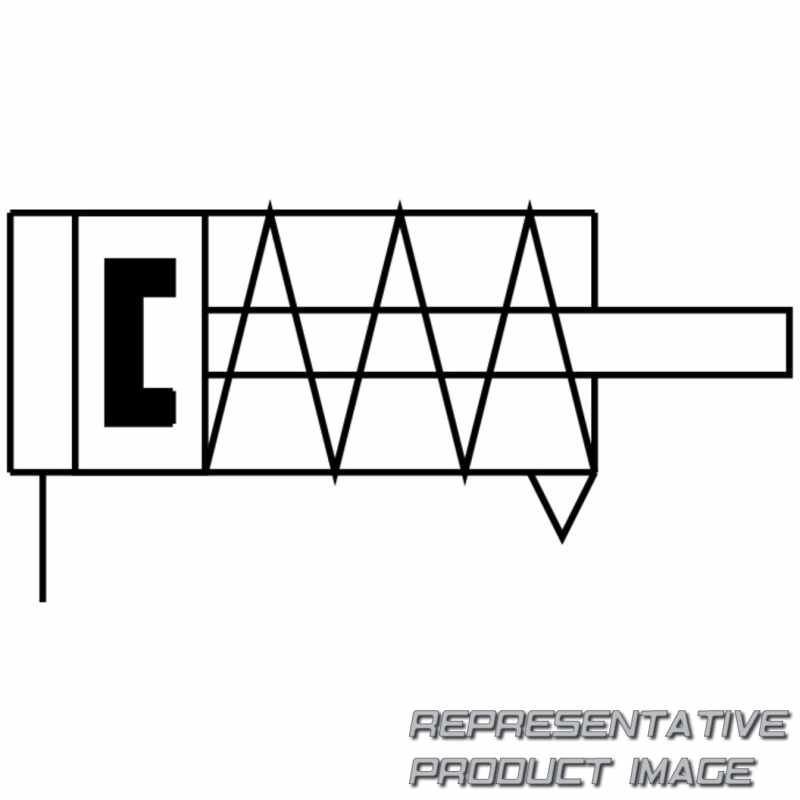

Symbol		00991201
Design		Piston Rectangular piston rod
Mounting position		optional
Piston diameter		22 mm Equivalent diameter

Material housing		Aluminium
Material cover		Aluminium
Type of mounting		With transverse bore
Theoretical max. spring return force		28 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke		205 N
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Protection against torque/guide		Rectangular piston rod
Position detection		Via proximity switch
Mode of operation		Single-acting Pushing
Cushioning		No cushioning
Stroke		40 mm
