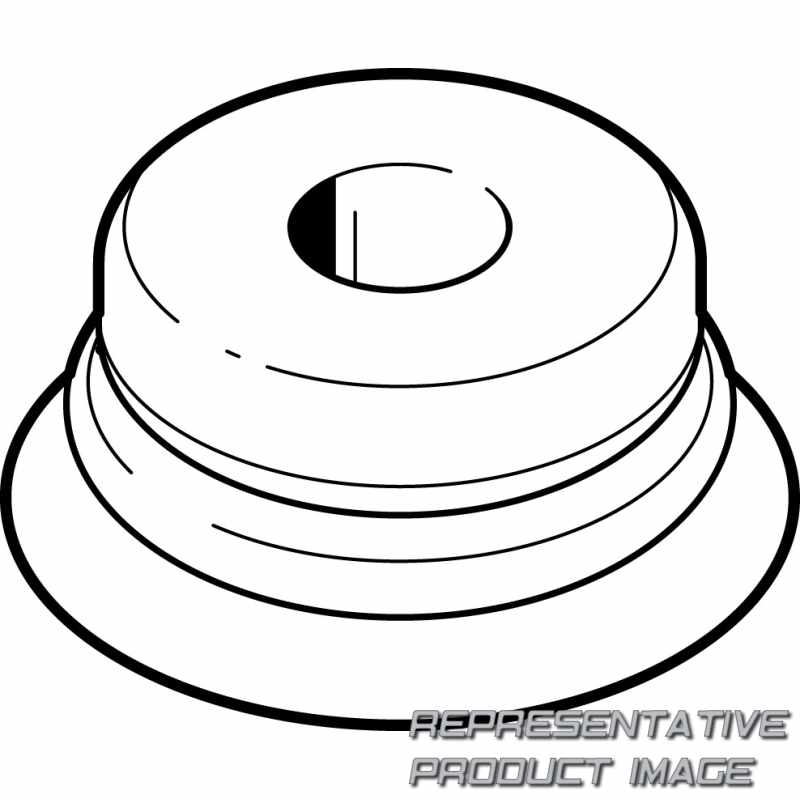

FESTO 191066 suction cup without connector

Name: 191066 FESTO
Brand: FESTO
SKU: 669654-en-gbp
Price: 38.13 GBP
Availability: InStock

ESV-80-BN

£38.13

2 pcs. with 1 to 3 days delivery to United States

Specifications

Material (N)	Nitrile rubber
Additional features	None

Material suction cup		NBR
Shore hardness		50 +/- 5
Product weight		39 g
Ambient temperature		-10 °C ... 70 °C
Operating medium		Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Symbol		00991485
Position of connection		Top
Suction cup diameter		80 mm
Height compensator for suction cup		10 mm

Note on materials		RoHS-compliant
Colour		Black
Holding force at nominal operating pressure		213,6 N
Suitable for use with food		See supplementary material information
Suction cup shape		Round bellows 1.5 convolutions
Mounting position		optional
Suction cup volume		63,9 cm³
Min. workpiece radius		430 mm
