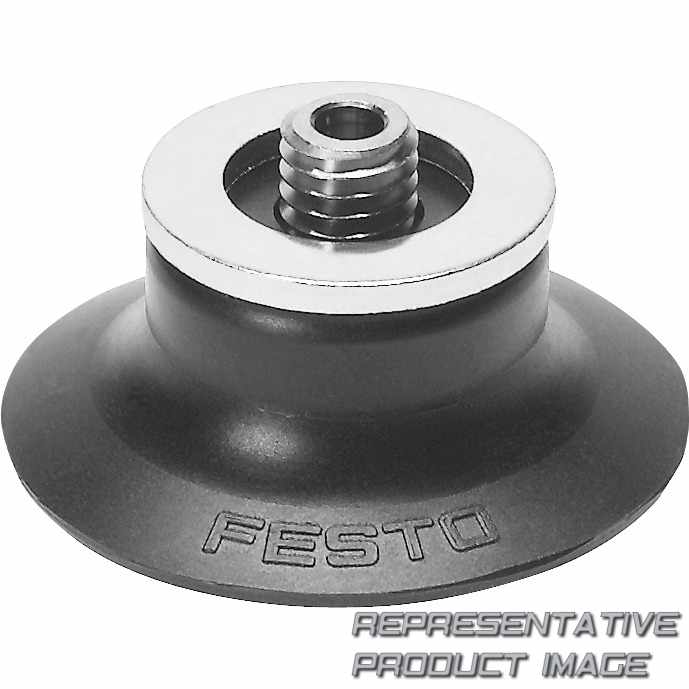

FESTO 189303 suction cup complete

Name: 189303 FESTO
Brand: FESTO
SKU: 689631-en-gbp
Price: 17.66 GBP
Availability: InStock

ESS-30-SNA

£17.66

2 pcs. with 1 to 3 days delivery to United States

Specifications

Material suction cup		BR
Material screw-in stud		Nickel-plated brass Galvanised and chrome-plated steel
Colour		Black/white dot
Type of mounting		Via vacuum port
Lateral force at nominal operating pressure		20 N
Ambient temperature		-10 °C ... 70 °C
Corrosion resistance class CRC		1 - Low corrosion stress
Nominal operating pressure		-0,7 bar
Suction cup shape		Round, flat
Symbol		00991485
Mounting position		optional
Suction cup volume		0,867 cm³
Nominal size		3 mm

Note on materials		RoHS-compliant
Shore hardness		50 +/- 5
Vacuum connection		M6
Product weight		9 g
Holding force at nominal operating pressure		40,8 N
Suitable for use with food		See supplementary material information
Operating medium		Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Operating pressure		0 bar ... 0,95 bar
Correlation to suction-cup holder		Size 4
Special characteristics		Antistatic
Position of connection		Top
Suction cup diameter		30 mm
Min. workpiece radius		110 mm
