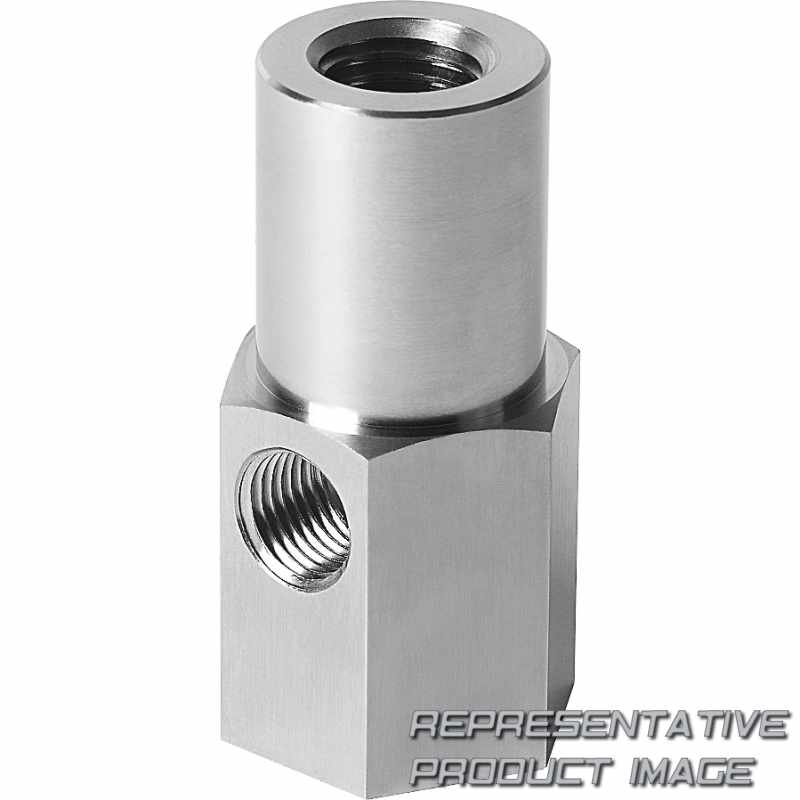

FESTO 189212 suction cup complete holder

Name: 189212 FESTO
Brand: FESTO
SKU: 688666-en-gbp
Price: 67.69 GBP
Availability: InStock

ESH-HB-6-G

£67.69

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (ESH)	Suction cup complete holder
Retainer version (HB)	Female thread, connection on the side

Suction cup connection (6)	M20x2
Vacuum connection (G)	Threaded connection

Material retaining bracket		Aluminium Nickel-plated brass POM Tempered steel High-alloy steel
Vacuum connection		G1/4
Type of mounting		Via female thread
Ambient temperature		-10 °C ... 60 °C
Operating medium		Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Design		Vacuum port on side
Volume		7,25 cm³

Note on materials		RoHS-compliant
Suction cup mounting		M20x2
Product weight		271 g
Corrosion resistance class CRC		1 - Low corrosion stress
Correlation to suction-cup holder		Size 6
Mounting position		Vertical
