| Rolling element frequency (60 t./min.) | 4,066 Hz | ||
| Inner ring frequency (60 t./min.) | 4,931 Hz | ||
| Recommended tightening torque for set screw | 3,7 N-m | ||
| Operating temperature min. | -40 °C | ||
| C - Dynamic load rating | 9,55 kN | ||

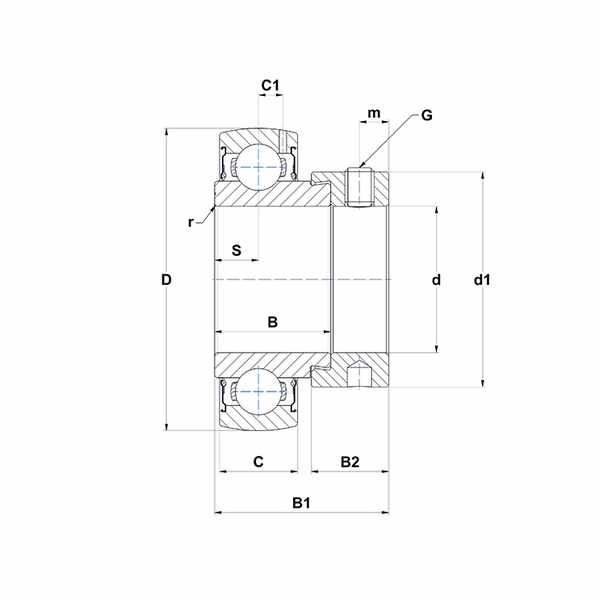

| S - Dist. cent. of raceway to face IR on side opp. lock. device | 6,5 mm | ||
| m - Distance to set screw | 5 mm | ||
| d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve | 27,2 mm | ||
| C - Width of Outer Ring | 12 mm | ||
| B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) | 28,6 mm |
| Cage frequency (60 t./min.) | 0,384 Hz | ||
| Outer ring frequency (60 t./min.) | 3,069 Hz | ||
| Operating temperature max. | 100 °C | ||
| C0 - Static load rating | 4,78 kN | ||
| SW - Wrench size | 3,175 mm | ||
| r - Radius Inner Ring | 0.60 | ||
| G - Set screw size | 1/4-28UNF | ||
| C1 - Distance center of OR to center of lubrication zone | 3,6 mm | ||
| B2 - Width of eccent. Lock. collar/nut+washer of adapter sleeve | 13,5 mm | ||
| Brand | SNR |
