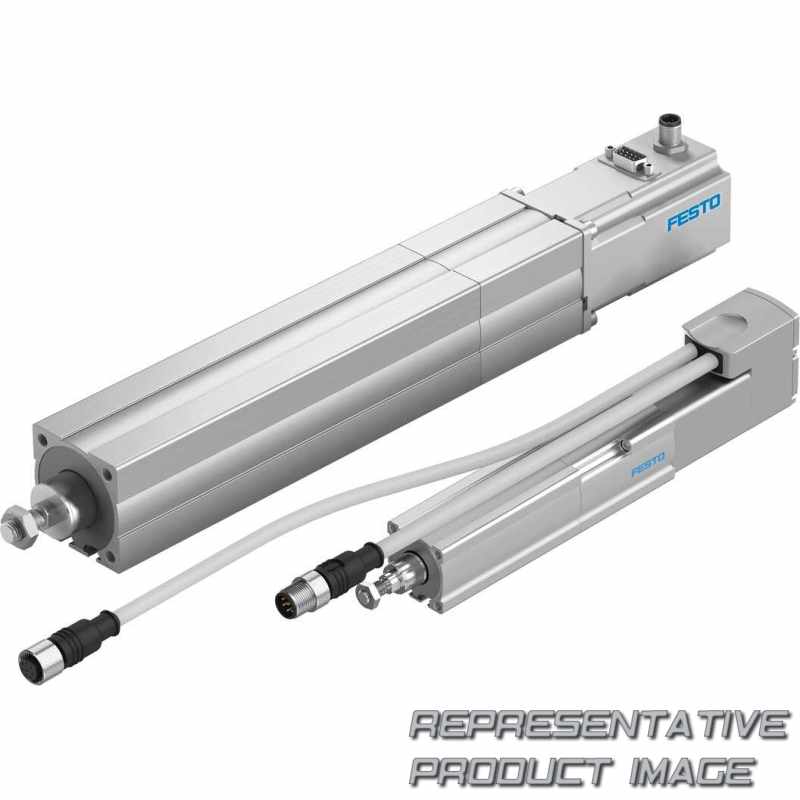

FESTO 1476585 electric drive

Name: 1476585 FESTO
Brand: FESTO
SKU: 717086-en-gbp
Price: 1232.15 GBP
Availability: SoldOut

EPCO-16-200-3P-A-ST-E

£1,232.15

Limited stock only available on quotation

Specifications

Series (EPCO)	Electric cylinder, with spindle drive
Size (16)	16
Stroke [mm] (200)	200
Spindle pitch (3P)	3 mm
Piston rod thread type	Male thread
Piston rod extension	None
Position sensing (A)	For proximity sensor
Motor type (ST)	Stepper motor ST

Measuring unit (E)	Encoder
Brake	None
Cable outlet direction	Standard
Guide unit	None
Connecting cable to motor controller	None
Controller type	None
Bus protocol/activation	None
Switching input/output	None

Material cylinder barrel		Wrought aluminium alloy Smooth anodised
Material spindle nut		Steel
Material housing		Wrought aluminium alloy Smooth anodised
Note on materials		RoHS-compliant
Electrical connector system		Plug
Impact energy in end positions		0 J
Degree of protection		IP40
Storage temperature		-20 °C ... 60 °C
Corrosion resistance class CRC		1 - Low corrosion stress
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive
Nominal motor current		1,4 A
Insulation protection class		B
Repetition accuracy		±0.02 mm
Spindle type		Ball screw drive
Type of motor		Stepper motor
Torsional backlash at piston rod +/-		2 deg
Stepper angle for complete step		1,8 deg
Stroke reserve		0 mm
Size		16

Material spindle		Rolled steel
Material piston rod		High-alloy stainless steel
Material cover		Wrought aluminium alloy Smooth anodised
Type of mounting		Via female thread With accessories
Bending radius, fixed cable		≥ 60 mm
Ambient temperature		0 °C ... 50 °C
Relative air humidity		0 - 85% Non-condensing
LABS (PWIS) conformity		VDMA24364 zone III
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
Approval		RCM trademark c UL us - Recognized (OL)
Nominal operating voltage DC		24 V
Duty cycle		100%
Max. acceleration		10 m/s²
Design		Electric cylinder With ball screw drive
Mounting position		optional
Stepping angle tolerance		±5%
Reversing backlash theoretical		100 µm
Stroke		50 mm ... 200 mm
