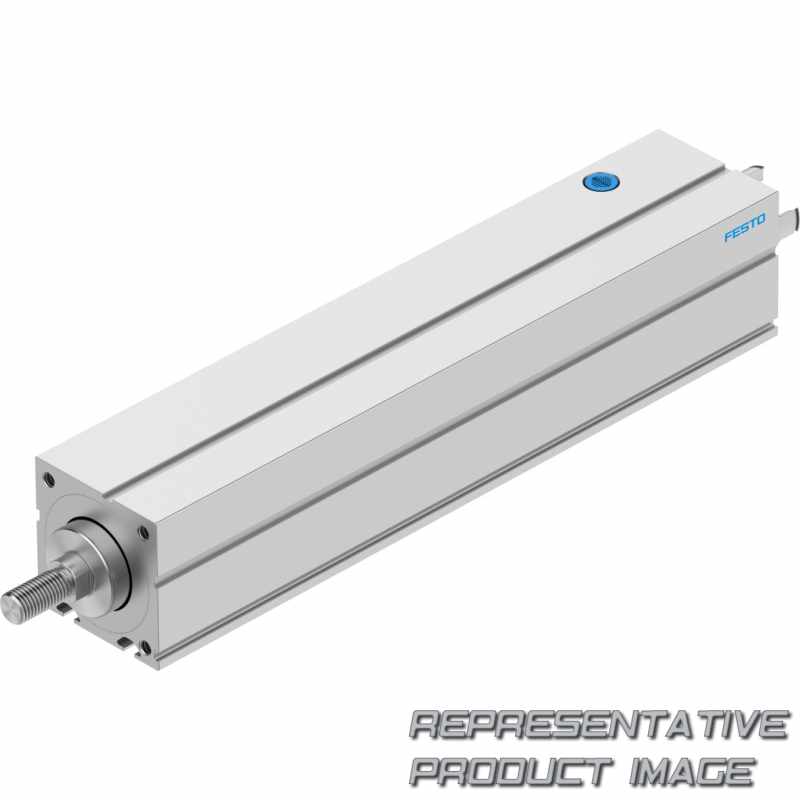

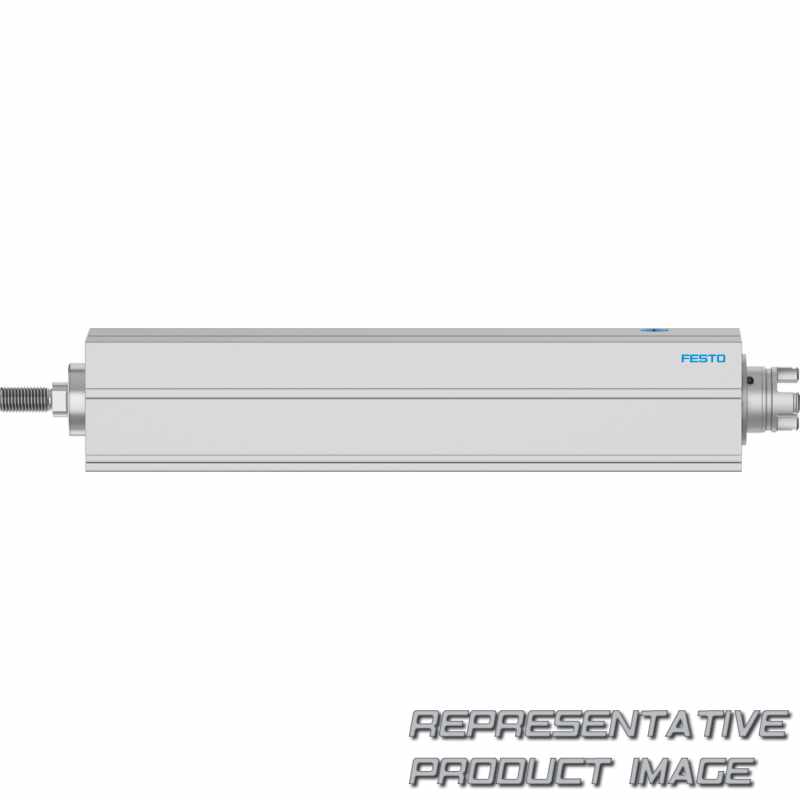

FESTO 5428907 electric cylinder

Name: 5428907 FESTO
Brand: FESTO
SKU: 664289-en-gbp
Price: 576.4 GBP
Availability: InStock

EPCC-BS-60-175-12P-A

£576.40 ~~£615.18~~ -6%

1 pcs. with 1 to 3 days delivery to United States

Specifications

Material spindle		Rolled steel
Material piston rod		High-alloy stainless steel
Note on materials		RoHS-compliant
Additional weight per 10 mm stroke		69 g
Additional moving mass per 10 mm stroke		6,5 g
Mass moment of inertia JO		0,078 kgcm²
Mass moment of inertia JH per metre of stroke		0,152 kgcm²
Reference value effective load, horizontal		120 kg
Max. radial force at drive shaft		230 N
Max. moment My		6,4 Nm
Impact energy in end positions		0,024 J
Degree of protection		IP40
Storage temperature		-20 °C ... 60 °C
Suitability for the production of Li-ion batteries		Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils
Corrosion resistance class CRC		0 - No corrosion stress
Repetition accuracy		±0.02 mm
Max. acceleration		15 m/s²
Symbol		00991941
Design		Electric cylinder With ball screw drive
Type of motor		Stepper motor Servo motor
Mounting position		optional
Spindle pitch		12 mm/U
Reversing backlash theoretical		100 µm
Stroke reserve		0 mm
Size		60

Material spindle nut		Steel
Material housing		Wrought aluminium alloy Smooth anodised
Type of mounting		Via female thread With accessories
Basic weight for 0 mm stroke		1.114 g
Moving mass for 0 mm stroke		305 g
Mass moment of inertia JL per kg of working load		0,036 kgcm²
Reference value effective load, vertical		60 kg
Max. feed force Fx		1.000 N
Max. moment Mz		6,4 Nm
Max. moment Mx		0 Nm
Ambient temperature		0 °C ... 60 °C
Relative air humidity		0 - 95% Non-condensing
Cleanroom class		Class 9 according to ISO 14644-1
LABS (PWIS) conformity		VDMA24364 zone III
Duty cycle		100%
Max. speed		0,6 m/s
Protection against torque/guide		With plain-bearing guide
Spindle type		Ball screw drive
Position detection		Via proximity switch
Piston-rod end		Male thread
Torsional backlash at piston rod +/-		1 deg
Spindle diameter		12 mm
Piston rod thread		M12x1.25
Stroke		175 mm
