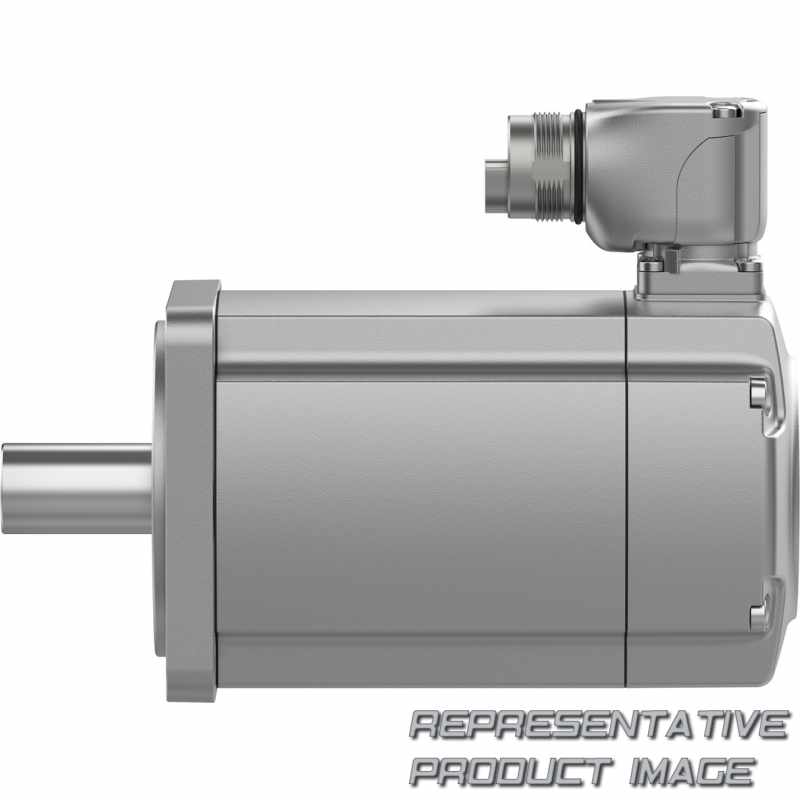

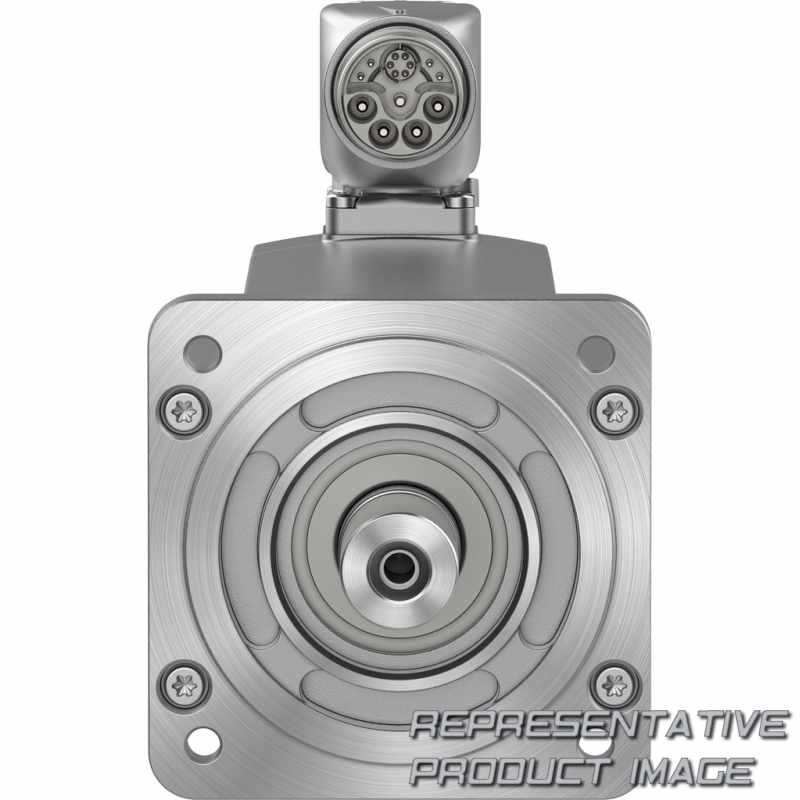

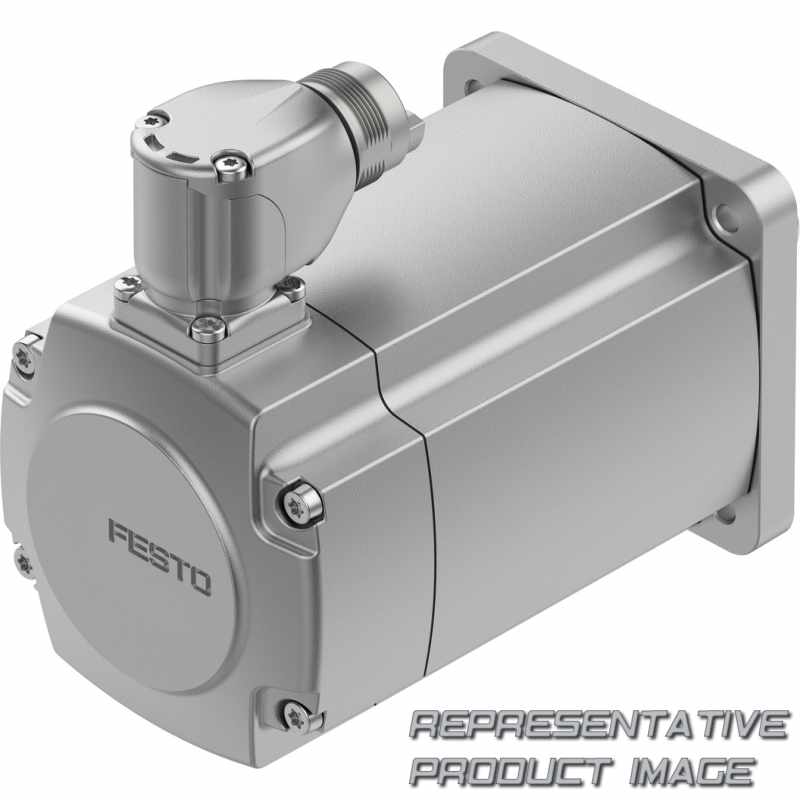

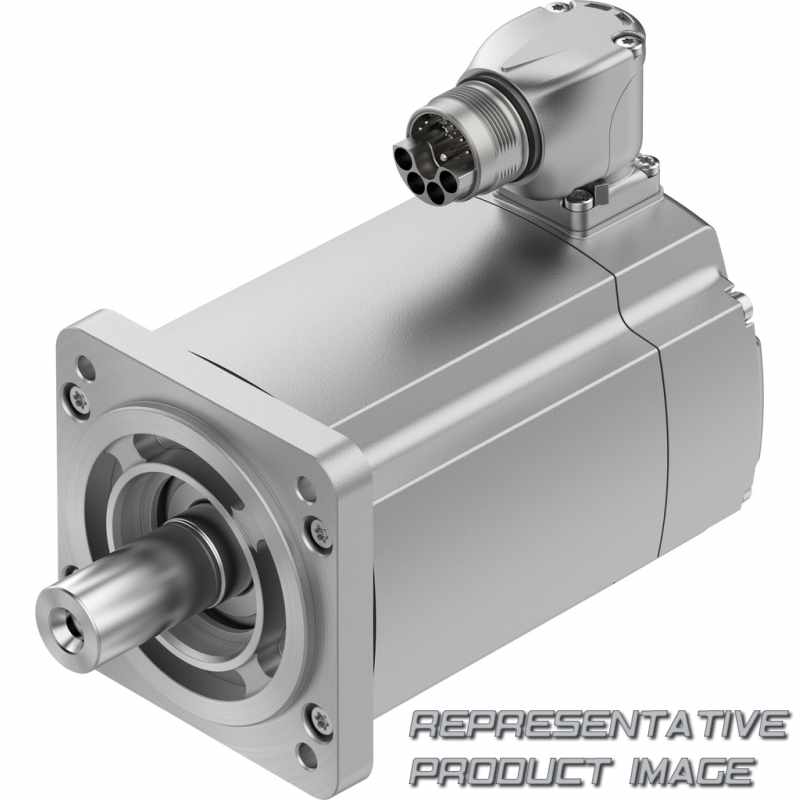

| Mean time to dangerous failure (MTTFd), subcomponent | 380 years, rotor position sensor | ||
| rotor position sensor, system accuracy of angle measurement | -120 arcsec ... 120 arcsec | ||
| rotor position sensor, position values per revolution | 524.288 | ||
| rotor position sensor, DC operating voltage | 5 V | ||
| Rotor position encoder interface | EnDat® 22 | ||
| rotor position sensor, manufacturer designation | EQI 1131 | ||
| Permissible radial shaft load | 620 N | ||
| Product weight | 2.020 g | ||
| Measuring flange | 250 x 250 x 15 mm, steel | ||
| Thermal time constant | 42 min | ||
| Winding cross inductivity Lq (phase) | 12,2 mH | ||
| Phase-phase winding inductance | 16,3 mH | ||
| Voltage constant, phase-to-phase | 34,3 mVmin | ||
| Motor constant | 0,48 Nm/A | ||
| Nominal motor current | 2,7 A | ||
| Nominal power rating of motor | 408 W | ||
| Max. rotational speed | 6.700 rpm | ||
| Peak torque | 2,8 Nm | ||
| Standstill torque | 1,46 Nm | ||
| Type of winding switch | Star inside | ||
| Certificate issuing authority | UL E342973 | ||
| CE mark (see declaration of conformity) | To EU EMC Directive To EU Low Voltage Directive In accordance with EU RoHS Directive | ||
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 | ||
| LABS (PWIS) conformity | VDMA24364 zone III | ||
| Note on materials | RoHS-compliant | ||
| Electrical connection 1, connection pattern | 00995913 | ||
| Electrical connection 1, connector system | M23x1 | ||
| Interface code, motor out | 80P | ||
| Detent torque | <1.0% of the peak torque | ||
| Concentricity, coaxiality, axial runout to DIN SPEC 42955 | N | ||
| Degree of protection | IP40 | ||
| Motor type to EN 60034-7 | IM B5 IM V1 IM V3 | ||
| Rating class as per EN 60034-1 | S1 | ||
| Temperature class as per EN 60034-1 | F | ||
| Relative air humidity | 0 - 90% | ||
| Note on max. installation height | As of 1,000 m: only with derating of -1.0% per 100 m | ||
| Note on ambient temperature | Up to 80°C with derating of -1.5% per degree Celsius |
| Mean time to failure (MTTF), subcomponent | 190 years, rotor position sensor | ||
| Rotor position transducer resolution | 19 bit | ||
| rotor position sensor, DC operating voltage range | 3,6 V ... 14 V | ||
| Rotor position sensor, encoder measuring principle | Inductive | ||
| rotor position sensor, absolute detectable revolutions | 4.10 | ||
| Rotor position sensor | Absolute multi-turn encoder | ||
| Permissible axial shaft load | 120 N | ||
| Total mass moment of inertia of output | 0,597 kgcm² | ||
| Thermal resistance | 0,95 K/W | ||
| Electric time constant | 4,9 ms | ||
| Winding longitudinal inductivity Ld (phase) | 10,2 mH | ||
| Phase-phase winding resistance | 4,93 Ohm | ||
| Standstill torque constant | 0,57 Nm/A | ||
| Peak current | 8,4 A | ||
| Continuous stall current | 3,1 A | ||
| Max. mechanical speed | 14.000 rpm | ||
| Nominal rotary speed | 3.000 rpm | ||
| Nominal torque | 1,3 Nm | ||
| Number of pole pairs | 5 | ||
| Nominal operating voltage DC | 325 V | ||
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK regulations for electrical equipment To UK RoHS instructions | ||
| Approval | RCM trademark c UL us - Recognized (OL) | ||
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 | ||
| Corrosion resistance class CRC | 0 - No corrosion stress | ||
| Pollution degree | 2 | ||
| Electrical connection 1, number of connections/cores | 15 | ||
| Electrical connection 1, connection type | Hybrid plug | ||
| Storage lifetime under nominal conditions | 20.000 h | ||
| Balance quality | G 2.5 | ||
| Note on degree of protection | IP40 for motor shaft without rotary shaft seal IP65 for motor shaft with rotary shaft seal IP67 for motor housing including connection components | ||
| Mounting position | optional | ||
| Temperature monitoring | Digital motor temperature transmission via EnDat® 2.2 | ||
| Max. winding temperature | 155 °C | ||
| Conforms to standard | IEC 60034 | ||
| Storage temperature | -20 °C ... 70 °C | ||
| Max. installation height | 4.000 m | ||
| Ambient temperature | -15 °C ... 40 °C |
