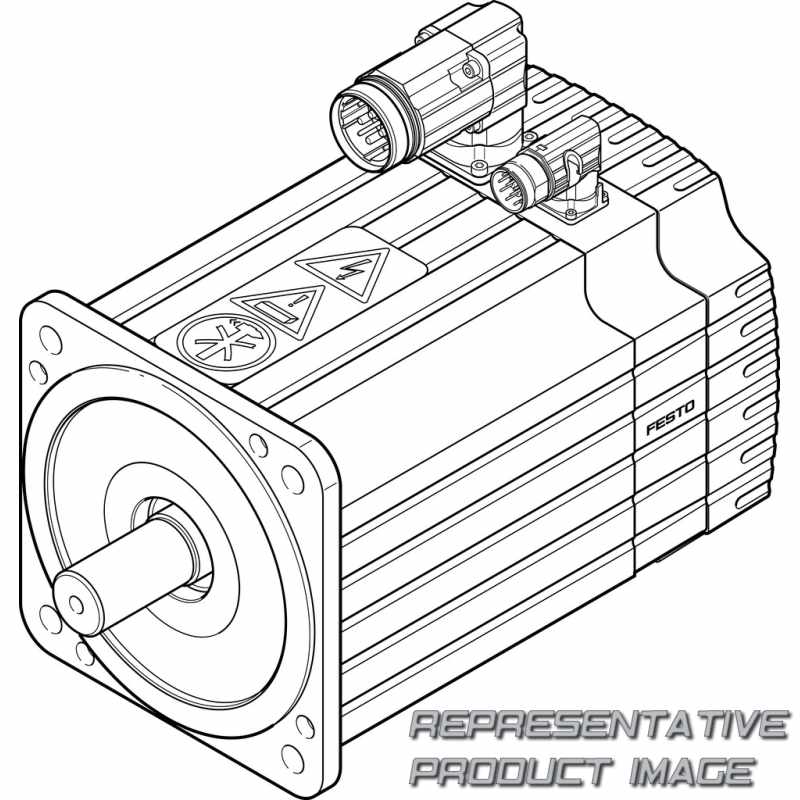

FESTO 1584938 servo motor

Name: 1584938 FESTO
Brand: FESTO
SKU: 833777-en-gbp
Price: 4981.66 GBP
Availability: SoldOut

EMMS-AS-190-M-HS-AR

£4,981.66 ~~£7,887.63~~ -36%

Limited stock only available on quotation

Specifications

Winding (HS)	High voltage, standard
Electrical connection (A)	Angled plug
Measuring unit (R)	Resolver
Brake	None
Degree of protection, electrical system	Standard

Ambient temperature		-10 °C ... 40 °C
Relative air humidity		0 - 90%
Insulation protection class		F
Temperature monitoring		PTC resistor
Electrical connector system		Plug
Corrosion resistance class CRC		2 - Moderate corrosion stress
Approval		RCM trademark c UL us - Recognized (OL)
CE marking (see declaration of conformity)		To UK instructions for EMC To UK regulations for electrical equipment To UK RoHS instructions
Nominal voltage DC		565 V
Number of pole pairs		6
Nominal torque		22,63 Nm
Nominal rotary speed		2.900 rpm
Nominal power rating of motor		6.880 W
Peak current		88,2 A
Voltage constant, phase-to-phase		98,6 mVmin
Phase-phase winding inductance		3,38 mH
Product weight		27.100 g
Permissible radial shaft load		1.080 N
Rotor position encoder interface		SIN/COS analogue signals
Mean time to failure (MTTF), subcomponent		114 years, rotor position sensor
Energy efficiency		ENEFF (CN) / Class 2

Storage temperature		-20 °C ... 60 °C
Conforms to standard		IEC 60034
Rating class as per EN 60034-1		S1
Degree of protection		IP65
Note on materials		RoHS-compliant
LABS (PWIS) conformity		VDMA24364-B2-L
CE mark (see declaration of conformity)		To EU EMC Directive To EU Low Voltage Directive In accordance with EU RoHS Directive
Nominal operating voltage DC		565 V
Type of winding switch		Star inside
Standstill torque		38,77 Nm
Peak torque		120 Nm
Max. rotational speed		4.060 rpm
Nominal motor current		14,24 A
Motor constant		1,589 Nm/A
Phase-phase winding resistance		0,265 Ohm
Total mass moment of inertia of output		77 kgcm²
Permissible axial shaft load		250 N
Rotor position sensor		Resolver
Rotor position sensor, encoder measuring principle		Inductive
Mean time to dangerous failure (MTTFd), subcomponent		228 years, rotor position sensor
