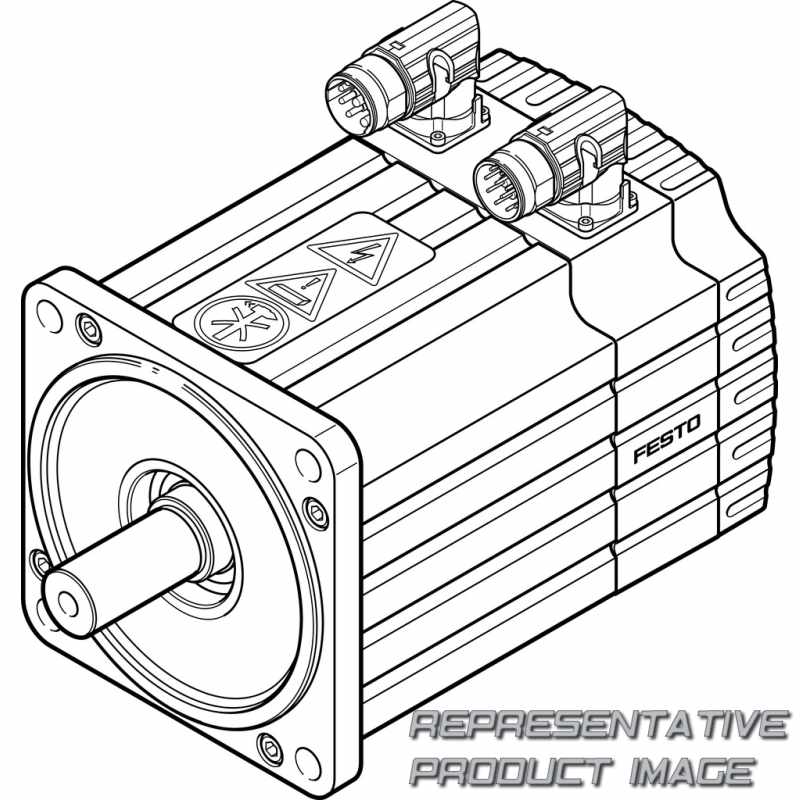

FESTO 1574609 servo motor

Name: 1574609 FESTO
Brand: FESTO
SKU: 709743-en-gbp
Price: 3274.39 GBP
Availability: SoldOut

EMMS-AS-140-S-HS-RRB

£3,274.39 ~~£5,184.45~~ -36%

Limited stock only available on quotation

Specifications

Winding (HS)	High voltage, standard
Electrical connection (R)	Angled connector, adjustable
Measuring unit (R)	Resolver
Brake (B)	With brake
Degree of protection, electrical system	Standard

Energy efficiency		ENEFF (CN) / Class 2
Mean time to failure (MTTF), subcomponent		114 years, rotor position sensor 4469 years, holding brake
Mass moment of inertia of brake		1 kgcm²
Operating voltage DC for brake		24 V
Rotor position sensor, encoder measuring principle		Inductive
Rotor position sensor		Resolver
Permissible axial shaft load		200 N
Total mass moment of inertia of output		9 kgcm²
Phase-phase winding resistance		3,39 Ohm
Motor constant		2,166 Nm/A
Nominal motor current		4,4 A
Max. rotational speed		3.060 rpm
Peak torque		25,6 Nm
Standstill torque		11,2 Nm
Type of winding switch		Star inside
CE marking (see declaration of conformity)		To UK instructions for EMC To UK regulations for electrical equipment To UK RoHS instructions
Approval		RCM trademark c UL us - Recognized (OL)
Corrosion resistance class CRC		2 - Moderate corrosion stress
Electrical connector system		Plug
Temperature monitoring		PTC resistor
Insulation protection class		F
Relative air humidity		0 - 90%
Ambient temperature		-40 °C ... 40 °C

Mean time to dangerous failure (MTTFd), subcomponent		228 years, rotor position sensor
Switching cycles holding brake		5 million idle actuations (without friction work!)
Power consumption, brake		15,6 W
Brake holding torque		18 Nm
Rotor position encoder interface		SIN/COS analogue signals
Permissible radial shaft load		780 N
Product weight		10.640 g
Phase-phase winding inductance		20,5 mH
Voltage constant, phase-to-phase		130,69 mVmin
Peak current		15 A
Nominal power rating of motor		2.600 W
Nominal rotary speed		2.600 rpm
Nominal torque		9,55 Nm
Number of pole pairs		6
Nominal voltage DC		565 V
CE mark (see declaration of conformity)		To EU EMC Directive To EU Low Voltage Directive In accordance with EU RoHS Directive
LABS (PWIS) conformity		VDMA24364-B2-L
Note on materials		RoHS-compliant
Degree of protection		IP54
Rating class as per EN 60034-1		S1
Conforms to standard		IEC 60034
Storage temperature		-20 °C ... 60 °C
