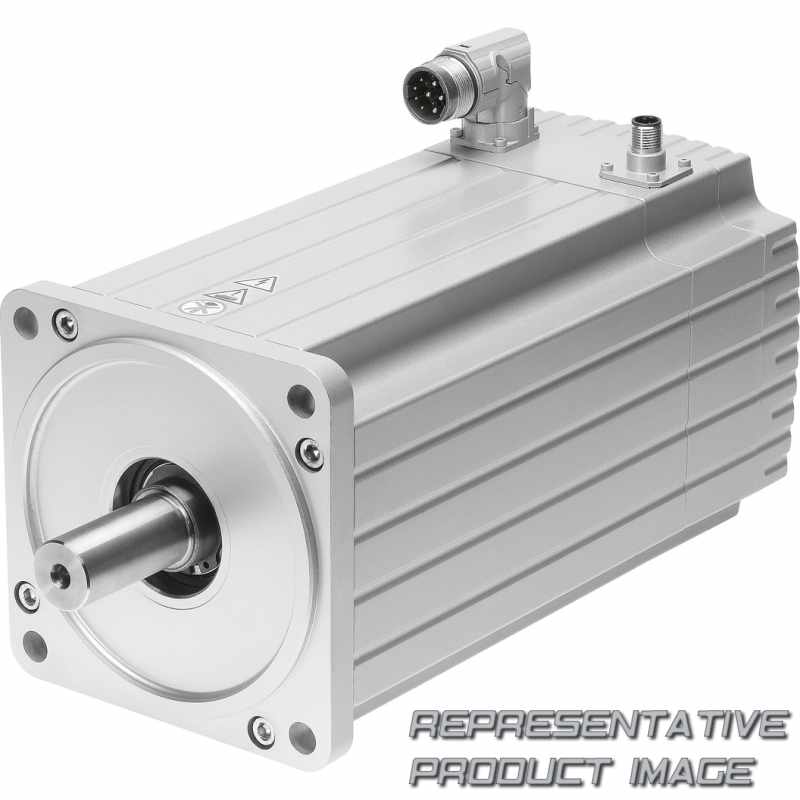

FESTO 550136 servo motor

Name: 550136 FESTO
Brand: FESTO
SKU: 671697-en-gbp
Price: 4158.23 GBP
Availability: InStock

EMMS-AS-140-L-HS-RM

£4,158.23

1 pcs. with 1 to 3 days delivery to United States

Specifications

Winding (HS)	High voltage, standard
Electrical connection (R)	Angled connector, adjustable
Measuring unit (M)	Absolute encoder, multi-turn
Brake	None
Degree of protection, electrical system	Standard

Energy efficiency		ENEFF (CN) / Class 2
Mean time to failure (MTTF), subcomponent		76 years, rotor position sensor
Rotor position sensor, encoder measuring principle		Inductive
Rotor position sensor		Absolute multi-turn encoder
Permissible axial shaft load		200 N
Total mass moment of inertia of output		19,027 kgcm²
Phase-phase winding resistance		1,41 Ohm
Motor constant		2,72 Nm/A
Nominal motor current		7,8 A
Max. rotational speed		2.460 rpm
Peak torque		48,8 Nm
Standstill torque		25,48 Nm
Type of winding switch		Star inside
CE marking (see declaration of conformity)		To UK instructions for EMC To UK regulations for electrical equipment To UK RoHS instructions
Approval		RCM trademark c UL us - Recognized (OL)
Corrosion resistance class CRC		2 - Moderate corrosion stress
Electrical connector system		Plug
Temperature monitoring		PTC resistor
Insulation protection class		F
Relative air humidity		0 - 90%
Ambient temperature		-10 °C ... 40 °C

Mean time to dangerous failure (MTTFd), subcomponent		152 years, rotor position sensor
Rotor position transducer resolution		19 bit
Rotor position encoder interface		EnDat® 22
Permissible radial shaft load		1.060 N
Product weight		16.200 g
Phase-phase winding inductance		13,44 mH
Voltage constant, phase-to-phase		162,39 mVmin
Peak current		20 A
Nominal power rating of motor		4.420 W
Nominal rotary speed		2.000 rpm
Nominal torque		20,05 Nm
Number of pole pairs		6
Nominal voltage DC		565 V
CE mark (see declaration of conformity)		To EU EMC Directive To EU Low Voltage Directive In accordance with EU RoHS Directive
LABS (PWIS) conformity		VDMA24364-B2-L
Note on materials		RoHS-compliant
Degree of protection		IP54
Rating class as per EN 60034-1		S1
Conforms to standard		IEC 60034
Storage temperature		-20 °C ... 60 °C
