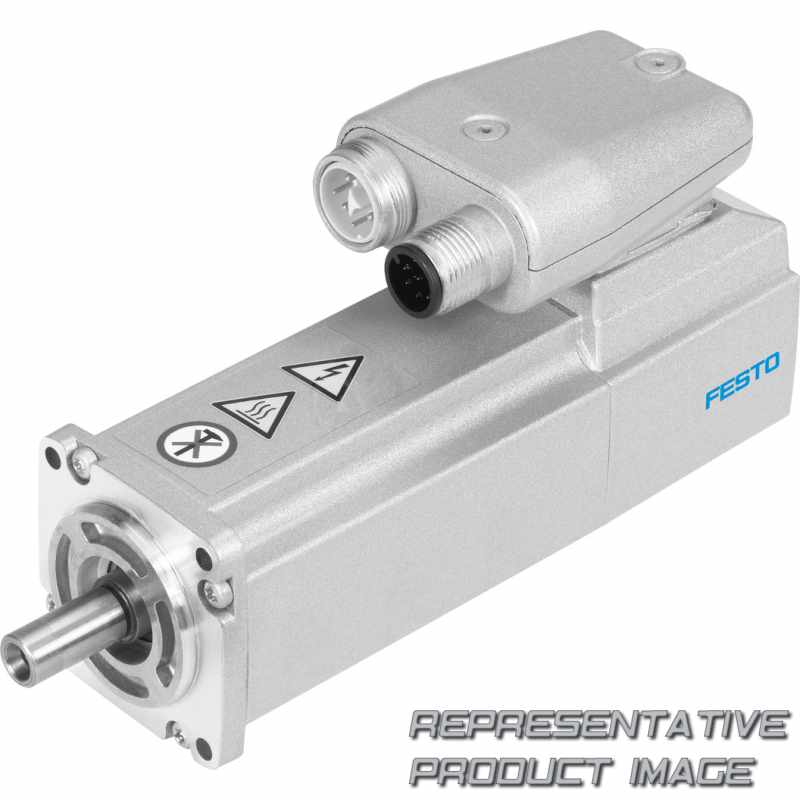

FESTO 2082446 servo motor

Name: 2082446 FESTO
Brand: FESTO
SKU: 662467-en-gbp
Price: 1723.21 GBP
Availability: InStock

EMME-AS-40-M-LV-ASB

£1,723.21

1 pcs. with 1 to 3 days delivery to United States

Specifications

Winding (LV)	Low voltage, speed optimised
Electrical connection (A)	Angled plug
Measuring unit (S)	Absolute encoder, single turn
Brake (B)	With brake

Mean time to dangerous failure (MTTFd), subcomponent		340 years, rotor position sensor
Switching cycles holding brake		5 million idle actuations (without friction work!)
Power consumption, brake		8 W
Brake holding torque		0,4 Nm
Rotor pos. encoder, typ. res.		12 bit
Rotor position sensor, encoder measuring principle		Capacitive
Rotor position sensor		Absolute single-turn encoder
Permissible axial shaft load		12 N
Total mass moment of inertia of output		0,079 kgcm²
Phase-phase winding resistance		8,6 Ohm
Motor constant		0,175 Nm/A
Nominal motor current		1,2 A
Nominal power rating of motor		200 W
Nominal rotary speed		9.000 rpm
Nominal torque		0,21 Nm
Number of pole pairs		2
Nominal voltage DC		360 V
CE mark (see declaration of conformity)		To EU EMC Directive To EU Low Voltage Directive
LABS (PWIS) conformity		VDMA24364 zone III
Note on materials		RoHS-compliant
Degree of protection		IP21
Insulation protection class		F
Relative air humidity		0 - 90%
Ambient temperature		-10 °C ... 40 °C

Mean time to failure (MTTF), subcomponent		371 years, holding brake
Mass moment of inertia of brake		0,014 kgcm²
Operating voltage DC for brake		24 V
Rot. pos. enc., typ. ang. acc.		20 arcmin
Rotor pos. enc., sin/cosin p/r		16
Rotor position encoder interface		HIPERFACE®
Permissible radial shaft load		115 N
Product weight		850 g
Phase-phase winding inductance		4,51 mH
Voltage constant, phase-to-phase		13,2 mVmin
Peak current		6,4 A
Continuous stall current		1,6 A
Max. rotational speed		10.000 rpm
Peak torque		1,4 Nm
Standstill torque		0,35 Nm
Type of winding switch		Star inside
Nominal operating voltage DC		360 V
Approval		RCM trademark c UL us - Recognized (OL)
Corrosion resistance class CRC		0 - No corrosion stress
Electrical connector system		Plug
Rating class as per EN 60034-1		S1
Conforms to standard		IEC 60034
Storage temperature		-20 °C ... 70 °C
