8083579 Festo

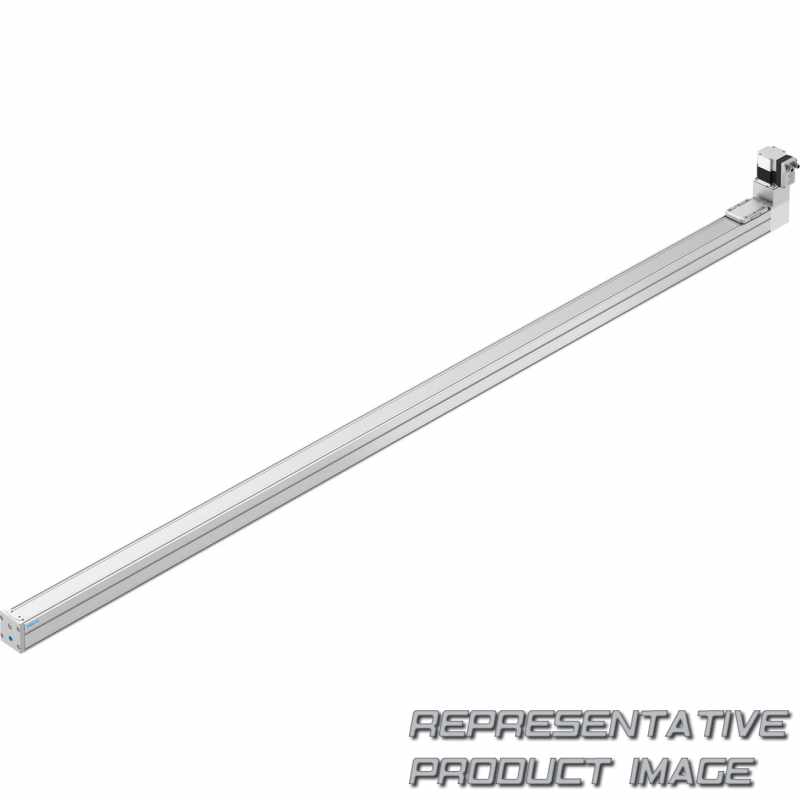

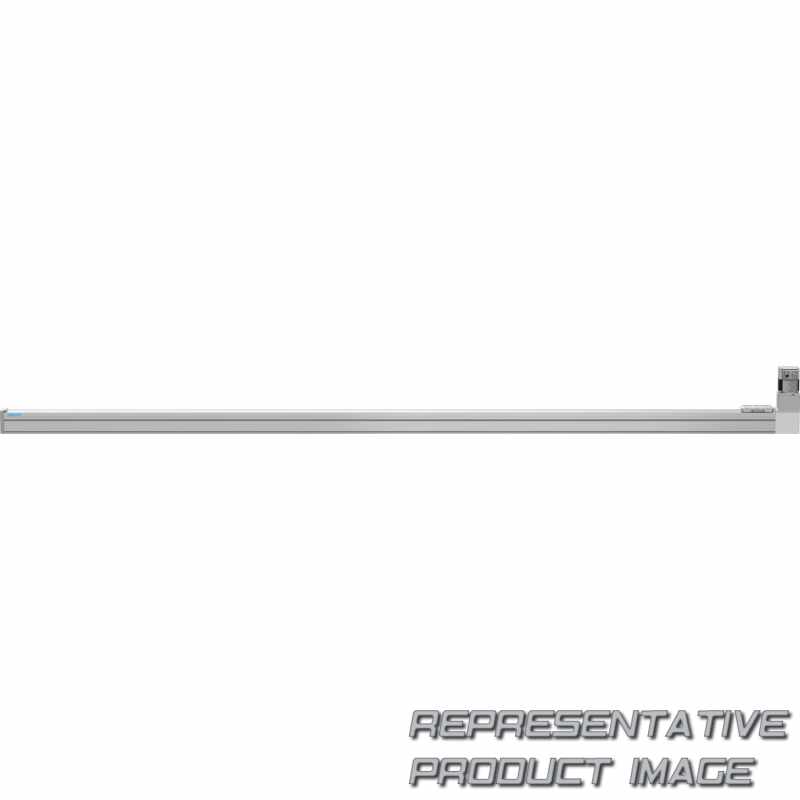

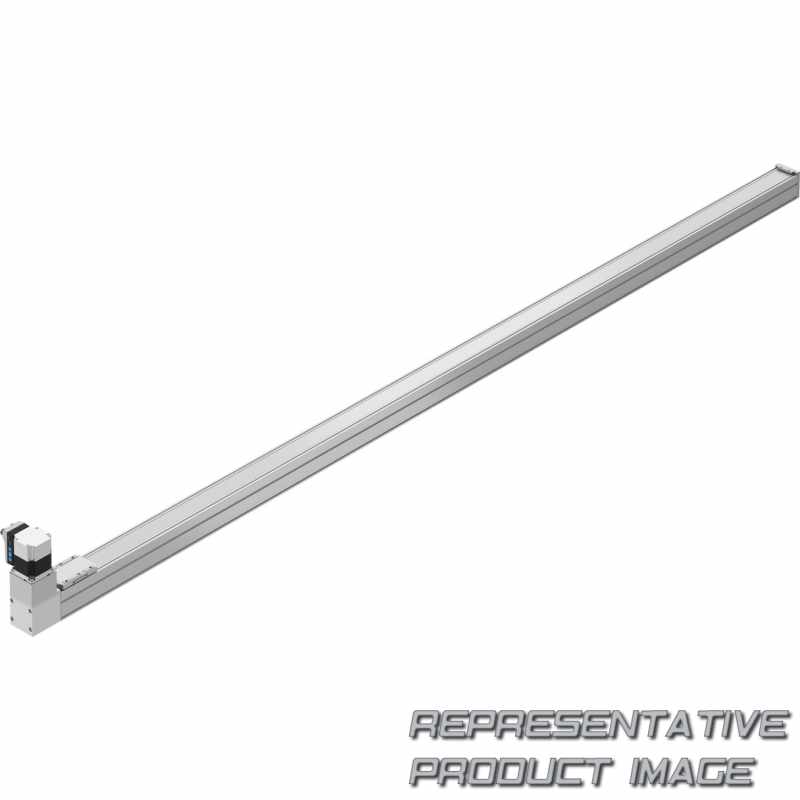

FESTO 8083579 toothed belt axis unit

Name: 8083579 FESTO
Brand: FESTO
SKU: 675515-en-gbp
Price: 1551.55 GBP
Availability: InStock

ELGS-TB-KF-60-2000-ST-M-H1-PLK-AA

£1,551.55

available with 3 to 4 week lead time shipping to United States

Specifications

Series (ELGS)	Gantry axis
Drive system (TB)	Toothed belt
Guide (KF)	Recirculating ball bearing guide
Size (60)	60
Stroke [mm] (2000)	2,000
Motor type (ST)	Stepper motor ST

Controller (M)	Integrated
Control panel (H1)	Integrated
Bus protocol/activation (PLK)	PNP and IO-Link®
End-position sensing (AA)	With integrated end-position sensing
Cable outlet direction	Standard
Electrical accessories	None

Technical data

Material toothed belt		Polychloroprene with glass fibre
Material pulleys		High-alloy stainless steel
Material guide slide		Tempered steel
Material cover tape		Stainless steel strip
Material profile		Anodised wrought aluminium alloy
Logic interface, plug pattern		00992264
Logic interface, connection technology		M12x1, A-coded according to EN 61076-2-101
IO-Link, connection technology		Plugs
Switching logic for outputs		PNP (positive switching)
IO-Link, Data storage required		500 Byte
IO-Link, Service data IN		32-bit force 32-bit position 32-bit speed
IO-Link, Process data length IN		2 bytes
IO-Link, Process data length OUT		2 bytes
IO-Link, Port class		A
IO-Link, Protocol version		Device V 1.1
IO-Link, SIO-Mode support		Yes
Specification logic input		Based on IEC 61131-2, type 1
Number of digital logic outputs 24 V DC		2
Weight of slide		139 g
Moving mass		482 g
Torsional mass moment of inertia It		29.800 mm⁴
Max. feed force Fx		65 N
Max. moment My		31,8 Nm
Max. force Fz		1.800 N
2nd moment of area Iz		542.000 mm⁴
Note on ambient temperature		Power must be reduced by 2% per K at ambient temperatures above 30°C.
Protection class		III
Relative air humidity		0 - 90%
LABS (PWIS) conformity		VDMA24364 zone III
Vibration resistance		Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive
Approval		RCM trademark
Power supply, number of pins/wires		4
Power supply, connection type		Plugs
Rotor position transducer resolution		16 bit
Nominal current		5,3 A
Max. current consumption		5.300 mA
Insulation protection class		B
Features of digital logic outputs		Configurable Not galvanically isolated
Max. speed		1,3 m/s
Ready status indication		LED
Additional functions		User interface Integrated end-position sensing
Rotor position sensor, encoder measuring principle		Magnetic
Referencing		Positive fixed stop block Negative fixed stop block

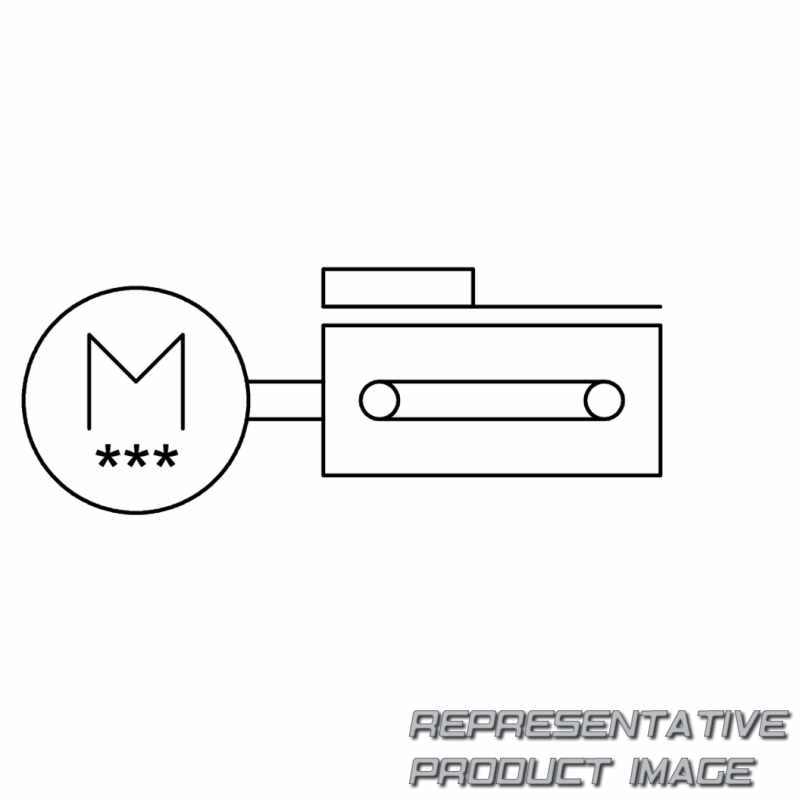

Symbol		00997293
Design		Electromechanical linear axis With toothed belt With integrated drive
Mounting position		Horizontal
Toothed-belt stretch		0,124 %
Size		60
Effective diameter of drive pinion		24,83 mm

Material slide		Die-cast aluminium
Material guide rail		Tempered steel
Material drive cover		Painted die cast aluminium
Note on materials		RoHS-compliant
Material end cap		Painted die cast aluminium
Logic interface, number of pins/wires		8
Logic interface, connection type		Plug
Switching logic for inputs		PNP (positive switching)
Max. cable length		15 m outputs 15 m inputs 20 m with IO-Link® operation
IO-Link, Min. cycle time		1 ms
IO-Link, Process data content IN		1-bit (state device) 1-bit (state move) 1-bit (state in) 1-bit (state out)
IO-Link, Process data content OUT		1-bit (move in) 1-bit (move out) 1-bit (quit error)
IO-Link, Number of ports		1
IO-Link, communication mode		COM3 (230.4 kBaud)
Features of logic input		Configurable Not galvanically isolated
Working range of logic input		24 V
Number of digital logic inputs		2
Product weight		11.555 g
Moving mass for 0 mm stroke		482 g
Feed constant		78 mm/U
Reference value effective load, horizontal		4 kg
Max. moment Mz		31,8 Nm
Max. moment Mx		29,1 Nm
Max. force Fy		600 N
2nd moment of area Iy		441.000 mm⁴
Ambient temperature		0 °C ... 50 °C
Degree of protection		IP40
Storage temperature		-20 °C ... 60 °C
Shock resistance		Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
KC mark		KC-EMV
Power supply, connection pattern		00995989
power supply, connection system		M12x1, T-coded according to EN 61076-2-111
Permissible voltage fluctuations		+/- 15%
Parameterisation interface		IO-Link User interface
Nominal voltage DC		24 V
Max. current digital logic outputs		100 mA
Duty cycle		100%
Repetition accuracy		±0.1 mm
Max. acceleration		6 m/s²
Display		LED
Temperature monitoring		Switch-off for excessive temperature Integrated precise CMOS temperature sensor with analogue output
Rotor position sensor		Absolute single-turn encoder
Position detection		Motor encoder Via proximity switch
Type of motor		Stepper motor
Guide		Recirculating ball bearing guide
Toothed-belt pitch		3 mm
Stroke reserve		0 mm
Working stroke		2.000 mm
