| Material toothed belt | Polychloroprene with glass fibre | ||
| Material pulleys | High-alloy stainless steel | ||
| Material guide slide | Tempered steel | ||
| Material cover tape | Stainless steel strip | ||
| Material profile | Anodised wrought aluminium alloy | ||
| Interface code, actuator | T42 | ||
| Basic weight for 0 mm stroke | 1.775 g | ||
| Weight of slide | 139 g | ||
| Moving mass | 482 g | ||
| Mass moment of inertia JO | 0,88 kgcm² | ||
| Mass moment of inertia JH per metre of stroke | 0,085 kgcm² | ||
| Frictional torque independent of load | 0,194 Nm | ||
| Max. moment Mz | 31,8 Nm | ||
| Max. moment Mx | 29,1 Nm | ||
| Max. force Fz | 1.800 N | ||
| Max. drive torque | 1,49 Nm | ||
| 2nd moment of area Iy | 441.000 mm⁴ | ||
| Degree of protection | IP40 | ||
| Suitability for the production of Li-ion batteries | Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils | ||
| Duty cycle | 100% | ||
| Max. speed | 1,5 m/s | ||
| Functional principle of measuring system | Incremental | ||
| Type of motor | Stepper motor Servo motor | ||
| Guide | Recirculating ball bearing guide | ||
| Toothed-belt pitch | 3 mm | ||
| Stroke reserve | 0 mm | ||
| Working stroke | 600 mm |
| Material slide | Die-cast aluminium | ||
| Material guide rail | Tempered steel | ||
| Material drive cover | Painted die cast aluminium | ||
| Note on materials | RoHS-compliant | ||
| Material end cap | Painted die cast aluminium | ||
| Additional weight per 10 mm stroke | 43 g | ||
| Product weight | 4.326 g | ||
| Moving mass for 0 mm stroke | 482 g | ||
| Feed constant | 78 mm/U | ||
| Mass moment of inertia JL per kg of working load | 1,541 kgcm² | ||
| Torsional mass moment of inertia It | 29.800 mm⁴ | ||
| Max. feed force Fx | 120 N | ||
| Max. moment My | 31,8 Nm | ||
| Max. idle running transfer resistance | 15,6 N | ||
| Max. force Fy | 600 N | ||
| 2nd moment of area Iz | 542.000 mm⁴ | ||
| Ambient temperature | 0 °C ... 50 °C | ||
| Cleanroom class | Class 7 according to ISO 14644-1 | ||
| LABS (PWIS) conformity | VDMA24364 zone III | ||
| Repetition accuracy | ±0.1 mm | ||
| Max. acceleration | 15 m/s² | ||
| Symbol | 00991212 | ||

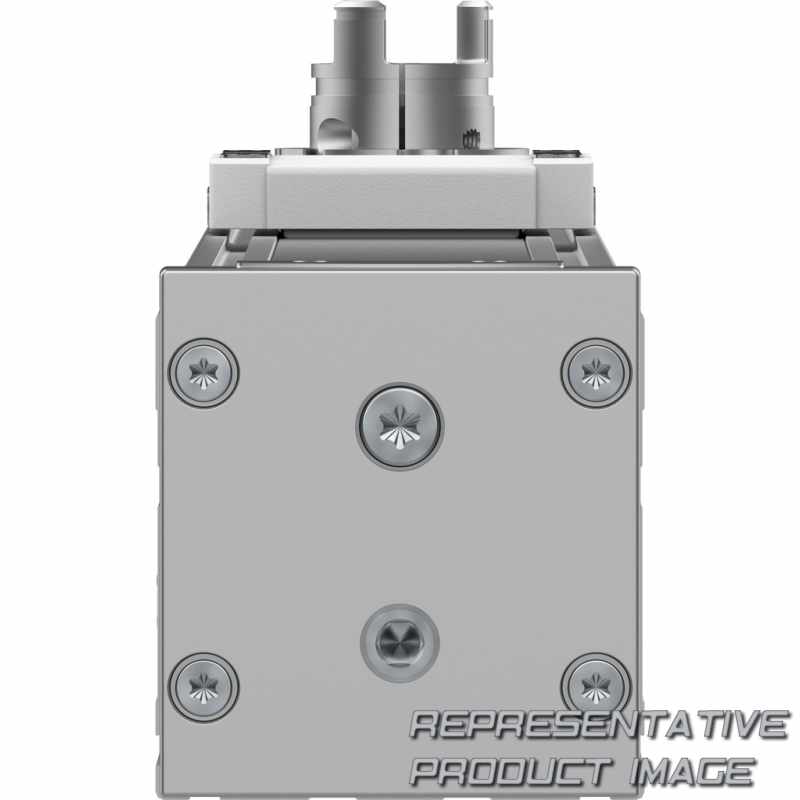

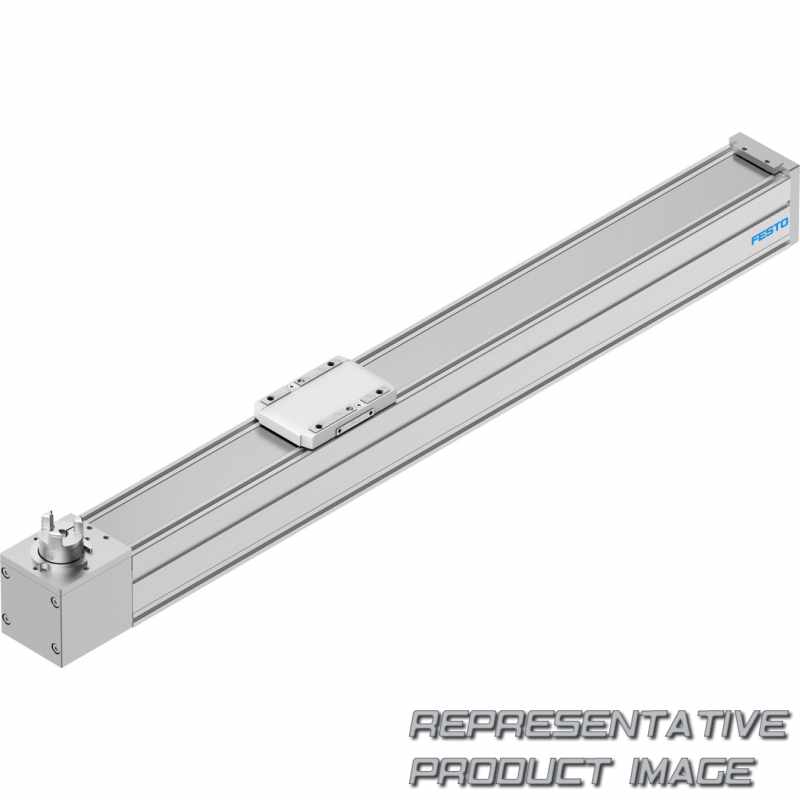

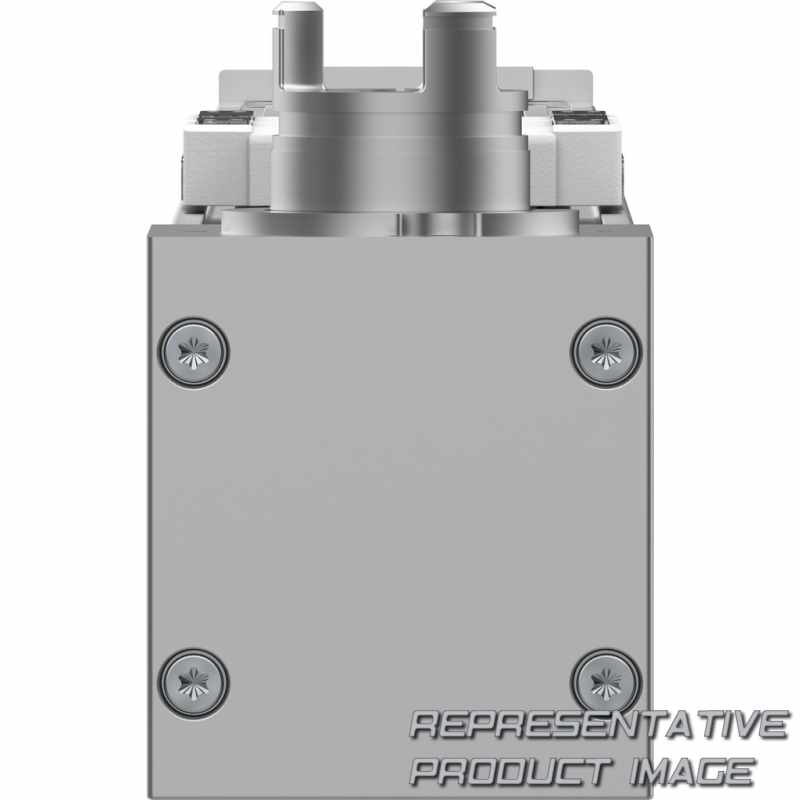

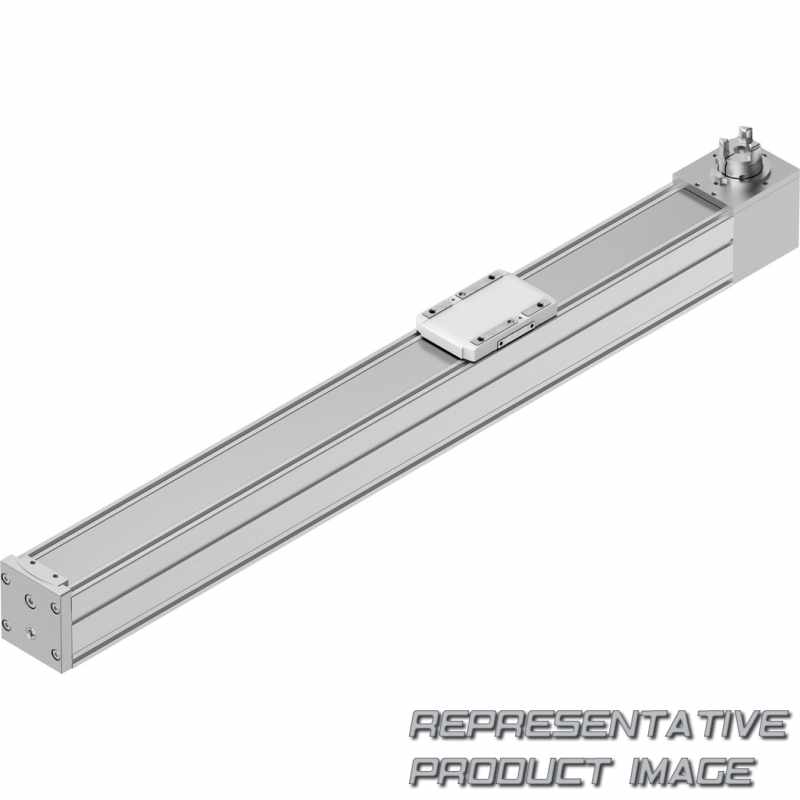

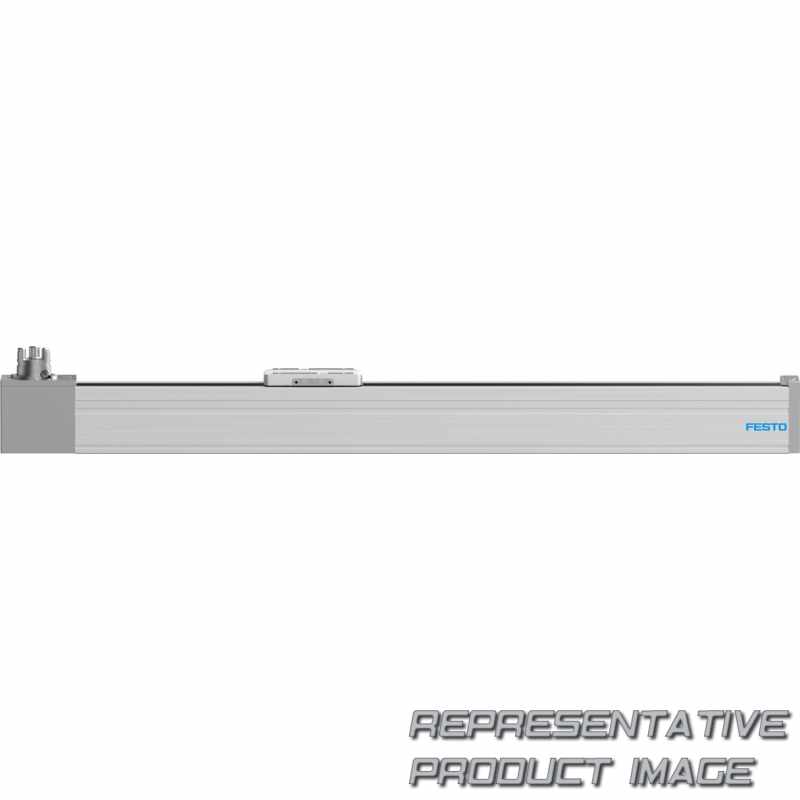

| Design | Electromechanical linear axis With toothed belt | ||
| Mounting position | optional | ||
| Toothed-belt stretch | 0,124 % | ||
| Size | 60 | ||
| Effective diameter of drive pinion | 24,83 mm |
