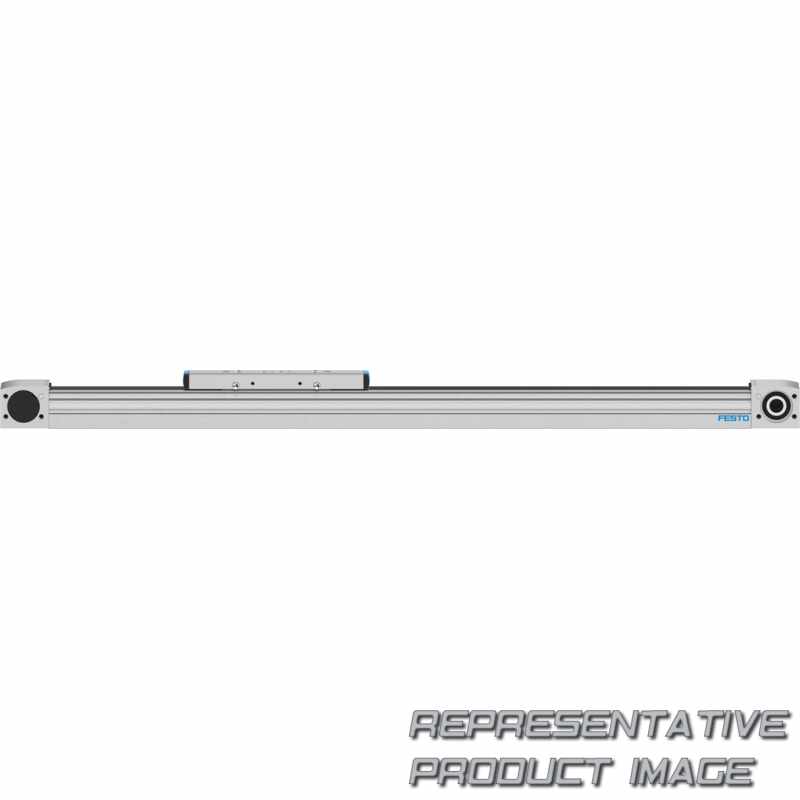

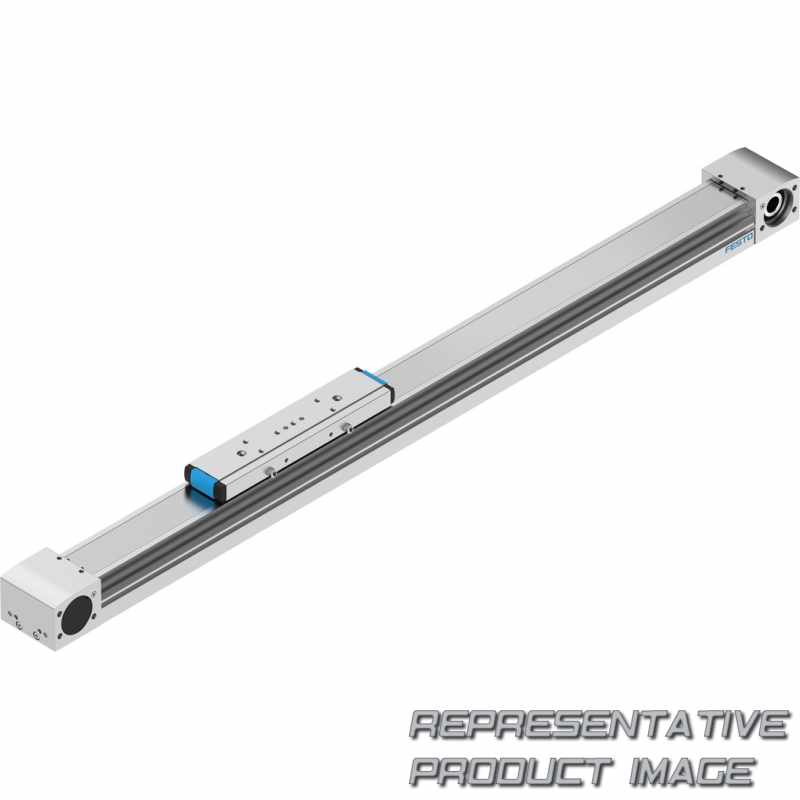

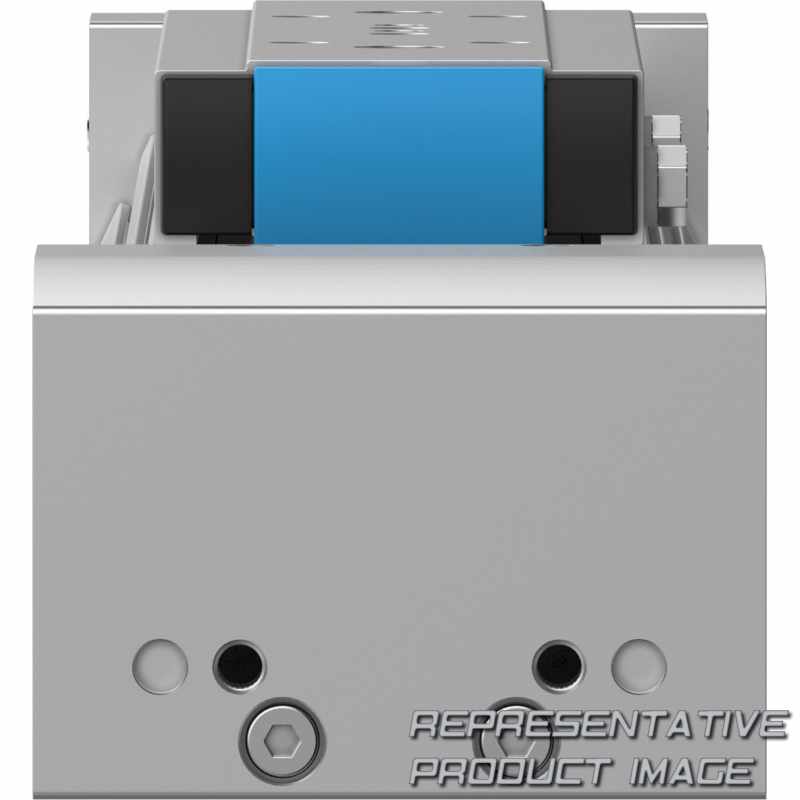

FESTO 8041854 toothed belt axis

Name: 8041854 FESTO
Brand: FESTO
SKU: 689974-en-gbp
Price: 1964.74 GBP
Availability: InStock

ELGA-TB-KF-70-600-0H

£1,964.74

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (ELGA)	Gantry axis
Drive system (TB)	Toothed belt
Guide (KF)	Recirculating ball bearing guide
Size (70)	70
Stroke [mm] (600)	600
Stroke reserve (0h)	0h

Additional slide	None
Protection against particles	Standard
Additional characteristics	None
Displacement encoder	None
Displacement encoder attachment position	None
Material of toothed belt	Chloroprene rubber

Material toothed belt		Polychloroprene with glass filament and nylon coating
Material slide		Wrought aluminium alloy Anodised
Material guide rail		Stainless steel
Material drive cover		Wrought aluminium alloy Anodised
Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Additional weight per 10 mm stroke		39 g
Weight of additional slide		740 g
Lubrication interval dependent on operating distance		1.000 km
Mass moment of inertia JW for additional slide		1,86 kgcm²
Mass moment of inertia JL per kg of working load		2,05 kgcm²
Torsional mass moment of inertia It		103.880 mm⁴
Max. feed force Fx		350 N
Max. moment My		132 Nm
Max. idle running transfer resistance		41,9 N
Max. force Fy		1.500 N
2nd moment of area Iz		459.290 mm⁴
Ambient temperature		-10 °C ... 60 °C
Duty cycle		100%
Max. speed		5 m/s
Functional principle of measuring system		Incremental
Design		Electromechanical linear axis With toothed belt
Mounting position		optional
Toothed-belt stretch		0,213 %
Size		70
Effective diameter of drive pinion		28,65 mm

Material toothed belt clamping piece		Stainless steel casting
Material pulleys		High-alloy stainless steel
Material guide slide		Stainless steel
Material cover tape		Stainless steel strip
Material profile		Wrought aluminium alloy Anodised
Basic weight for 0 mm stroke		2.970 g
Weight of slide		900 g
Feed constant		90 mm/U
Mass moment of inertia JO		2,43 kgcm²
Mass moment of inertia JH per metre of stroke		0,19 kgcm²
Frictional torque independent of load		0,6 Nm
Max. moment Mz		132 Nm
Max. moment Mx		16 Nm
Max. force Fz		1.850 N
Max. drive torque		5,02 Nm
2nd moment of area Iy		146.050 mm⁴
Degree of protection		IP40
Repetition accuracy		±0.08 mm
Max. acceleration		50 m/s²
Type of motor		Stepper motor Servo motor
Guide		Recirculating ball bearing guide
Toothed-belt pitch		3 mm
Stroke reserve		0 mm
Working stroke		600 mm
