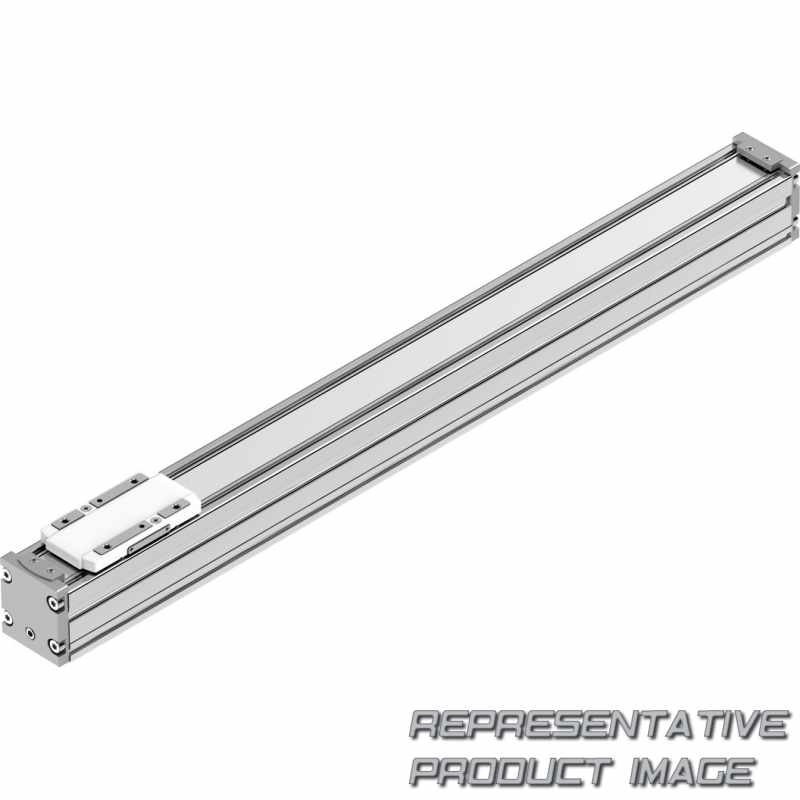

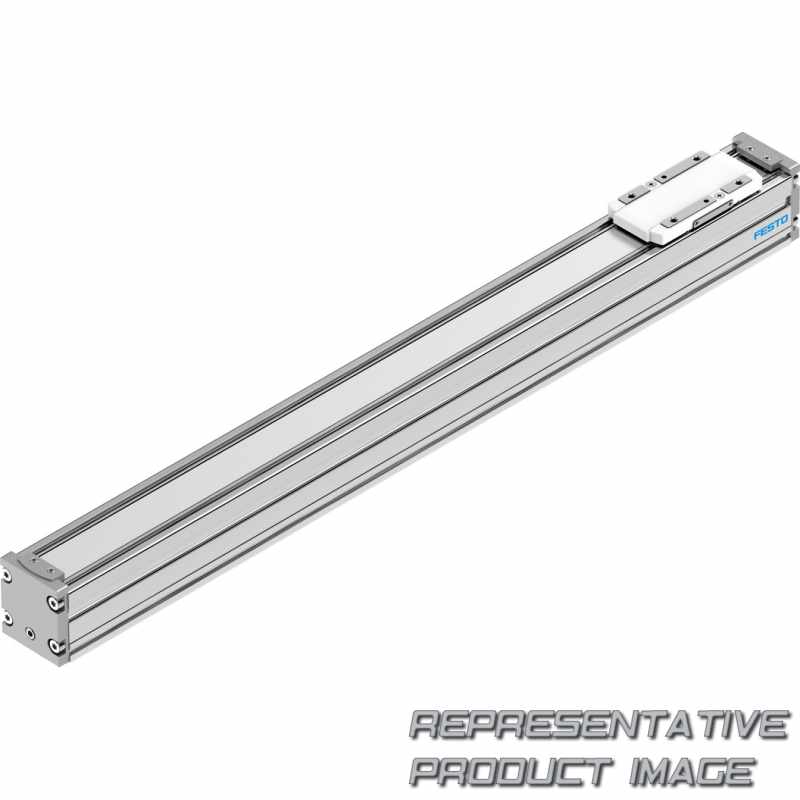

| Material slide | Die-cast aluminium | ||
| Material guide slide | Steel | ||
| Material cover tape | High-alloy stainless steel | ||
| Material profile | Anodised wrought aluminium alloy | ||
| Additional weight per 10 mm stroke | 11 g | ||
| Mz at theoretical life value of 100 km (only guide consideration) | 4 Nm | ||
| Mx at theoretical life value of 100 km (only guide consideration) | 5 Nm | ||
| Fy at theoretical life value of 100 km (only guide consideration) | 552 N | ||
| Torsional mass moment of inertia It | 1.770 mm⁴ | ||
| Max. moment My | 1,1 Nm | ||
| Max. force Fz | 300 N | ||
| 2nd moment of area Iz | 45.000 mm⁴ | ||
| Ambient temperature | 0 °C ... 50 °C | ||
| Cleanroom class | Class 7 according to ISO 14644-1 | ||
| LABS (PWIS) conformity | VDMA24364 zone III | ||
| Duty cycle | 100% | ||
| Max. acceleration | 250 m/s² | ||
| Design | Guidance | ||
| Mounting position | optional | ||
| Size | 32 |
| Material guide rail | Steel | ||
| Material cover | Painted die-cast aluminium | ||
| Note on materials | RoHS-compliant | ||
| Material end cap | Painted die cast aluminium | ||
| Moving mass | 61 g | ||
| My at theoretical life value of 100 km (only guide consideration) | 4 Nm | ||
| Fz at theoretical life value of 100 km (only guide consideration) | 1.104 N | ||
| Displacement force | 2 N | ||
| Max. moment Mz | 1,1 Nm | ||
| Max. moment Mx | 1,3 Nm | ||
| Max. force Fy | 150 N | ||
| 2nd moment of area Iy | 38.000 mm⁴ | ||
| Degree of protection | IP40 | ||
| Suitability for the production of Li-ion batteries | Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils | ||
| Corrosion resistance class CRC | 0 - No corrosion stress | ||
| Max. speed | 1,5 m/s | ||
| Symbol | 00992984 | ||
| Guide | Recirculating ball bearing guide | ||
| Stroke reserve | 0 mm | ||
| Working stroke | 300 mm |
