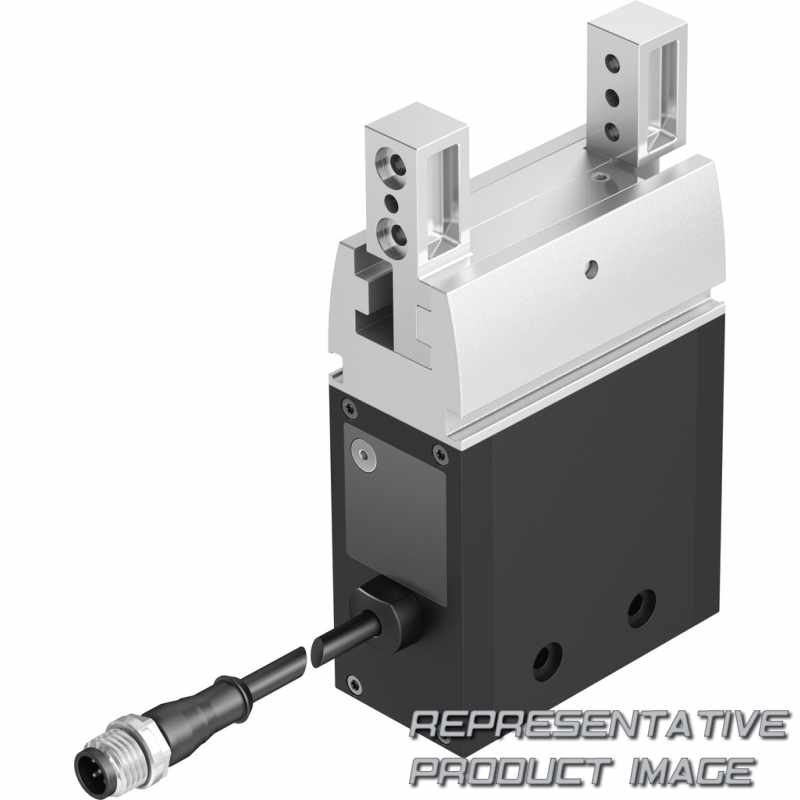

FESTO 8103811 parallel gripper

Name: 8103811 FESTO
Brand: FESTO
SKU: 662530-en-gbp
Price: 1963.8 GBP
Availability: InStock

EHPS-25-A-LK

£1,963.80

2 pcs. with 1 to 3 days delivery to United States

Specifications

Bus protocol/activation (LK)	IO-Link®
Robot connection	None

Material gripper jaws		High-alloy stainless steel
Note on materials		RoHS-compliant
Electrical connection		5-pin Cable with plug M12x1
IO-Link, Data storage required		< 500 Byte
IO-Link, Process data content IN		16-bit (ActualPosition) 16 bit (ErrorNumber) 16 bit (StatusWord)
IO-Link, Process data content OUT		16 bit (ControlWord) 16 bit (GrippingPosition) 8-bit (GrippingForce) 8 bit (GrippingMode) 8 bit (GrippingTolerance) 8 bit (WorkpieceNo)
IO-Link, Number of ports		Device 1
IO-Link, SIO-Mode support		No
IO-Link, Protocol version		Device V 1.1
Max. mass per external gripper finger		230 g
Lubrication interval for guide components		2 MioCyc
Max. torque at gripper My static		16 Nm
Max. force on gripper jaw Fz static		450 N
Ambient temperature		5 °C ... 60 °C
Sound pressure level		≤ 70 dB(A)
LABS (PWIS) conformity		VDMA24364-B2-L
Explosion protection certification outside the EU		EPL Db (GB) EPL Gb (GB)
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive
Approval		RCM trademark
Nominal operating voltage DC		24 V
Max. cycle frequency		0,8 Hz
Type of motor		DC servo motor
Position detection		With Hall sensor With integrated displacement encoder Via IO-Link interface
Conforms to standard		IEC 61010-1
Gripper function		Parallel
Number of gripper jaws		2
Rotationally symmetrical		≤ 0,2 mm
Max. angular gripper jaw backlash ax, ay		0,3 deg
Stroke per gripper jaws		16 mm

Material housing		Anodised wrought aluminium alloy
Type of mounting		Via female thread and centring sleeve Via through-hole and centring sleeve Either:
IO-Link, Device ID		0x000033
IO-Link, Min. cycle time		5 ms
IO-Link, Process data length IN		6 bytes
IO-Link, Process data length OUT		8 bytes
IO-Link, Port class		Device B
IO-Link, communication mode		COM3 (230.4 kBaud)
Protocol		IO-Link®
Product weight		904 g
Max. torque at gripper Mz static		28 Nm
Max. torque at gripper Mx static		28 Nm
Mass moment of inertia		5,24 kgcm²
Degree of protection		IP40
Suitability for the production of Li-ion batteries		Metals with more than 5% copper by mass are excluded from use. Exceptions are printed circuit boards, cables, electrical plug connectors and coils
Corrosion resistance class CRC		1 - Low corrosion stress
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
KC mark		KC-EMV
Permissible voltage fluctuations		+/- 10 %
Max. current consumption		2.000 mA
Ready status indication		LED
Symbol		00992258
Guide		Plain-bearing guide
Design		Worm gear unit T-shape Rack and pinion Electric gripper
Mounting position		optional
Repetition accuracy, gripper		≤ 0,01 mm
Max. gripper jaw backlash Sz		0,04 mm
Max. replacement accuracy		≤ 0,2 mm
Size		25
