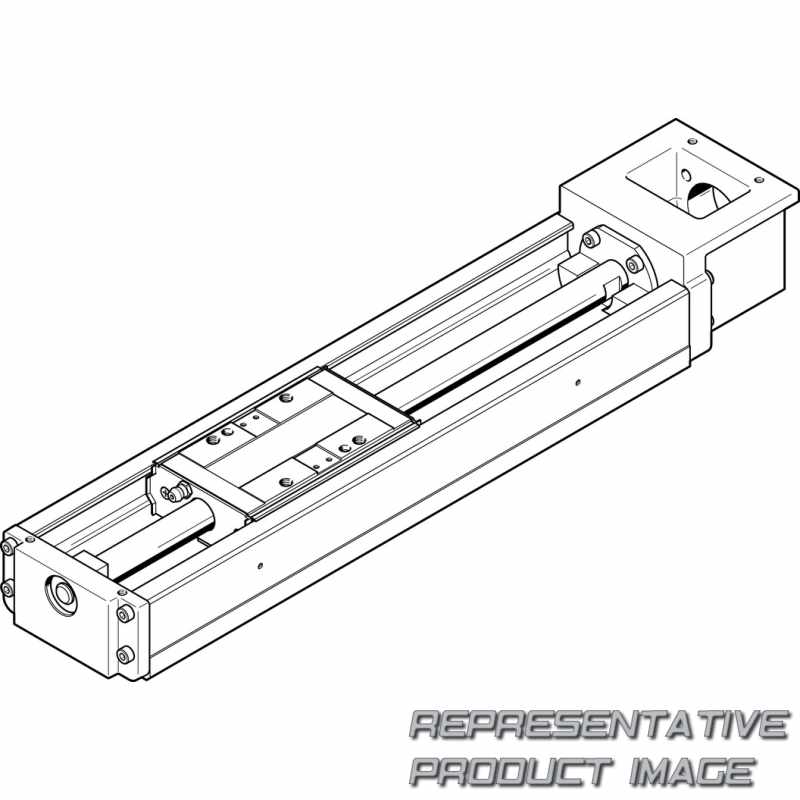

FESTO 562789 electrical slide

Name: 562789 FESTO
Brand: FESTO
SKU: 673928-en-gbp
Price: 5354.99 GBP
Availability: InStock

EGSK-46-800-10P

£5,354.99

1 pcs. with 1 to 3 days delivery to United States

Specifications

Working stroke		800 mm
Reversing backlash theoretical		≤ 20 µm
Spindle pitch		10 mm/U
Guide		Recirculating ball bearing guide
Referencing		Reference switch
Symbol		00991211
Max. speed		0,52 m/s
Corrosion resistance class CRC		0 - No corrosion stress
Ambient temperature		0 °C ... 40 °C
Dynamic basic load rating linear guide		21.747 N
2nd moment of area Iy		240.000 mm⁴
Max. drive torque		0,42 Nm
Max. force Fz		4.919 N
Max. moment My		48,7 Nm
Max. feed force Fx		264 N
Static basic load rating ball screw		6.760 N
Mass moment of inertia JH per metre of stroke		0,39 kgcm²
Feed constant		10 mm/U
Reference value operational performance		5.000 km
Weight of slide		910 g
Weight of additional slide		910 g
Additional weight per 10 mm stroke		127 g
Material end cap		Die-cast aluminium Coated
Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Material slide		Steel
Material spindle		Steel

Size		46
Spindle diameter		15 mm
Mounting position		optional
Design		Electromechanical linear axis With ball screw drive
Spindle type		Ball screw drive
Max. acceleration		20 m/s²
Repetition accuracy		±0.01 mm
Degree of protection		IP10
Dynamic basic load rating fixed bearing		6.600 N
Dynamic basic load rating ball screw		3.140 N
2nd moment of area Iz		1.500.000 mm⁴
Max. force Fy		4.919 N
Max. moment Mx		145 Nm
Max. moment Mz		48,7 Nm
Frictional torque independent of load		0,1 Nm
Static basic load rating linear guide		45.500 N
Mass moment of inertia JO		0,085 kgcm²
Static basic load rating fixed bearing		3.240 N
Moving mass		910 g
Product weight		15.330 g
Basic weight for 0 mm stroke		5.170 g
Type of mounting		Via female thread and dowel pin
Material profile		Coated High-alloy steel
Material drive cover		Die-cast aluminium Coated
Material spindle nut		Steel
