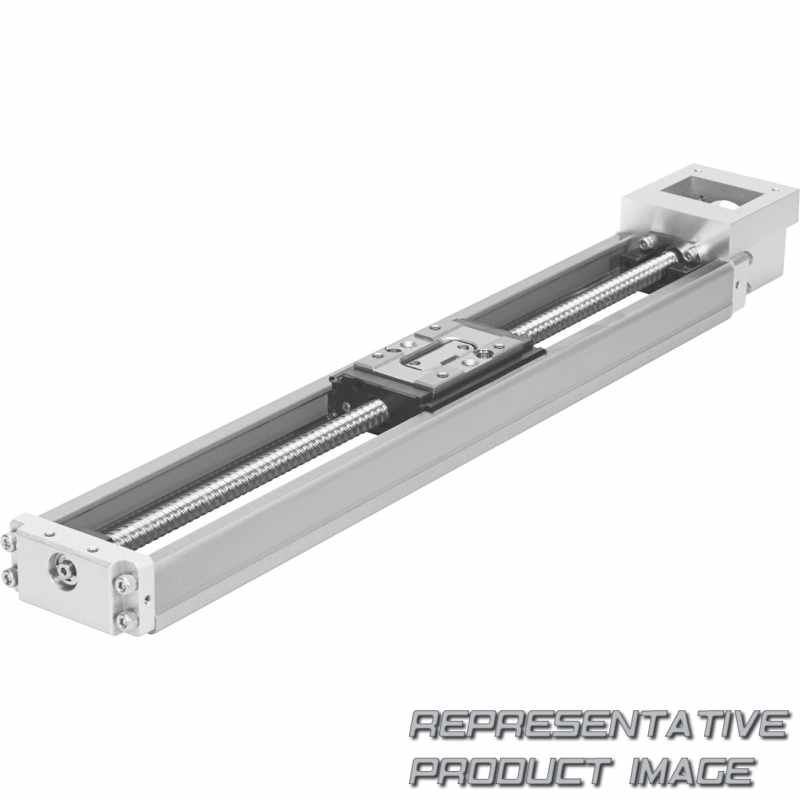

FESTO 562769 electrical slide

Name: 562769 FESTO
Brand: FESTO
SKU: 663563-en-gbp
Price: 1478.06 GBP
Availability: InStock

EGSK-26-100-6P

£1,478.06

1 pcs. with 1 to 3 days delivery to United States

Specifications

Material spindle		Steel
Material slide		Steel
Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Material end cap		Die-cast aluminium Coated
Additional weight per 10 mm stroke		42 g
Weight of additional slide		153 g
Weight of slide		153 g
Reference value operational performance		3.000 km
Feed constant		6 mm/U
Mass moment of inertia JH per metre of stroke		0,032 kgcm²
Static basic load rating ball screw		3.510 N
Max. feed force Fx		116 N
Max. moment My		8,9 Nm
Max. force Fz		1.541 N
Max. drive torque		0,11 Nm
2nd moment of area Iy		17.000 mm⁴
Dynamic basic load rating linear guide		5.746 N
Ambient temperature		0 °C ... 40 °C
Corrosion resistance class CRC		0 - No corrosion stress
Max. speed		0,59 m/s
Symbol		00991211
Referencing		Reference switch
Guide		Recirculating ball bearing guide
Spindle pitch		6 mm/U
Reversing backlash theoretical		≤ 20 µm
Working stroke		100 mm

Material spindle nut		Steel
Material drive cover		Die-cast aluminium Coated
Material profile		High-alloy stainless steel
Type of mounting		Via female thread and dowel pin
Basic weight for 0 mm stroke		780 g
Product weight		1.200 g
Moving mass		153 g
Static basic load rating fixed bearing		1.760 N
Mass moment of inertia JO		0,005 kgcm²
Static basic load rating linear guide		12.150 N
Frictional torque independent of load		0,015 Nm
Max. moment Mz		8,9 Nm
Max. moment Mx		26,2 Nm
Max. force Fy		1.541 N
2nd moment of area Iz		150.000 mm⁴
Dynamic basic load rating ball screw		1.950 N
Dynamic basic load rating fixed bearing		1.380 N
Degree of protection		IP10
Repetition accuracy		±0.01 mm
Max. acceleration		10 m/s²
Spindle type		Ball screw drive
Design		Electromechanical linear axis With ball screw drive
Mounting position		optional
Spindle diameter		8 mm
Size		26
