| Material spindle | Rolled steel | ||
| Material slide | Anodised wrought aluminium alloy | ||
| Material yoke plate | Anodised wrought aluminium alloy | ||
| Material guide rail | Rolled steel | ||
| Note on materials | RoHS-compliant | ||
| Type of mounting | Via female thread Via centring sleeve With accessories Via cylindrical pin | ||
| Guide | Recirculating ball bearing guide | ||
| Spindle pitch | 8 mm/U | ||
| Reversing backlash theoretical | 150 µm | ||
| Size | 32 | ||
| Basic weight for 0 mm stroke | 331 g | ||
| Additional moving mass per 10 mm stroke | 12 g | ||
| Maintenance interval | Life-time lubrication | ||
| Static basic load rating fixed bearing | 1.792 N | ||
| Mass moment of inertia JO | 0,007 kgcm² | ||
| Mass moment of inertia JH per metre of stroke | 0,045 kgcm² | ||
| Static basic load rating ball screw | 3.700 N | ||
| Reference value effective load, horizontal | 6 kg | ||
| Max. radial force at drive shaft | 75 N | ||
| Max. moment My | 3,2 Nm | ||
| Max. force Fz | 991 N | ||
| Dynamic basic load rating ball screw | 2.000 N | ||
| Dynamic basic load rating fixed bearing | 3.795 N | ||
| Degree of protection | IP40 | ||
| Cleanroom class | Class 9 according to ISO 14644-1 | ||
| LABS (PWIS) conformity | VDMA24364 zone III | ||
| Duty cycle | 100% | ||
| Max. speed | 0,5 m/s | ||
| Position detection | Via proximity switch | ||
| Spindle type | Ball screw drive | ||
| Type of motor | Stepper motor Servo motor |
| Material spindle nut | Rolled steel | ||
| Material piston rod | High-alloy stainless steel | ||
| Material housing | Anodised wrought aluminium alloy | ||
| Material guide slide | Rolled steel | ||
| Interface code, actuator | V25 | ||
| Additional weight per 10 mm stroke | 30 g | ||
| Mounting position | optional | ||
| Spindle diameter | 8 mm | ||
| Stroke reserve | 0 mm | ||
| Working stroke | 100 mm | ||
| Product weight | 632 g | ||
| Moving mass for 0 mm stroke | 149 g | ||
| Reference value operational performance | 5.000 km | ||
| Feed constant | 8 mm/U | ||
| Mass moment of inertia JL per kg of working load | 0,016 kgcm² | ||
| Static basic load rating linear guide | 3.880 N | ||
| Reference value effective load, vertical | 6 kg | ||
| Max. feed force Fx | 60 N | ||
| Max. moment Mz | 3,2 Nm | ||
| Max. moment Mx | 3,4 Nm | ||
| Max. force Fy | 991 N | ||
| Dynamic basic load rating linear guide | 2.135 N | ||
| Ambient temperature | 0 °C ... 50 °C | ||
| Sound pressure level | 40 dB(A) | ||
| Suitability for the production of Li-ion batteries | Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils | ||
| Corrosion resistance class CRC | 0 - No corrosion stress | ||
| Repetition accuracy | ±0.015 mm | ||
| Max. acceleration | 15 m/s² | ||
| Symbol | 00992069 | ||
| Referencing | Positive fixed stop block Negative fixed stop block Reference switch | ||

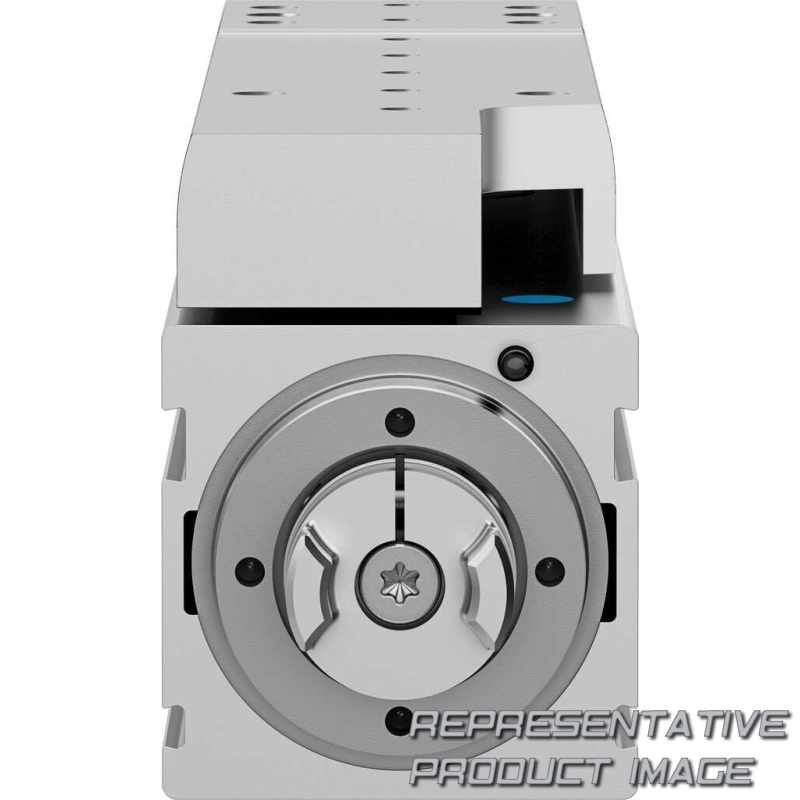

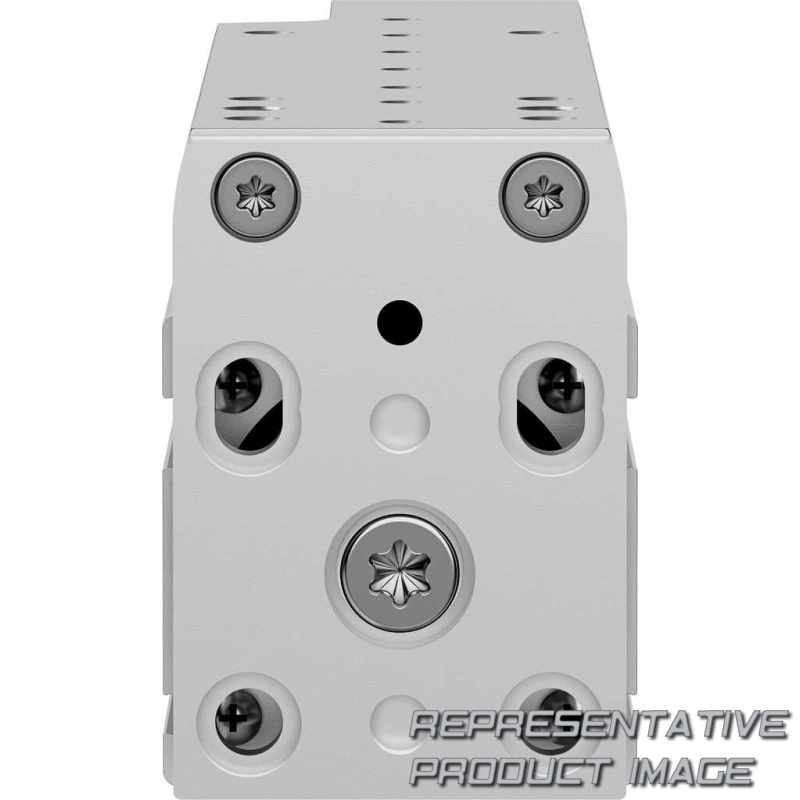

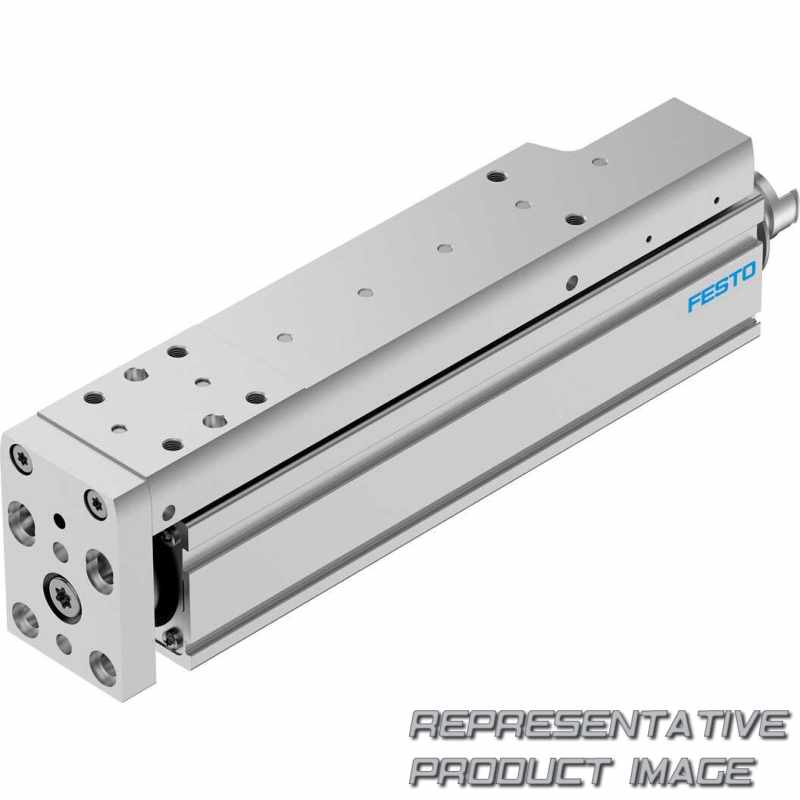

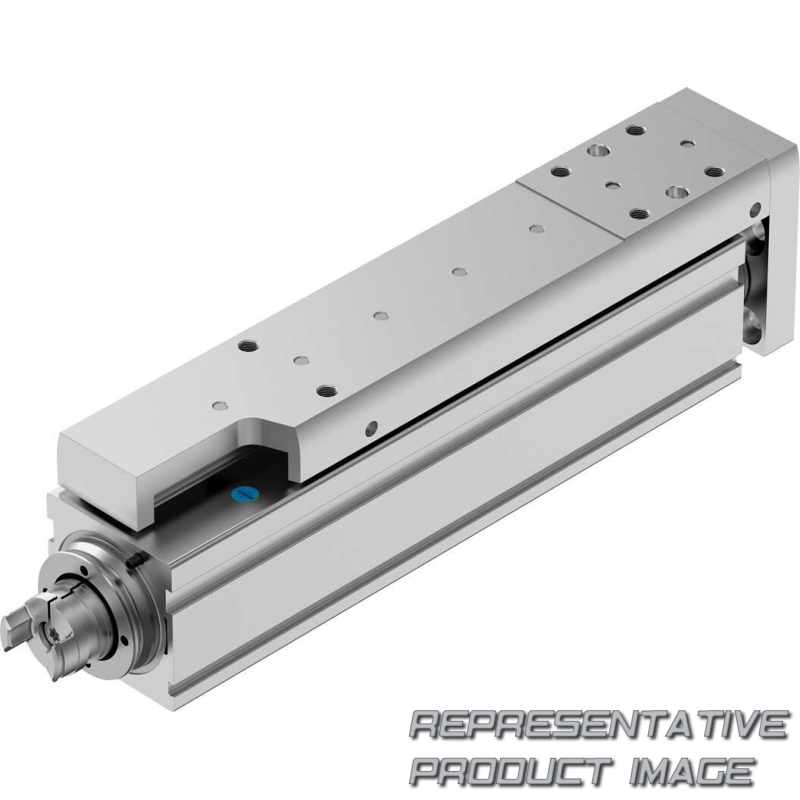

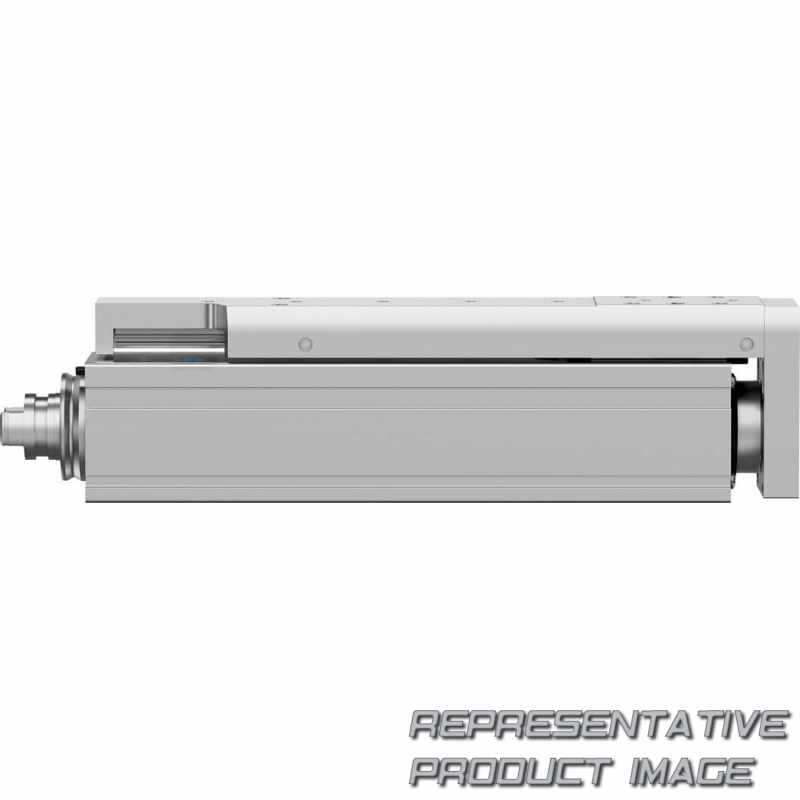

| Design | Electric mini slide With ball screw drive |
