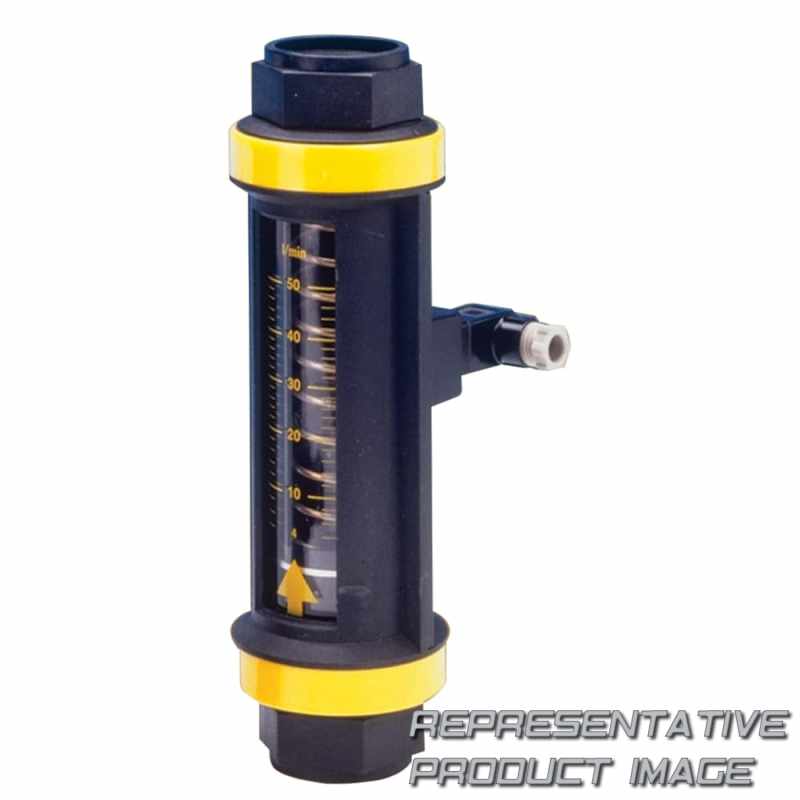

EF7731111120 Parker Hannifin

PARKER EF7731111120

Name: EF7731111120 PARKER
Brand: PARKER
SKU: 579709-en-gbp
Price: 628.85 GBP
Availability: InStock

£628.85 ~~£730.23~~ -13%

2 pcs. with 1 to 3 days delivery to United States

Specifications

The Easiflow line comprises a range of highly economical, inline mechanical flowmeters that provide visual indication of fluid flow in hydraulic systems. Capable of measuring flows ranging from 1 150 L/min. Maximum allowable working pressure: 10 bar.

max. pressure	10 bar
max. flow	2 to 30 l/min

Width	60 mm
Seal	nitrile

Technical data

flow rate		2 to 30 l/min
switch type		no switch
Brand		parker
technology		filtration
product style		flow meter
Port size		1 inch
Operating temperature		5 to 80 °c
minimum fluid temperature		+5 °c
accuracy		+/- 5% fsd
materials of construction		borosilicate glass
body material		glass filled nylon
Length		196 mm
Diameter		60 mm

for fluid type		oil
industry		industrial manufacturing equipment, off-road machinery, industrial & chemical processing
division		hydraulic & industrial process filtration division emea
product type		condition monitor
Operating pressure		10 bar
port type		bsp
maximum fluid temperature		+80 °c
sensing method		variable oriface flowmeter
specifications met		pressure directive
seal material		nitrile
Height		60 mm
Width		60 mm
