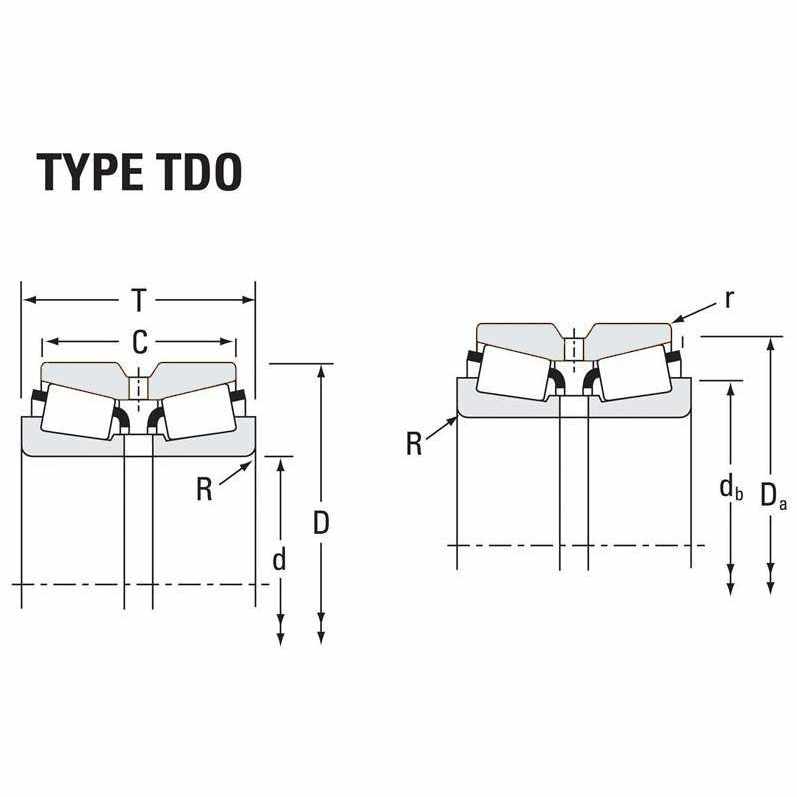

| d - Bore | 304.80 | mm | |
| B - Cone Width | 53.98 | mm | |
| T - Bearing Width across Cones | 123.83 | mm |
| D - Cup Outer Diameter | 412.75 | mm | |
| C - Double Cup Width | 92.08 | mm |
| Series | 109,000 | ||
| Cup Part Number | 109163D | ||
| Bearing Weight | 39.79 | Kg |
| Cone Part Number | EE109120 | ||
| Design Unit | Inch | ||
| Cage Material | Stamped Steel |
