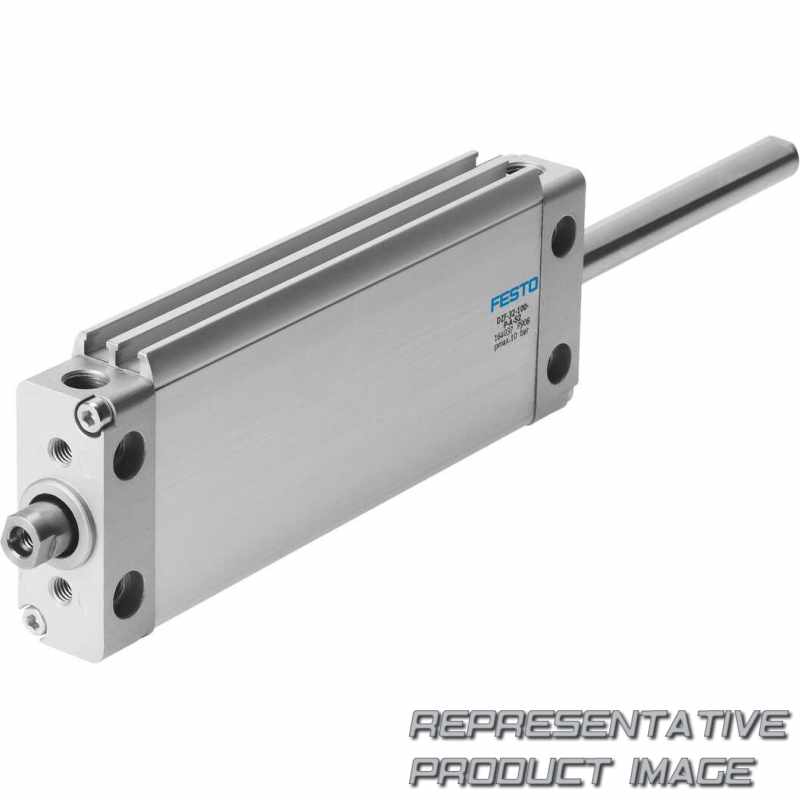

FESTO 164025 flat cylinder

Name: 164025 FESTO
Brand: FESTO
SKU: 725308-en-gbp
Price: 147.78 GBP
Availability: SoldOut

DZF-25-40-P-A-S2

£147.78 ~~£197.03~~ -24%

Limited stock only available on quotation

Specifications

Cushioning (P)	Elastic cushioning rings/plates on both sides
Position sensing (A)	For proximity sensor
Piston rod type (S2)	Through piston rod
Temperature resistance	Standard

Material piston rod		High-alloy stainless steel
Material seals		NBR TPE-U(PU)
Pneumatic connection		M5
Basic weight for 0 mm stroke		168 g
Additional moving mass per 10 mm stroke		6 g
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke		247 N
Max. torque for protection against torsion		0,5 Nm
Corrosion resistance class CRC		2 - Moderate corrosion stress
Variants		Through piston rod
Position detection		Via proximity switch
Mode of operation		Double-acting
Cushioning		Elastic cushioning rings/plates at both ends
Piston diameter		25 mm Equivalent diameter
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Protection against torque/guide		Oval piston

Material housing		Aluminium Smooth anodised
Material cover		Wrought aluminium alloy
Type of mounting		Via female thread With accessories Either:
Additional weight per 10 mm stroke		18 g
Moving mass for 0 mm stroke		40 g
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke		247 N
Ambient temperature		-20 °C ... 80 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Symbol		00991219
Design		Piston Piston rod
Mounting position		optional
Torsional backlash at piston rod +/-		1 deg
Stroke		1 mm ... 200 mm
Operating pressure		1 bar ... 10 bar
