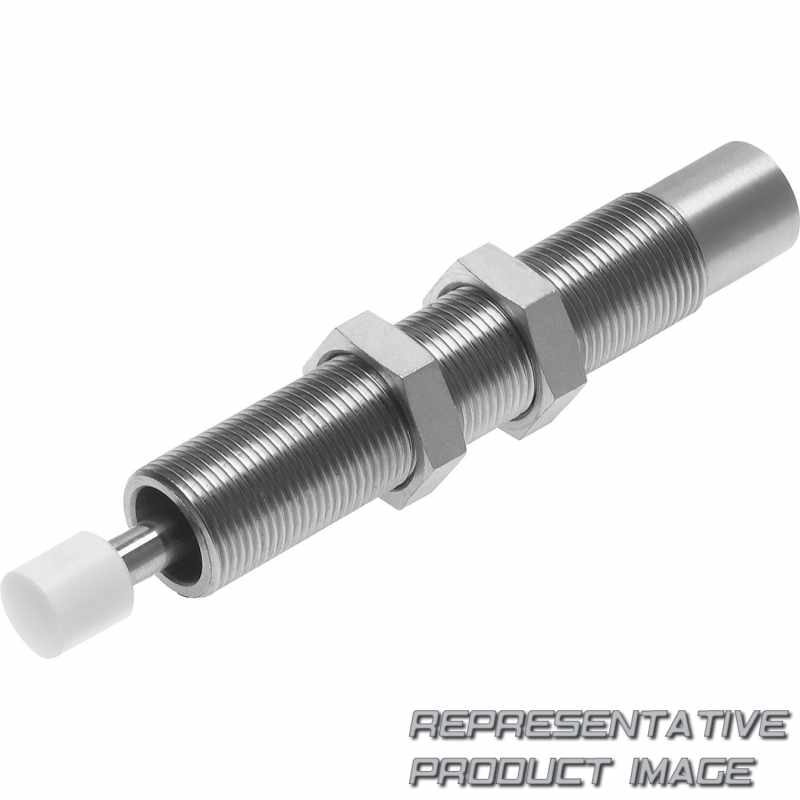

FESTO 548073 shock absorber

Name: 548073 FESTO
Brand: FESTO
SKU: 680338-en-gbp
Price: 116.9 GBP
Availability: InStock

DYSW-8-14-Y1F

£116.90

18 pcs. with 1 to 3 days delivery to United States

Specifications

Geometric characteristics (Y1)	Internal hex
Stop (F)	With fi xed stop

Material piston rod		High-alloy steel
Material seals		NBR
Type of mounting		Via lock nut
Reset force		2,5 N
Max. energy consumption per hour		21.000 J
Max. stop force		500 N
Ambient temperature		-10 °C ... 80 °C
Mode of operation		Single-acting Pushing
Reset time at room temperature		0,2 s
Symbol		00991495
Mounting position		optional
Stroke		14 mm

Material housing		High-alloy steel
Note on materials		RoHS-compliant
Product weight		42 g
Max. residual energy		0,02 J
Max. energy consumption per stroke		4 J
Cushioning length		14 mm
Corrosion resistance class CRC		2 - Moderate corrosion stress
Reset time at min. ambient temperature		1 s
Max. impact speed		3 m/s
Position detection		Without
Cushioning		Self-adjusting Soft characteristic curve
Size		8
