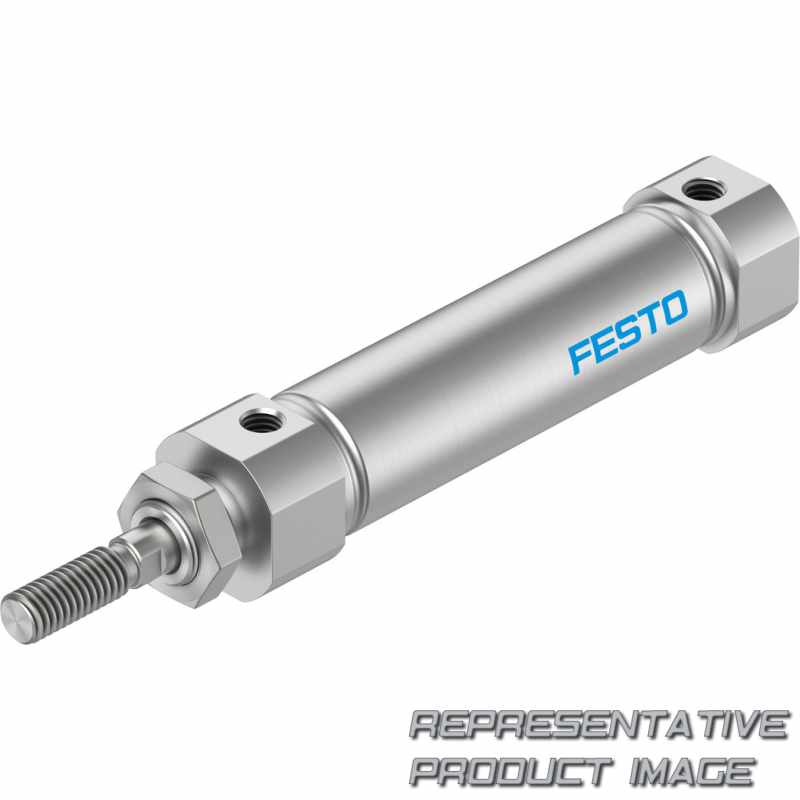

FESTO 5217240 round cylinder

Name: 5217240 FESTO
Brand: FESTO
SKU: 664769-en-gbp
Price: 47.9 GBP
Availability: InStock

DSNU-S-16-40-PPS-A

£47.90

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (DSNU)	Round cylinder, double-acting, based on ISO 6432
Design type (S)	Short
Piston diameter [mm] (16)	16
Stroke [mm] (40)	40
Cushioning (PPS)	Pneumatic cushioning, self-adjusting at both ends
Position sensing (A)	For proximity sensor

Special material properties	None
Cylinder end cap	Undefined
Piston rod thread extension	None
Piston rod thread type	Male thread
K6 - Shortened male piston rod thread	None
Piston rod extension	None

Stroke		40 mm
Piston rod thread		M6
Mounting position		optional
Position detection		Via proximity switch
Operating pressure		0,8 bar ... 10 bar
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC		2 - Moderate corrosion stress
Ambient temperature		-20 °C ... 80 °C
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke		103,7 N
Moving mass for 0 mm stroke		23 g
Basic weight for 0 mm stroke		89,9 g
Type of mounting		With accessories
Note on materials		RoHS-compliant
Material seals		TPE-U(PU)
Material cylinder barrel		High-alloy stainless steel

Piston diameter		16 mm
Cushioning		Self-adjusting pneumatic end-position cushioning
Design		Piston Piston rod Cylinder barrel
Symbol		00991217
Mode of operation		Double-acting
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
LABS (PWIS) conformity		VDMA24364-B2-L
Cushioning length		12 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke		120,6 N
Additional moving mass per 10 mm stroke		2 g
Additional weight per 10 mm stroke		4,6 g
Pneumatic connection		M5
Material cover		Anodised wrought aluminium alloy
Material piston rod		High-alloy stainless steel
