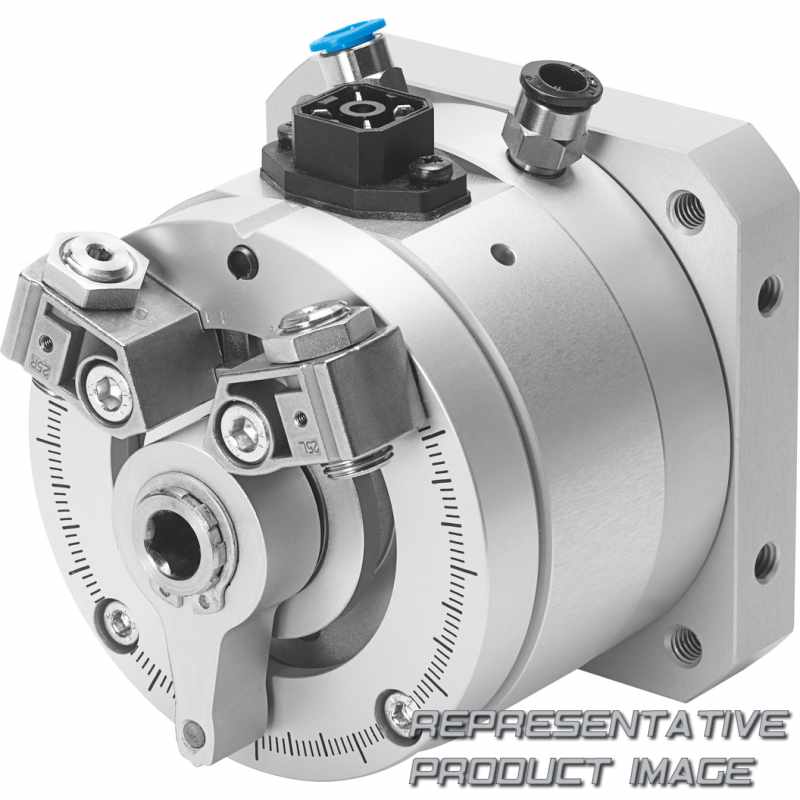

FESTO 561691 semi-rotary drive

Name: 561691 FESTO
Brand: FESTO
SKU: 679995-en-gbp
Price: 1645.44 GBP
Availability: InStock

DSMI-40-270-A-B

£1,645.44

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (DSMI)	Semi-rotary drive with displacement encoder, double-acting
Size [mm] (40)	40
Nominal swivel angle [°] (270)	270

Position sensing (A)	For proximity sensor
Variant (B)	B-series

Material cylinder barrel		Wrought aluminium alloy
Material swivel vane		Reinforced PET
Material measuring system coupling		TPE-U(PU)
Material fixed stop		Steel
Material stop lever		Wrought aluminium alloy Anodised
Pneumatic connection		G1/8
Cable length		30 m
Repetition accuracy Soft Stop intermediate position		+/-2 deg
Repetition accuracy positioning		+/-0.3 deg
Output signal		Analogue
Product weight		3.950 g
Min. mass moment of inertia, vertical		0,006 kgm²
Max. radial force		350 N
Max. mass moment of inertia horizontal		0,12 kgm²
Impact energy in end positions		0,1 J
Vibration resistance to DIN/IEC 68 Part 2-6		Tested to severity level 2
LABS (PWIS) conformity		VDMA24364-B2-L
Continuous shock resistance to DIN/IEC 68 Part 2-82		Tested to severity level 2
Operating medium		Compressed air to ISO 8573-1:2010 [6:4:4]
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive
Connection resistance tolerance		20 %
Max. current consumption		4 mA
Max. operating voltage DC		42 V
Recommended wiper current		< 1 µA
Typical positioning time long stroke, horizontal		0.30/0.55 s
Min. travel speed		50 deg/s
Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)		2 Hz
Operating pressure		0,2 MPa ... 1 MPa
Design		Drive shaft, running in ball bearings Vane
Soft Stop installation position		Horizontal
Cushioning		Elastic cushioning rings/plates at both ends
Piston diameter		40 mm
Stroke reduction at end positions		5 °

Material connector housing		PA-reinforced
Material woodruff key		Steel
Material housing		Wrought aluminium alloy Anodised
Material drive shaft		Nickel-plated steel
Material housing, displacement encoder		Wrought aluminium alloy Anodised
Type of mounting		Via female thread
Electrical connection encoder		4-pin
Repetition accuracy Soft Stop end position		< 0.2 deg
Non-dependent linearity		0
Angle resolution		≤ 0,1 deg
Theoretical torque at 0.6 MPa (6 bar, 87 psi)		20 Nm
Min. mass moment of inertia, horizontal		0,006 kgm²
Max. mass moment of inertia vertical		0,12 kgm²
Max. axial force		120 N
Ambient temperature		-10 °C ... 60 °C
Degree of protection		IP65 To IEC 60529
Corrosion resistance class CRC		0 - No corrosion stress
Note on operating and pilot medium		Lubricated operation not possible
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
Permissible voltage fluctuations		< 1%
Nominal operating voltage DC		10 V
Max. wiper current, short-time		10.000 µA
Mode of operation		Double-acting
Connection resistance		5 kOhm
Typical positioning time short stroke, horizontal		0.25/0.25 s
Max. travel speed		2.000 deg/s
Operating pressure positioning/Soft Stop		4 bar ... 8 bar
Position detection		Via proximity switch Via integrated angular displacement encoder
Functional principle of measuring system		Analogue
Positioning installation position		optional
Swivel angle		0 deg ... 272 deg
Smallest positioning stroke		5° during positioning 15° with Soft Stop
Rotation angle adjustment range		0 deg ... 270 deg
