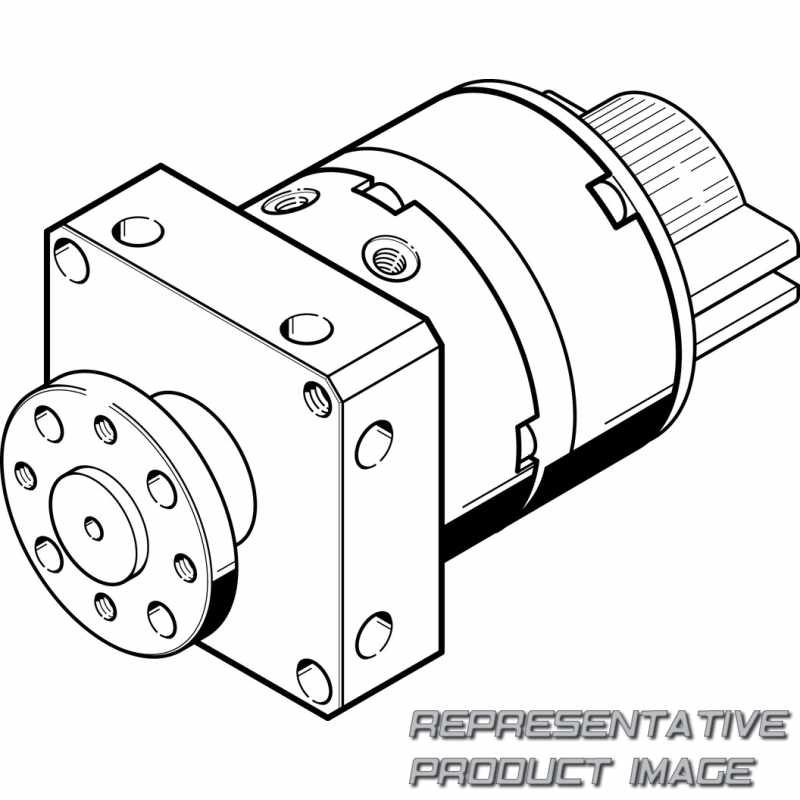

FESTO 185939 semi-rotary drive

Name: 185939 FESTO
Brand: FESTO
SKU: 670763-en-gbp
Price: 479.05 GBP
Availability: InStock

DSM-8-180-P-A-FF-FW

£479.05

2 pcs. with 1 to 3 days delivery to United States

Specifications

Cushioning (P)	Elastic cushioning rings/plates on both sides
Position sensing (A)	For proximity sensor
Adjustable swivel angle (FF)	Adjustable swivel angle
Shaft (FW)	Flanged shaft

Material housing		Aluminium Anodised
Material drive shaft		High-alloy stainless steel
Pneumatic connection		M3
Product weight		162 g
Theoretical torque at 0.6 MPa (6 bar, 87 psi)		0,35 Nm
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)		3 Hz
Symbol		00991265
Design		Vane
Fine adjustment		-5 deg
Swivel angle		0 deg ... 180 deg
Cushioning angle		0 deg

Material seals		TPE-U(PU)
Note on materials		RoHS-compliant
Type of mounting		Via female thread
Permissible mass moment of inertia		0,001 kgm²
Ambient temperature		0 °C ... 60 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Operating pressure		3,5 bar ... 8 bar
Position detection		Via proximity switch
Mode of operation		Double-acting
Mounting position		optional
Rotation angle adjustment range		0 deg ... 180 deg
Size		8
