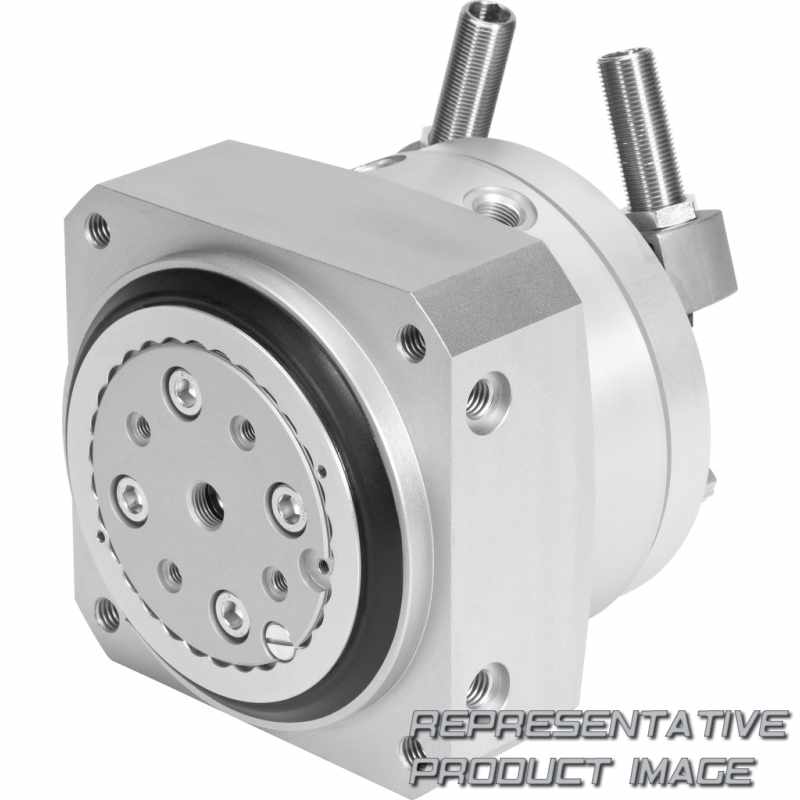

FESTO 1369119 semi-rotary drive

Name: 1369119 FESTO
Brand: FESTO
SKU: 671993-en-gbp
Price: 760.59 GBP
Availability: InStock

DSM-32-270-P1-HD-A-B

£760.59

available with 3 to 7 days delivery to United States

Specifications

Cushioning (P1)	Elastic cushioning components, at both ends, adjustable
Shaft (HD)	Flange shaft for high load torques
Position sensing (A)	For proximity sensor
Variant (B)	B-series

Material housing		Wrought aluminium alloy
Material drive shaft		Steel Nickel-plated
Pneumatic connection		G1/8
Product weight		2.035 g
Theoretical torque at 0.6 MPa (6 bar, 87 psi)		10 Nm
Max. axial force		450 N
Corrosion resistance class CRC		0 - No corrosion stress
Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)		1,5 Hz
Symbol		00991265
Design		Vane
Fine adjustment		-6 deg
Cushioning		Elastic cushioning rings/pads at both ends with fixed stop
Rotation angle adjustment range		0 deg ... 246 deg
Size		32

Material seals		TPE-U(PU)
Note on materials		RoHS-compliant
Type of mounting		Via female thread
Permissible mass moment of inertia		0,075 kgm²
Max. radial force		550 N
Ambient temperature		-10 °C ... 60 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Operating pressure		2 bar ... 10 bar
Position detection		Via proximity switch
Mode of operation		Double-acting
Mounting position		optional
Swivel angle		0 deg ... 246 deg
Cushioning angle		6,5 deg
