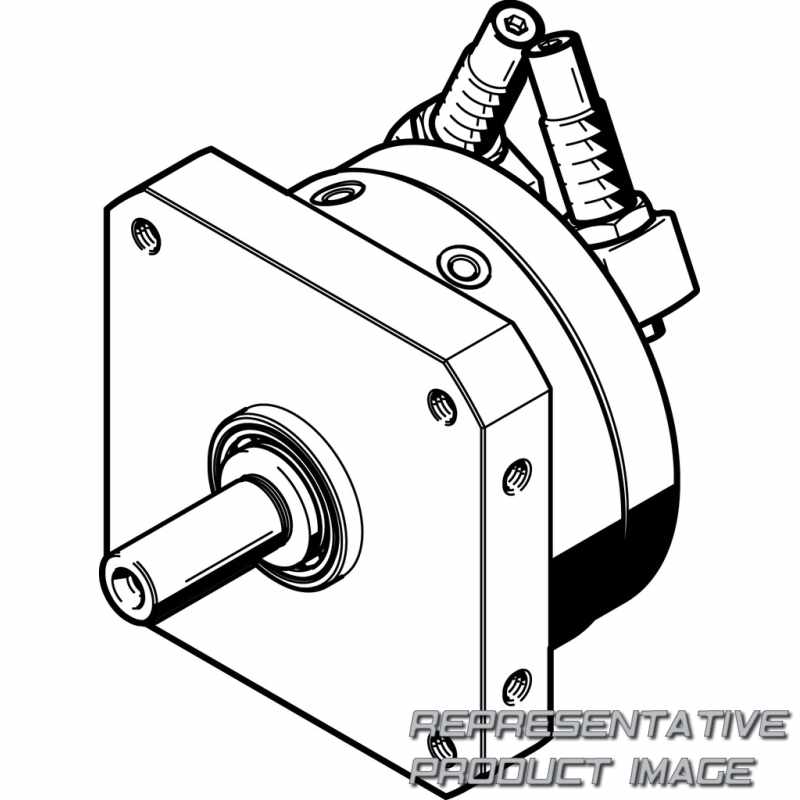

FESTO 547580 semi-rotary drive

Name: 547580 FESTO
Brand: FESTO
SKU: 683973-en-gbp
Price: 550.47 GBP
Availability: InStock

DSM-25-270-CC-A-B

£550.47

3 pcs. with 1 to 3 days delivery to United States

Specifications

Cushioning (CC)	Shock absorber at both ends, self-adjusting
Shaft	Spigot shaft
Position sensing (A)	For proximity sensor
Variant (B)	B-series

Material housing		Wrought aluminium alloy
Material drive shaft		Steel Nickel-plated
Pneumatic connection		M5
Product weight		710 g
Theoretical torque at 0.6 MPa (6 bar, 87 psi)		5 Nm
Max. axial force		50 N
Corrosion resistance class CRC		0 - No corrosion stress
Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)		1 Hz
Symbol		00991265
Design		Vane
Fine adjustment		-3 deg
Cushioning		Shock absorber at both ends
Rotation angle adjustment range		0 deg ... 246 deg
Size		25

Material seals		TPE-U(PU)
Note on materials		RoHS-compliant
Type of mounting		Via female thread
Permissible mass moment of inertia		0,03 kgm²
Max. radial force		120 N
Ambient temperature		-10 °C ... 60 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Operating pressure		1,5 bar ... 10 bar
Position detection		Via proximity switch
Mode of operation		Double-acting
Mounting position		optional
Swivel angle		0 deg ... 246 deg
Cushioning angle		10 deg
