FESTO 556526 swivel/linear unit

Name: 556526 FESTO
Brand: FESTO
SKU: 666700-en-gbp
Price: 2050.39 GBP
Availability: SoldOut

DSL-32-100-270-CC-A-S20-B

£2,050.39

Limited stock only available on quotation

Specifications

Series (DSL)	Swivel linear unit, double-acting
Size (32)	32
Stroke [mm] (100)	100
Swivel angle (270)	270°
End-position cushioning (CC)	Shock absorber at both ends

Material piston rod		Tempered steel
Material seals		TPE-U(PU)
Pneumatic connection		G1/8
Additional weight per 10 mm stroke		109 g
Product weight		3.000 g
Theoretical torque at 0.6 MPa (6 bar, 87 psi)		10 Nm
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke		294 N
Ambient temperature		-10 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Repetition accuracy		0,1 deg
Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)		0,7 Hz
Operating pressure		2,5 bar ... 8 bar
Variants		Through, hollow piston rod
Position detection		Via proximity switch
Mode of operation		Double-acting
Mounting position		optional
Swivel angle		0 deg ... 246 deg
Stroke		100 mm
Cushioning angle		12 deg

Material housing		Wrought aluminium alloy Smooth anodised
Material cover		Wrought aluminium alloy Anodised
Type of mounting		Clamped in T-slot Via male thread Either:
Basic weight for 0 mm stroke		3.000 g
Permissible mass moment of inertia		0,002 kgm²
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke		422,5 N
Dynamic load torque		0,8 Nm
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Rotary angle backlash		2 deg
Max. impact speed		0,5 m/s
Protection against torque/guide		With plain-bearing guide

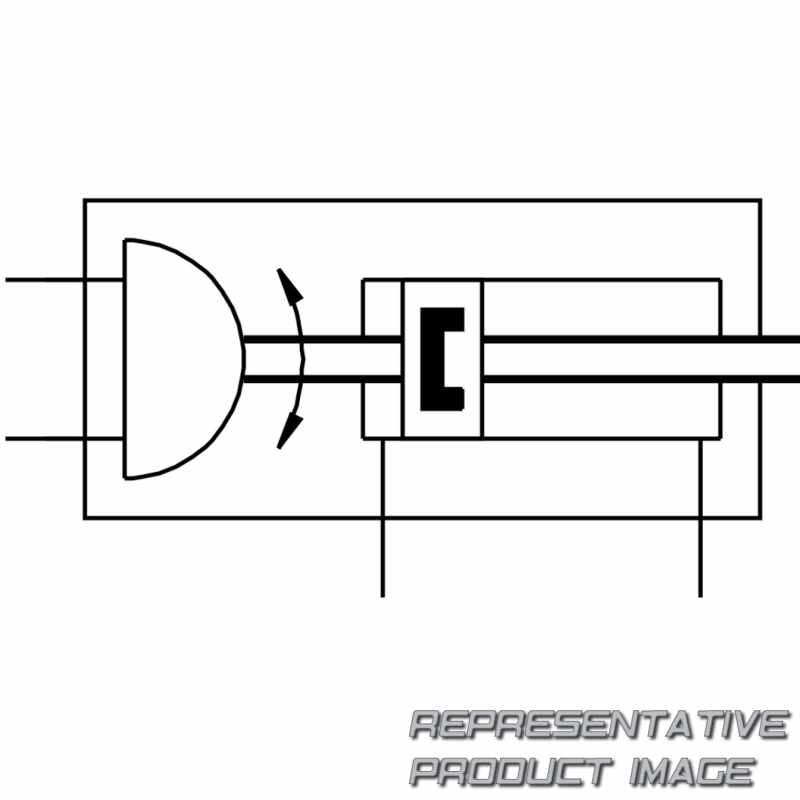

Symbol		00991269
Design		Vane
Fine adjustment		-3 deg
Cushioning		Shock absorber at both ends Elastic cushioning rings/plates at both ends
Piston diameter		32 mm
Rotation angle adjustment range		0 deg ... 246 deg
