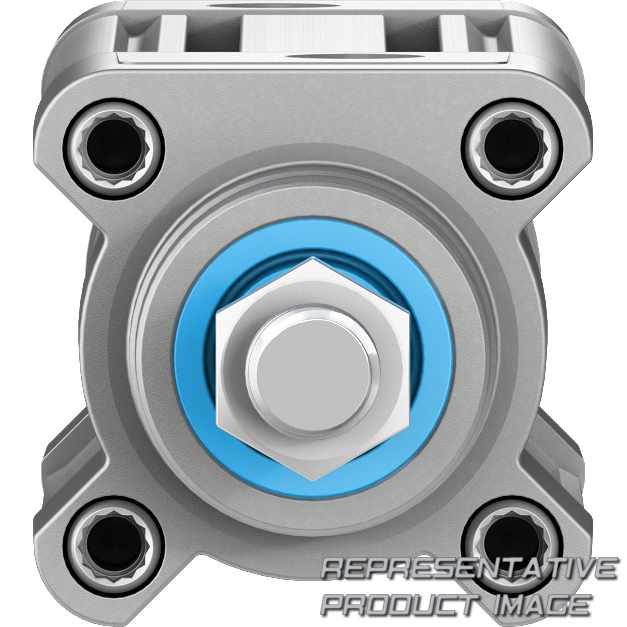

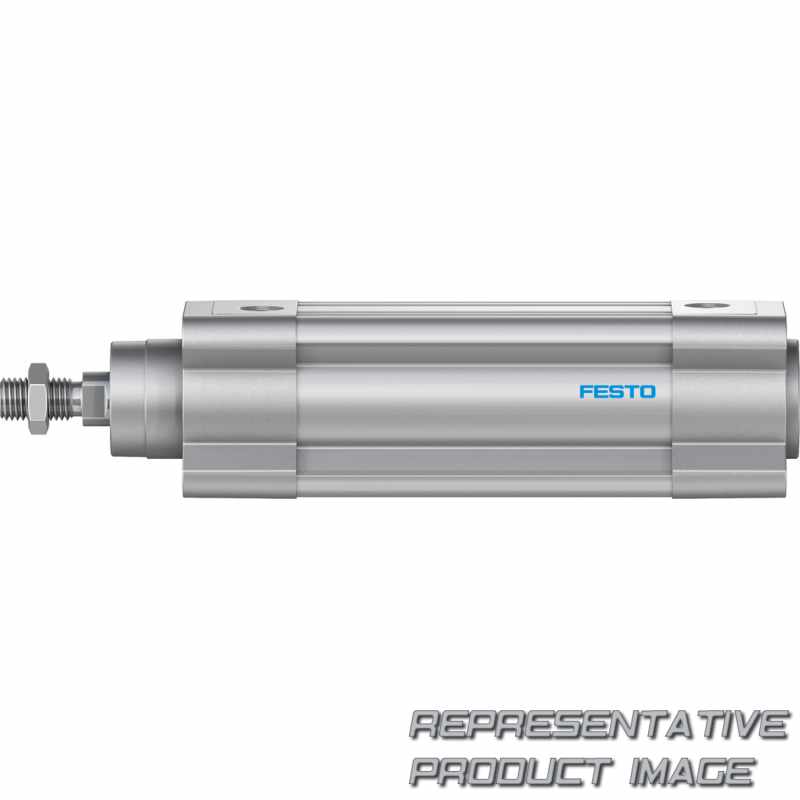

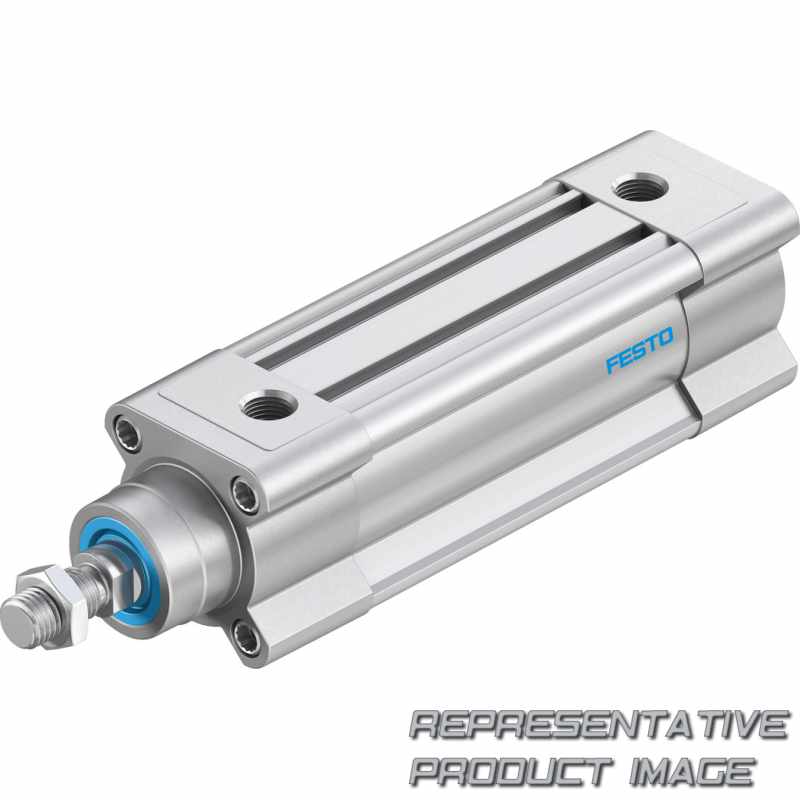

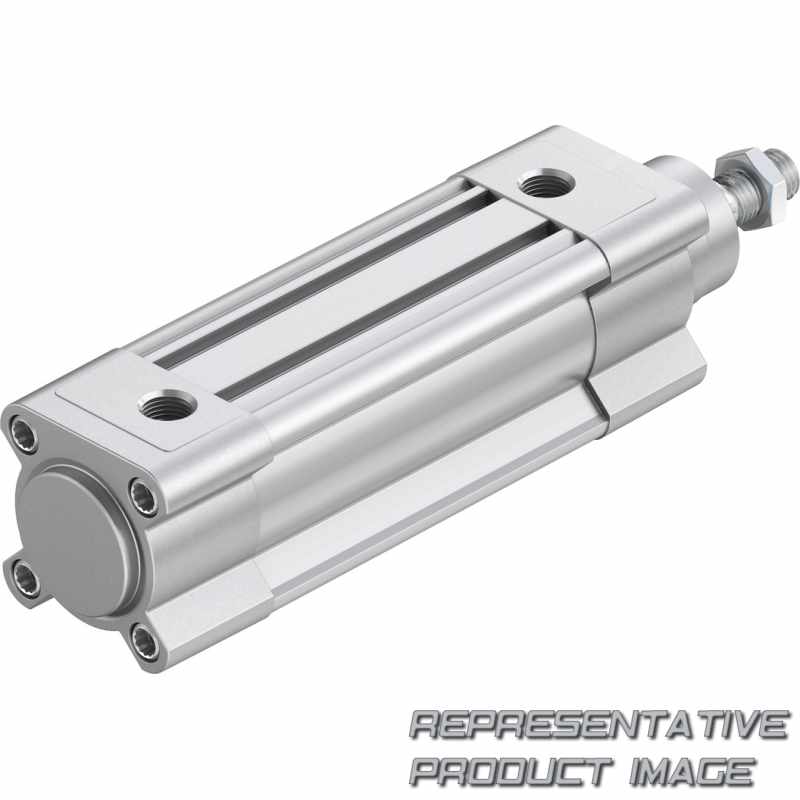

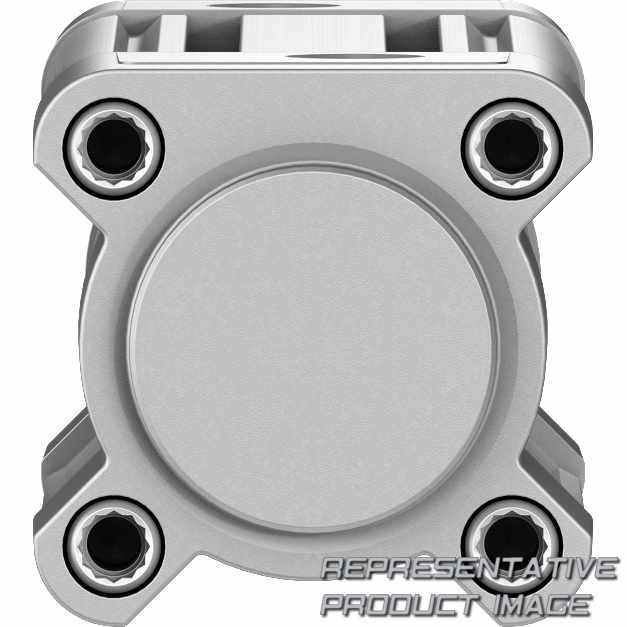

FESTO 2123783 iso cylinder

Name: 2123783 FESTO
Brand: FESTO
SKU: 671555-en-gbp
Price: 97.26 GBP
Availability: InStock

DSBC-40-70-PPSA-N3

£97.26 2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (DSBC)	Standards-based cylinder, double-acting, based on ISO 15552
Protection against rotation	None
Piston diameter [mm] (40)	40
Stroke [mm] (70)	70
Clamping unit	None
End-position locking	None
Piston rod type	At one end
Piston rod thread type	Male thread
Profi le type	Sensor slot on one profi le side only
Running characteristics	Standard
Cushioning (PPS)	Pneumatic cushioning, self-adjusting at both ends

Position sensing (A)	For proximity sensor
Standard	N3 In accordance with ISO
Corrosion protection	Standard
Temperature range	Standard
Protection against particles	Standard
Scraper variant	None
Special material properties	None
EU certification	None
Piston rod extension	None
Piston rod thread extension	None

Material collar screws		Galvanised steel
Material nut		Galvanised steel
Cushioning piston material		POM
Material piston rod wiper		TPE-U(PU)
Material piston		Wrought aluminium alloy
Material cover		Die-cast aluminium, coated
Pneumatic connection		G1/4
Additional weight per 10 mm stroke		37 g
Additional moving mass per 10 mm stroke		16 g
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke		754 N
Cushioning length		19 mm
Ambient temperature		-20 °C ... 80 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Mode of operation		Double-acting
Variants		Piston rod at one end
Position detection		Via proximity switch
Piston-rod end		Male thread
Mounting position		optional
Piston rod thread		M12x1.25
Stroke		70 mm

Material bearing		POM
Material cylinder barrel		Smooth-anodised wrought aluminium alloy
Buffer seal material		TPE-U(PU)
Material piston rod		High-alloy steel
Material piston seal		TPE-U(PU)
Note on materials		RoHS-compliant
Type of mounting		Via female thread With accessories Either:
Basic weight for 0 mm stroke		740 g
Moving mass for 0 mm stroke		205 g
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke		633 N
Impact energy in end positions		0,7 J
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Operating pressure		0,6 bar ... 12 bar
Symbol		00992970
Design		Piston Piston rod Profile barrel
Conforms to standard		ISO 15552
Cushioning		Self-adjusting pneumatic end-position cushioning
Piston diameter		40 mm
