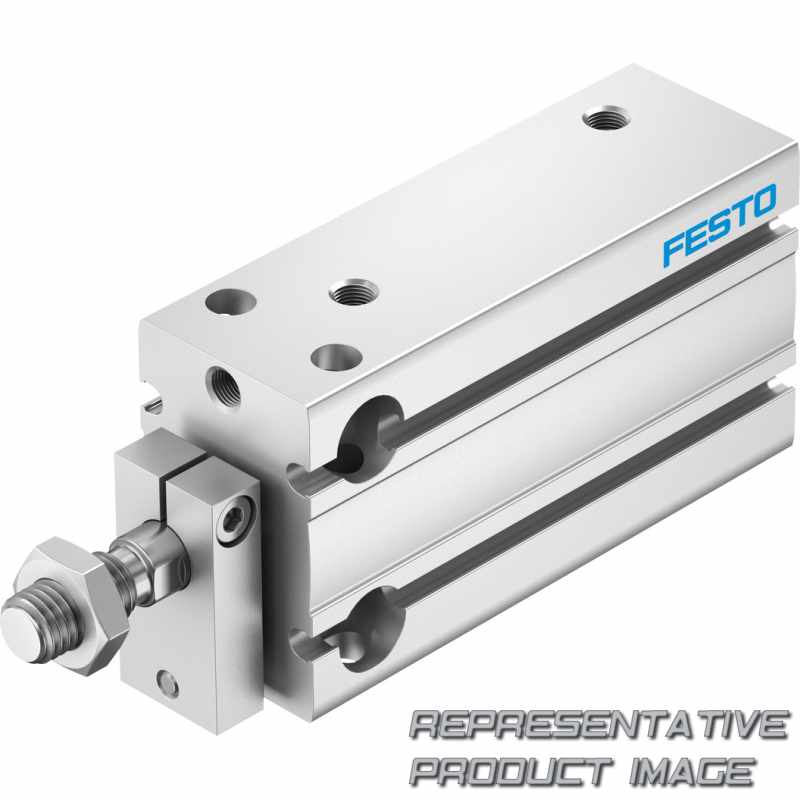

FESTO 4828465 compact cylinder

Name: 4828465 FESTO
Brand: FESTO
SKU: 685576-en-gbp
Price: 114.5 GBP
Availability: InStock

DPDM-Q-32-5-PA

£114.50 1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (DPDM)	Cylinder, multimount
Protection against rotation (Q)	With protection against rotation
Piston diameter [mm] (32)	32
Stroke [mm] (5)	5
Function (P)	Single-acting, pulling

Piston rod type	Single-ended piston rod
Cushioning	None
Position sensing (A)	For proximity sensor
Temperature range	Standard
Special material properties	None

Material piston rod		High-alloy stainless steel
Material seals		TPE-U(PU)
Note on materials		RoHS-compliant
Type of mounting		With through-hole Via female thread Either:
Basic weight for 0 mm stroke		331 g
Moving mass for 0 mm stroke		109 g
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke		415 N
Ambient temperature		-10 °C ... 80 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Operating pressure		1 bar ... 8 bar
Variants		Piston rod at one end
Position detection		Via proximity switch
Mode of operation		Double-acting
Cushioning		Elastic cushioning rings/plates at both ends
Stroke		5 mm

Material housing		Anodised wrought aluminium alloy
Material cover		Wrought aluminium alloy
Pneumatic connection		G1/8
Additional weight per 10 mm stroke		52,5 g
Additional moving mass per 10 mm stroke		10,5 g
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke		483 N
Theoretical force at 0.6 MPa (6 bar, 87 psi)		483 N
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Protection against torque/guide		Guide rod with yoke
Symbol		00991737
Design		Piston Piston rod Profile barrel
Mounting position		optional
Piston diameter		32 mm
