FESTO 397558 set of wearing parts

Name: 397558 FESTO
Brand: FESTO
SKU: 660743-en-gbp
Price: 196.97 GBP
Availability: InStock

DNCT- 50-PPV-A

£196.97 ~~£245.37~~ -19%

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (DNCT)	Tandem cylinder, double-acting, standard hole pattern
Piston diameter [mm] (50)	50
Stroke [mm]	Undefined

Cushioning (PPV)	Pneumatic cushioning, adjustable at both ends
Position sensing (A)	For proximity sensor
Temperature resistance	Standard

Stroke		2 mm ... 500 mm
Based on standard		ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290)
Mounting position		optional
Piston-rod end		Male thread
Position detection		Via proximity switch
Variants		Piston rod at one end
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC		2 - Moderate corrosion stress
Impact energy in end positions		0,2 J
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke		1.980 N
Type of mounting		With accessories
Note on materials		RoHS-compliant
Material seals		NBR TPE-U(PU)
Material piston rod		High-alloy steel

Piston diameter		50 mm
Cushioning		Pneumatic cushioning, adjustable at both ends
Mode of operation		Double-acting
Design		Piston Piston rod Profile barrel

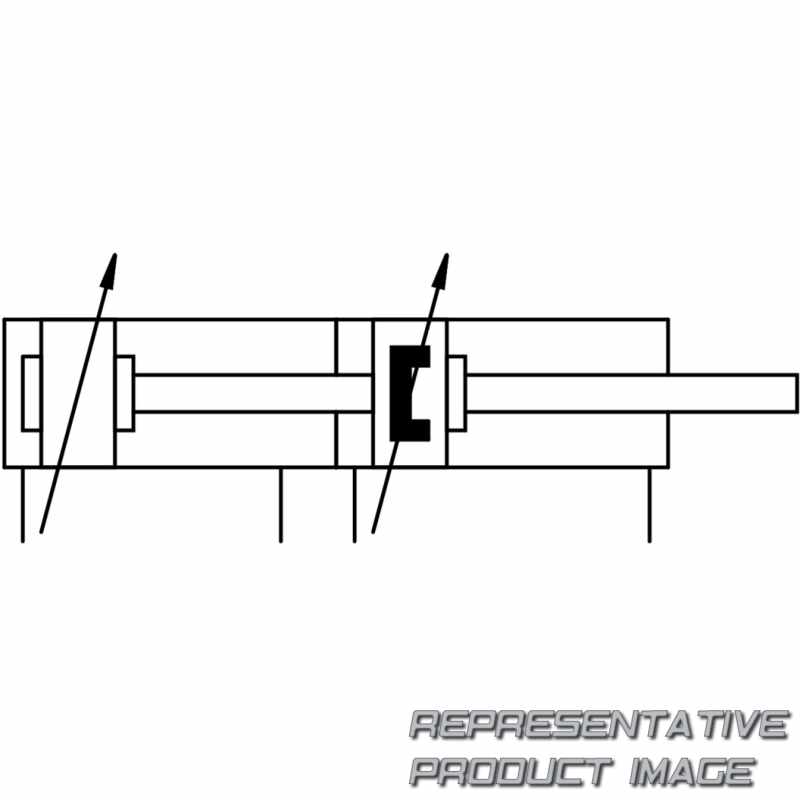

Symbol		995,911
Operating pressure		0,6 bar ... 10 bar
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Ambient temperature		-20 °C ... 80 °C
Cushioning length		22 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke		2.168 N
Pneumatic connection		G1/4
Material cover		Die-cast aluminium
Material housing		Wrought aluminium alloy Smooth anodised
