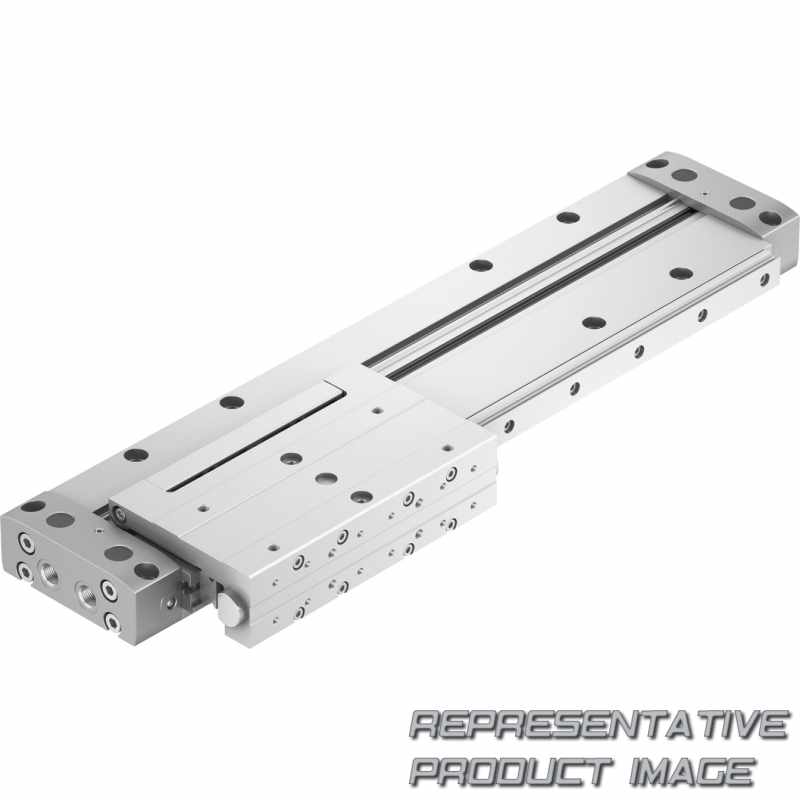

FESTO 5072370 linear drive

Name: 5072370 FESTO
Brand: FESTO
SKU: 661951-en-gbp
Price: 685.56 GBP
Availability: InStock

DLGF-KF-25-100-PPSA

£685.56

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (DLGF)	Linear drive
Guide (KF)	Recirculating ball bearing guide
Piston diameter [mm] (25)	25
Stroke [mm] (100)	100

Cushioning (PPS)	Pneumatic cushioning, self-adjusting at both ends
Position sensing (A)	For proximity sensor
Profi le design	With mounting holes

Material housing		Anodised aluminium
Material cover		Cast aluminium, coated
Pneumatic connection		G1/8
alternative connections		See product drawing
Moving mass		760 g
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke		295 N
Max. moment My		30 Nm
Max. force +Fz (away from drive)		700 N
Max. force Fy		1.000 N
Ambient temperature		0 °C ... 60 °C
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Operating pressure		1,5 bar ... 8 bar
Position detection		Via proximity switch
Guide		Recirculating ball bearing guide
Cushioning		Self-adjusting pneumatic end-position cushioning
Stroke		100 mm

Material seals		NBR TPE-U(PU)
Note on materials		RoHS-compliant Free of copper
Type of mounting		Direct mounting via through-hole With accessories
Product weight		2.096 g
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke		295 N
Max. moment Mz		30 Nm
Max. moment Mx		12,3 Nm
Max. force -Fz (towards drive)		1.200 N
Cushioning length		9 mm
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Mode of operation		Double-acting
Symbol		00991254
Coupling design		Positive-locking (slot)
Mounting position		optional
Piston diameter		25 mm
