| ean | 4015082770273 | ||
| product height | 2 in | ||
| Product weight | .5 lb | ||
| compliances | ce marked rohs compliant |
||
| catalog notes | screw terminals (6-65a); 5 mm (80-150a); no lugs (185-2000a) | ||
| hp rating - max | 2, 3/ 5, 5, 10, 15 (1/3ph @120,240/208,240, 480, 600 v) | ||
| amperage rating | 17a | ||
| Coil | 24 vac 60 hz | ||
| coil voltage | 24 vac, 60 hz | ||

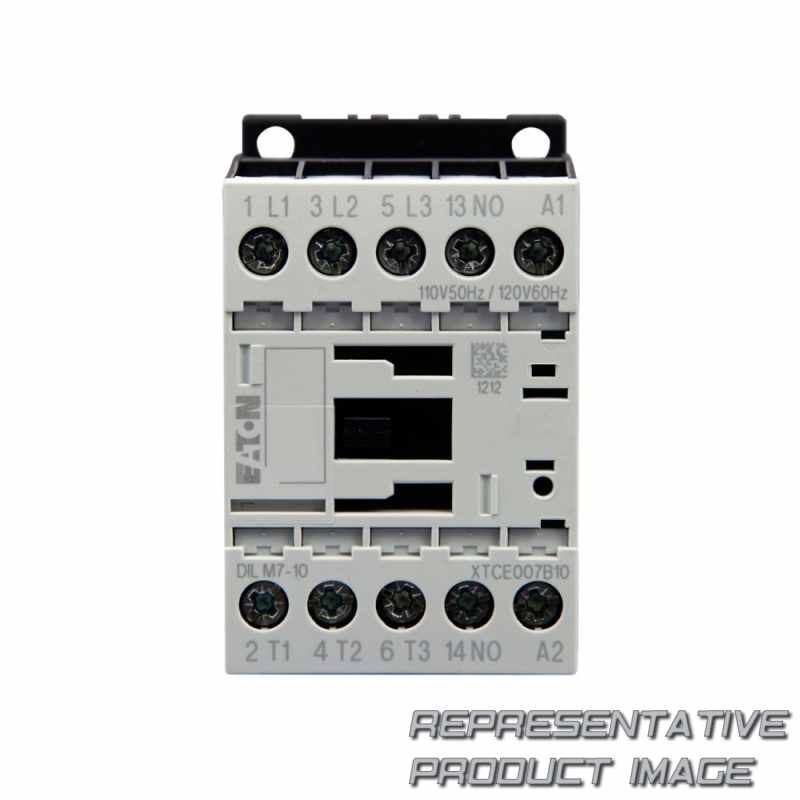

| Type | full voltage non-reversing miniature contactor | ||
| power consumption | 7.5 kw | ||
| terminals | screw terminals |
| product length/depth | 3.5 in | ||
| product width | 4 in | ||
| warranty | 1 year | ||
| certifications | iec 60947 en 60947 ul listed csa certified |
||
| contact configuration | 1 nc | ||
| operation | non-reversing | ||
| number of poles | three-pole | ||
| frame size | 45 mm | ||
| Series | xt iec | ||
| continuous ampere rating | 18 a | ||
| frequency rating | 60 hz |
