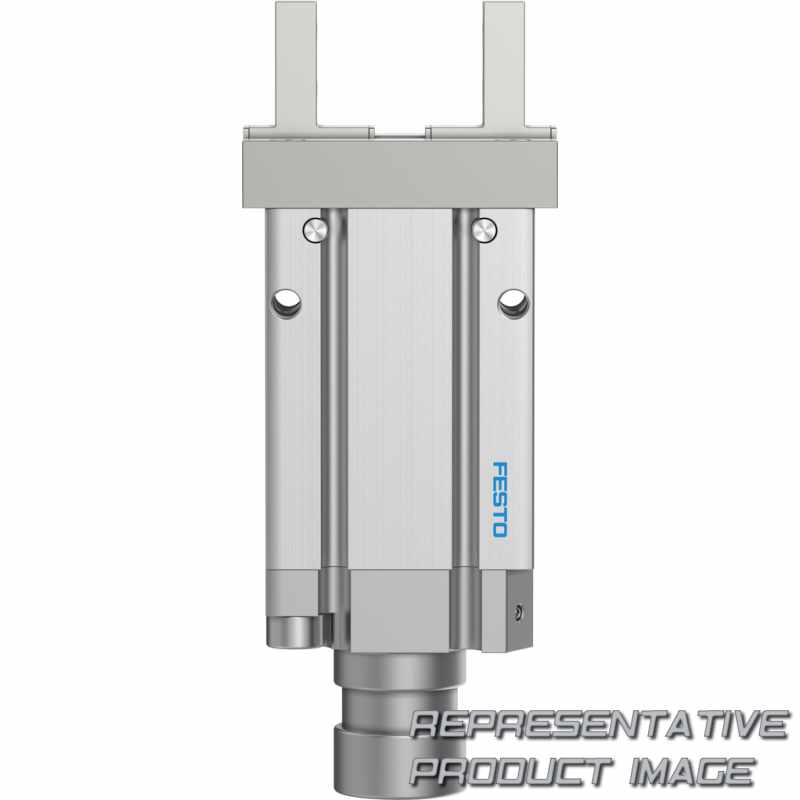

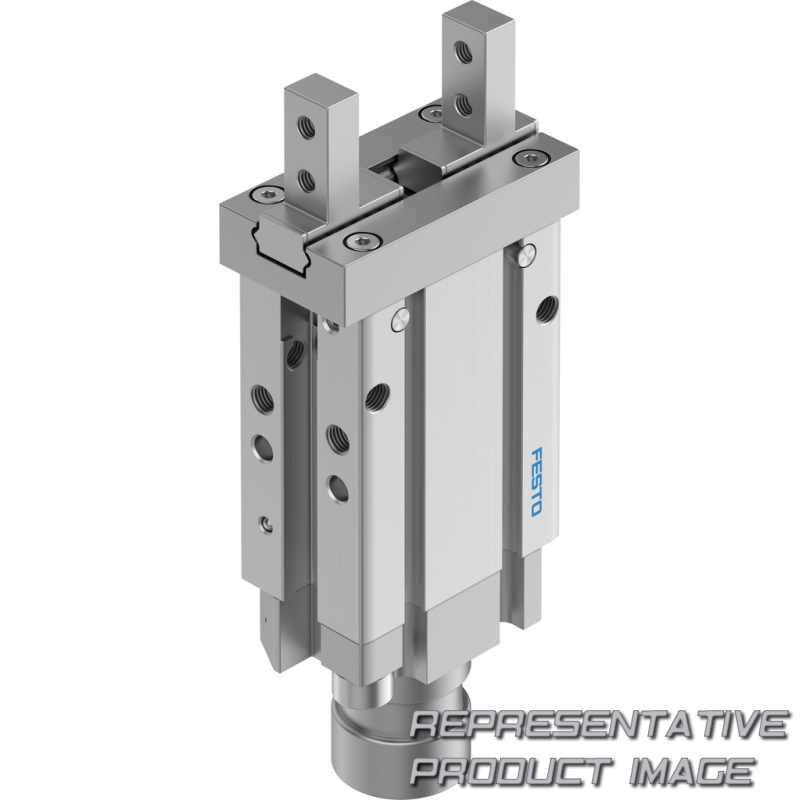

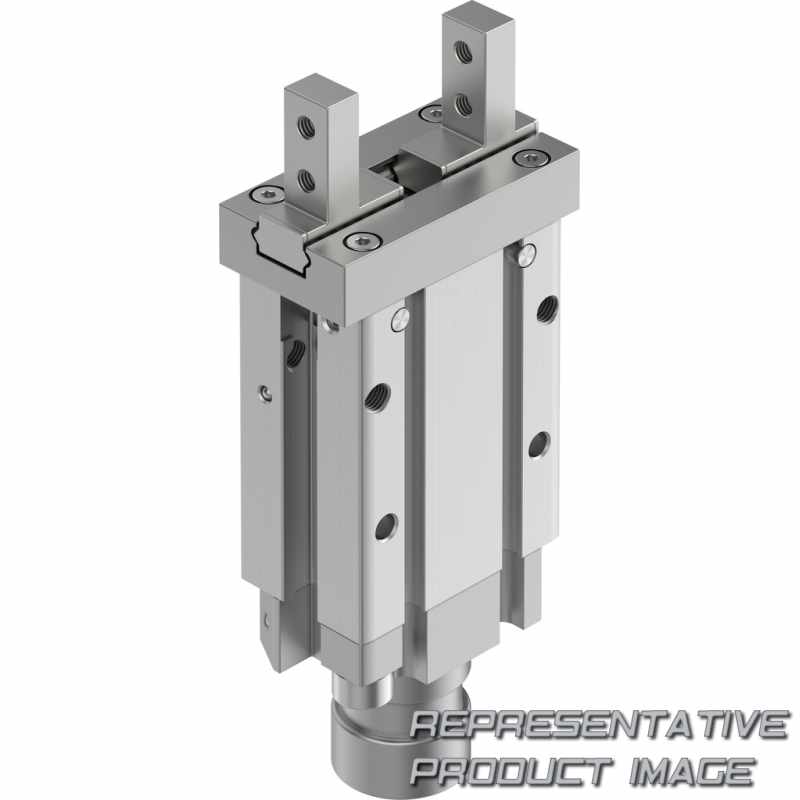

| Material gripper jaws | High-alloy stainless steel | ||
| Note on materials | RoHS-compliant | ||
| Type of mounting | Direct mounting via through-hole Direct mounting via thread On mounting frame Via through-hole and dowel pin Via female thread and dowel pin Either: | ||
| Max. torque at gripper Mz static | 0,34 Nm | ||
| Max. torque at gripper Mx static | 0,34 Nm | ||
| Mass moment of inertia | 0,167 kgcm² | ||
| Ambient temperature | -10 °C ... 60 °C | ||
| Corrosion resistance class CRC | 0 - No corrosion stress | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Min. closing time at 0.6 MPa (6 bar, 87 psi) | 11 ms | ||
| Max. operating frequency of gripper | 3 Hz | ||
| Total gripper force, closing, 0.6 MPa (6 bar, 87 psi) | 86,8 N | ||
| Position detection | Via proximity switch | ||
| Design | Connection via mounting spigot Lever Standard mounting method for gripper fingers Force pilot operated motion sequence | ||
| Mode of operation | Single-acting Open | ||
| Number of gripper jaws | 2 | ||
| Rotationally symmetrical | ≤ 0,2 mm | ||
| Max. angular gripper jaw backlash ax, ay | 0 deg | ||
| Stroke per gripper jaws | 3 mm |
| Material housing | Anodised aluminium | ||
| Pneumatic connection | M5 | ||
| Product weight | 136 g | ||
| Max. torque at gripper My static | 0,68 Nm | ||
| Max. force on gripper jaw Fz static | 49 N | ||
| Gripper force per gripper jaw, closing, 0.6 MPa (6 bar, 87 psi) | 43,4 N | ||
| LABS (PWIS) conformity | VDMA24364-B2-L | ||
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) | ||
| Max. mass per external gripper finger | 360 g | ||
| Min. opening time at 0.6 MPa (6 bar, 87 psi) | 29 ms | ||
| Operating pressure | 36,25 psi ... 116 psi | ||
| Symbol | 00997349 | ||
| Guide | Ball guide | ||
| Gripper function | Parallel | ||
| Mounting position | optional | ||
| Repetition accuracy, gripper | ≤ 0,02 mm | ||
| Max. gripper jaw backlash Sz | 0 mm | ||
| Max. replacement accuracy | 0,2 mm | ||
| Size | 16 |
