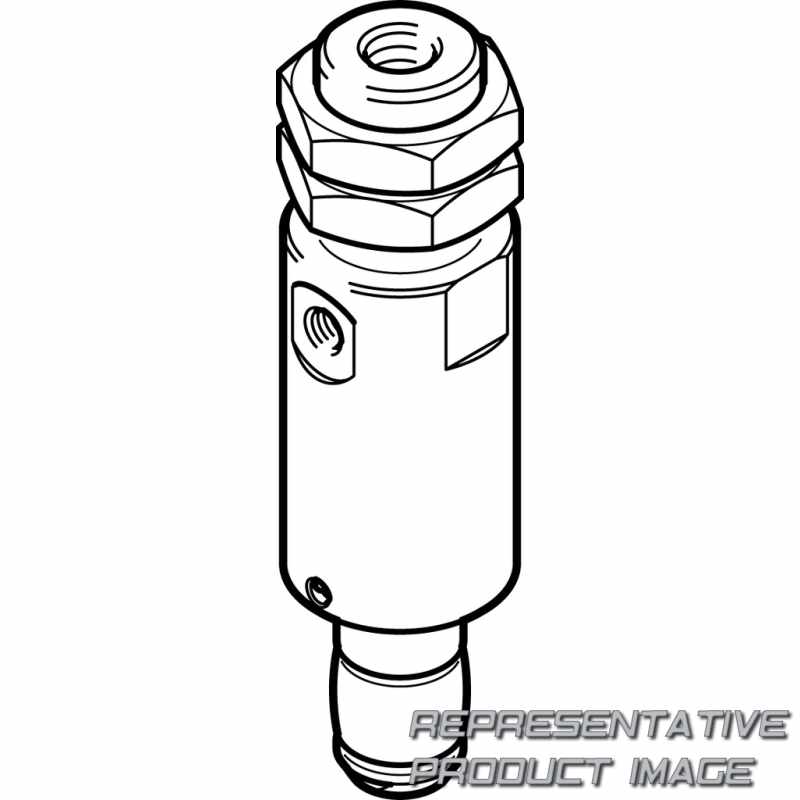

FESTO 1320787 bellow gripper

Name: 1320787 FESTO
Brand: FESTO
SKU: 689558-en-gbp
Price: 165.91 GBP
Availability: InStock

DHEB-8-E-D-E-P

£165.91 2 pcs. with 1 to 3 days delivery to United States

Specifications

Actuation direction (D)	Downwards
Bellows material (E)	EPDM
Connection position (P)	Perpendicular to direction of movement

Material housing		Aluminium Anodised
Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Type of mounting		Via male thread Via lock nut Either:
Guide value for effective load		0,08 kg
Ambient temperature		5 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Min. closing time at 0.6 MPa (6 bar, 87 psi)		30 ms
Max. operating frequency of gripper		≤ 4 Hz
Operating pressure		5 bar ... 8 bar
Guide		Basic guide
Mode of operation		Single-acting Closed
Max. ø to be gripped		11 mm
Stroke of bellows		3,5 mm

Material bellows		EPDM
Pneumatic connection		M3
Product weight		15 g
Average replacement interval for the bellows		0,5 MioCyc
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Min. opening time at 0.6 MPa (6 bar, 87 psi)		10 ms
Reset pressure		< 1 bar
Position detection		Without
Design		Contracting diaphragm Force pilot operated motion sequence
Mounting position		optional
Min. ø to be gripped		8 mm
Size		8
