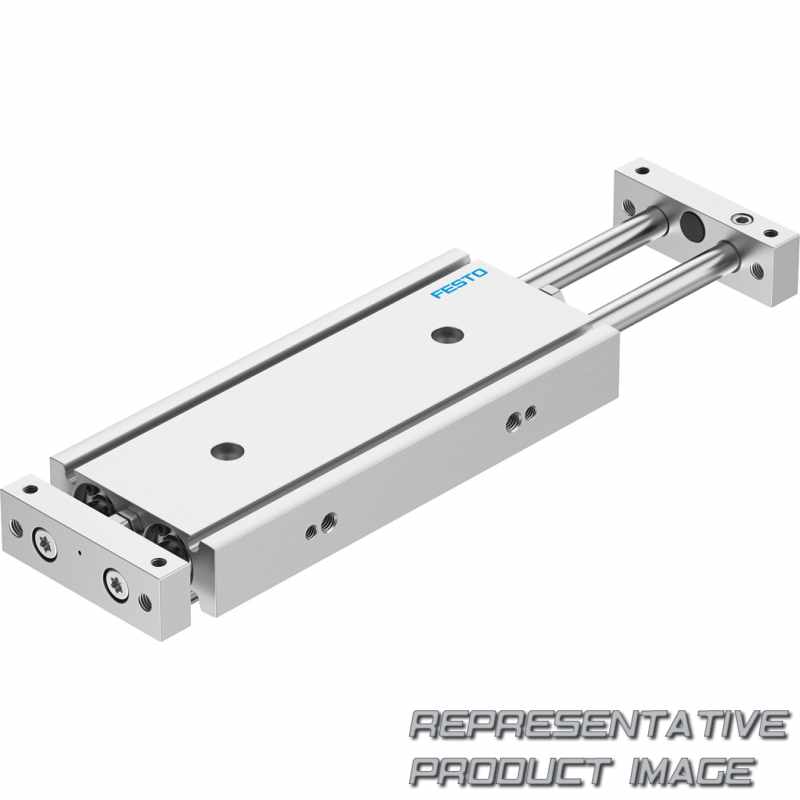

FESTO 8103431 twin cylinder

Name: 8103431 FESTO
Brand: FESTO
SKU: 690443-en-gbp
Price: 728.66 GBP
Availability: InStock

DGTZ-GF-16-50-J-T-P-A

£728.66

1 pcs. with 1 to 3 days delivery to United States

Specifications

Piston rod design (J)	Two end plates
Piston rod type (T)	Through piston rod
Cushioning (P)	Elastic cushioning rings/plates on both sides
Position sensing (A)	For proximity sensor

Material piston rod		High-alloy stainless steel
Material seals		NBR
Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Product weight		545 g
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke		181 N
Max. effective load dependent upon stroke at defined distance xs		12,1 N
Ambient temperature		-10 °C ... 80 °C
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Operating pressure		1,2 bar ... 8 bar
Position detection		Via proximity switch
Guide		Plain-bearing guide
Cushioning		Elastic cushioning rings/plates at both ends
Piston diameter		16 mm
Stroke		50 mm

Material housing		Anodised wrought aluminium alloy
Material cover		Wrought aluminium alloy
Pneumatic connection		M5
Moving mass		213 g
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke		181 N
Impact energy in end positions		0,15 J
LABS (PWIS) conformity		VDMA24364 zone III
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Mode of operation		Double-acting
Symbol		00991243
Design		Guidance
Mounting position		optional
Operating mode, drive unit		Two yokes
Adjustable end-position range/length		10 mm
