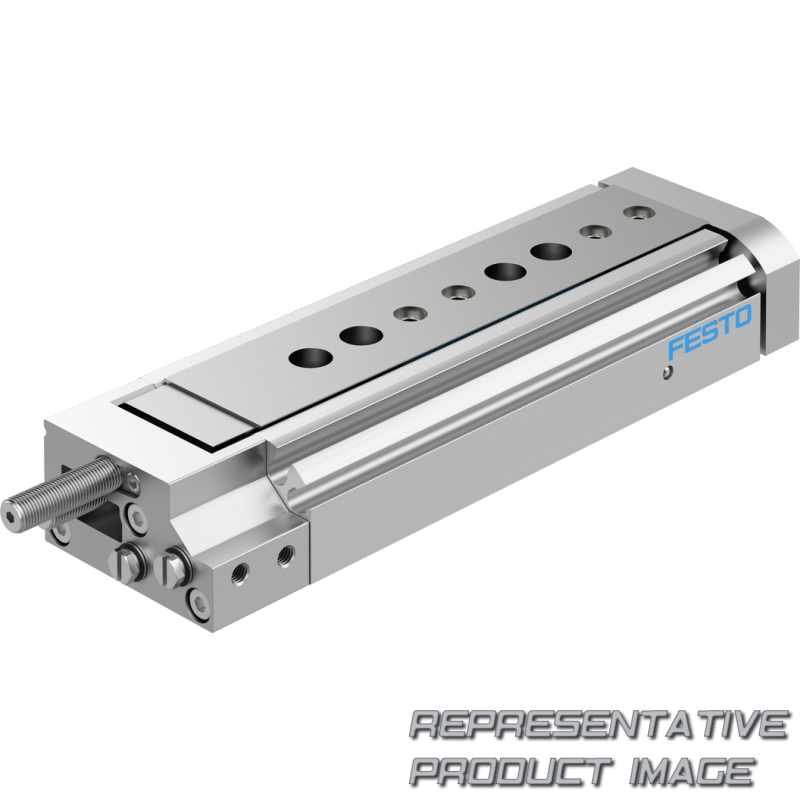

FESTO 543920 mini slide

Name: 543920 FESTO
Brand: FESTO
SKU: 691515-en-gbp
Price: 589.87 GBP
Availability: InStock

DGSL-6-50-PA

£589.87 ~~£654.22~~ -9%

2 pcs. with 1 to 3 days delivery to United States

Specifications

End-position locking	None
Cushioning (P)	Elastic cushioning rings/plates on both sides
Position sensing (A)	For proximity sensor

Material piston rod		High-alloy stainless steel
Material seals		HNBR
Note on materials		RoHS-compliant
Type of mounting		With through-hole
Product weight		239 g
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke		30 N
Max. moment Mz		5,5 Nm
Max. moment Mx		8 Nm
Max. force Fy		719 N
Impact energy in end positions		0,05 J
Corrosion resistance class CRC		0 - No corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Repetition accuracy		0.3 mm
Operating pressure		1,5 bar ... 8 bar
Position detection		Via proximity switch
Guide		Ball bearing cage guide
Cushioning		Elastic cushioning rings/plates at both ends
Piston diameter		8 mm
Adjustable end position range/length front		30,5 mm

Material housing		Wrought aluminium alloy
Material cover		Wrought aluminium alloy
Pneumatic connection		M3
alternative connections		See product drawing
Moving mass		99 g
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke		23 N
Max. moment My		5,5 Nm
Max. force Fz		719 N
Cushioning length		1,5 mm
Ambient temperature		0 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Mode of operation		Double-acting
Max. speed		0,5 m/s
Symbol		00991263
Design		Yoke Piston Piston rod Slide
Mounting position		optional
Operating mode, drive unit		Yoke
Adjustable end position range/length rear		15 mm
Stroke		50 mm
