FESTO 576118 stopper cylinder

Name: 576118 FESTO
Brand: FESTO
SKU: 683783-en-gbp
Price: 157.72 GBP
Availability: InStock

DFSP-Q-32-20-PR-PA

£157.72

3 pcs. with 1 to 3 days delivery to United States

Specifications

Series (DFSP)	Stopper cylinder, single- or double-acting
Protection against rotation (Q)	With protection against rotation
Piston diameter [mm] (32)	32
Stroke [mm] (20)	20

Function (P)	Single-acting with spring
Piston rod design (R)	With roller
Cushioning (P)	Elastic cushioning rings/plates on both sides
Position sensing (A)	For proximity sensor

Material cylinder barrel		Wrought aluminium alloy Smooth anodised
Material piston rod		High-alloy stainless steel
Material cover		Wrought aluminium alloy Anodised
Note on materials		RoHS-compliant
Type of mounting		With through-hole Via female thread With accessories Either:
Permissible lateral force during switching operation		485 N
Ambient temperature		-10 °C ... 80 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Protection against torque/guide		Flattened piston rod

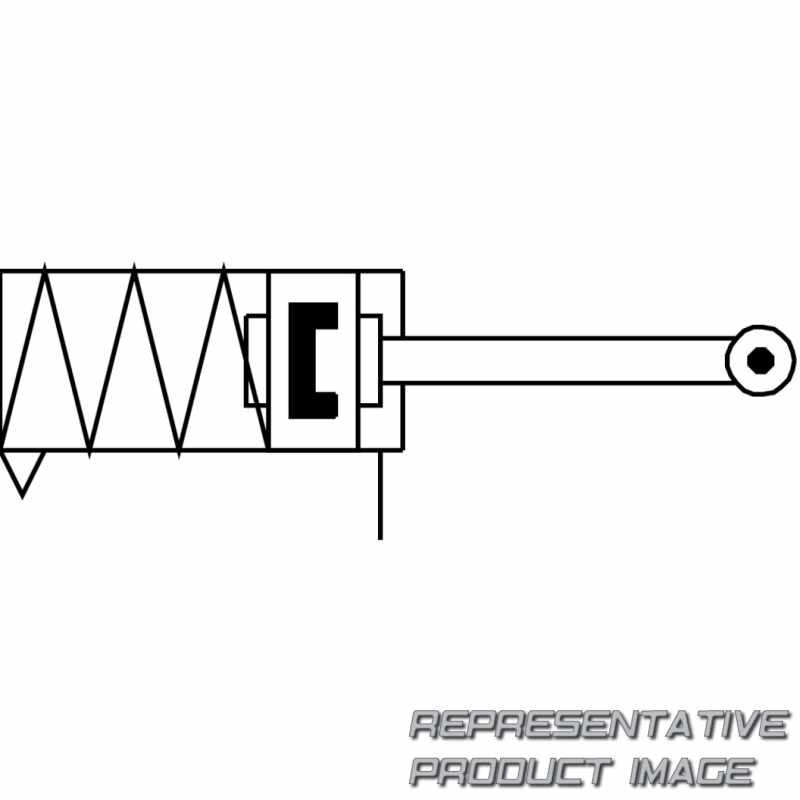

Symbol		00995267
Design		Piston Piston rod with roller Profile barrel Non-rotating
Mounting position		optional
Piston diameter		32 mm

Material roll		Galvanised steel
Material seals		TPE-U(PU)
Material collar screws		Galvanised steel
Pneumatic connection		G1/8
Max. cycle frequency		5 Hz
Impact force		2.670 N
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Operating pressure		1,2 bar ... 10 bar
Variants		Non-rotating piston rod
Position detection		Via proximity switch
Mode of operation		Single-acting Pulling
Cushioning		Elastic cushioning rings/plates at both ends
Stroke		20 mm
