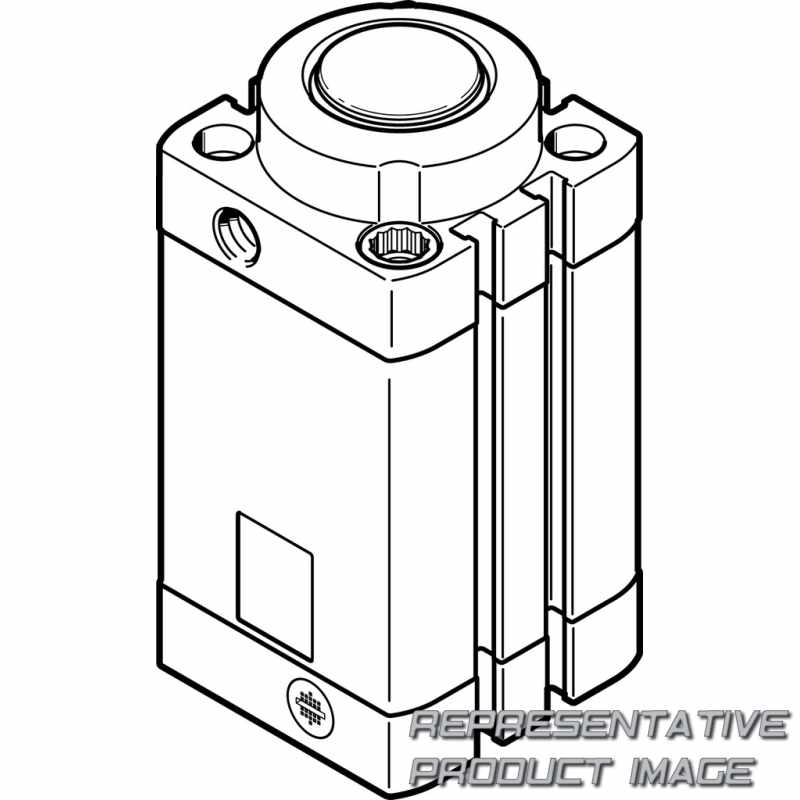

FESTO 576125 stopper cylinder

Name: 576125 FESTO
Brand: FESTO
SKU: 679604-en-gbp
Price: 158.32 GBP
Availability: InStock

DFSP-40-30-DS-PA

£158.32 ~~£176.92~~ -10%

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (DFSP)	Stopper cylinder, single- or double-acting
Protection against rotation	None
Piston diameter [mm] (40)	40
Stroke [mm] (30)	30

Function (D)	Double-acting
Piston rod design (S)	Standard
Cushioning (P)	Elastic cushioning rings/plates on both sides
Position sensing (A)	For proximity sensor

Material cylinder barrel		Wrought aluminium alloy Smooth anodised
Material piston rod		High-alloy stainless steel
Material cover		Wrought aluminium alloy Anodised
Note on materials		RoHS-compliant
Type of mounting		With through-hole Via female thread With accessories Either:
Permissible lateral force during switching operation		1.108 N
Ambient temperature		-10 °C ... 80 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Protection against torque/guide		Round piston rod
Position detection		Via proximity switch
Mode of operation		Double-acting
Cushioning		Elastic cushioning rings/plates at both ends
Stroke		30 mm

Material roll		Galvanised steel
Material seals		TPE-U(PU)
Material collar screws		Galvanised steel
Pneumatic connection		G1/8
Max. cycle frequency		5 Hz
Impact force		5.540 N
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Operating pressure		1 bar ... 10 bar
Symbol		00991217
Design		Piston Piston rod Profile barrel
Mounting position		optional
Piston diameter		40 mm
