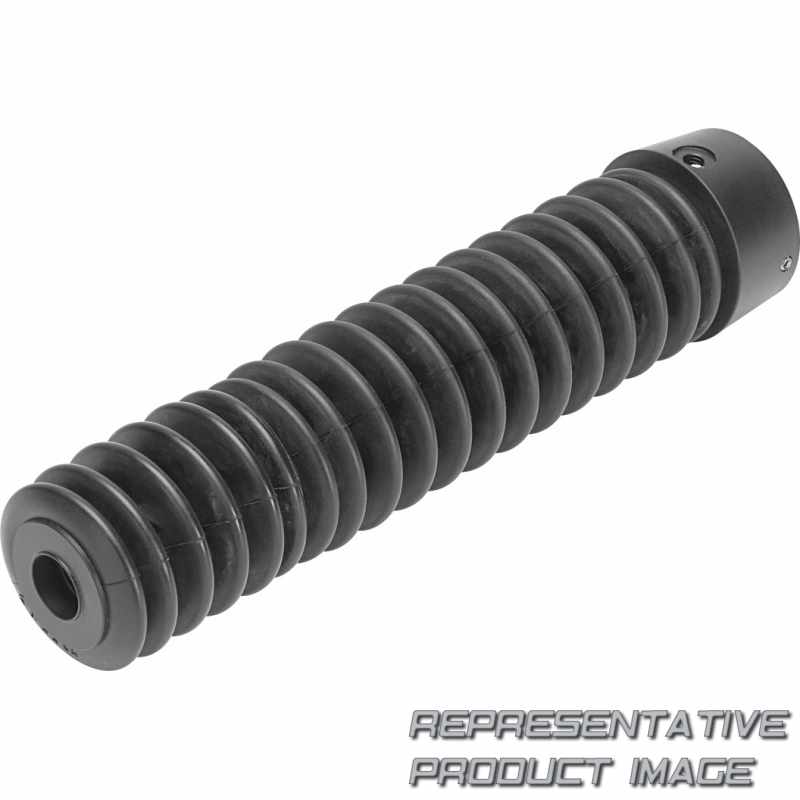

FESTO 553351 bellows kit

Name: 553351 FESTO
Brand: FESTO
SKU: 669319-en-gbp
Price: 177.61 GBP
Availability: InStock

DADB-V6-80-S10-50

£177.61

available with 7 to 15 days delivery to United States

Specifications

Size	80
Mounting Position	optional

Pneumatic connection	G1/4
Weight	99g

Material threaded pin		High-alloy stainless steel
Material seals		NBR
Note on materials		RoHS-compliant
Type of mounting		Push-on Via threaded pin
Ambient temperature		-10 °C ... 80 °C
Media resistance		Dust Chips Oils Grease Petrol
Design		Bellows kit With ducted exhaust air
Piston rod extension		25 mm
Size		80

Material bellows		NBR
Material adapter components		PA-reinforced
Pneumatic connection		G1/4
Product weight		99 g
Degree of protection		IP54
Corrosion resistance class CRC		3 - high corrosion stress
Mounting position		optional
Stroke range		10 mm ... 50 mm
Outside diameter		93 mm
