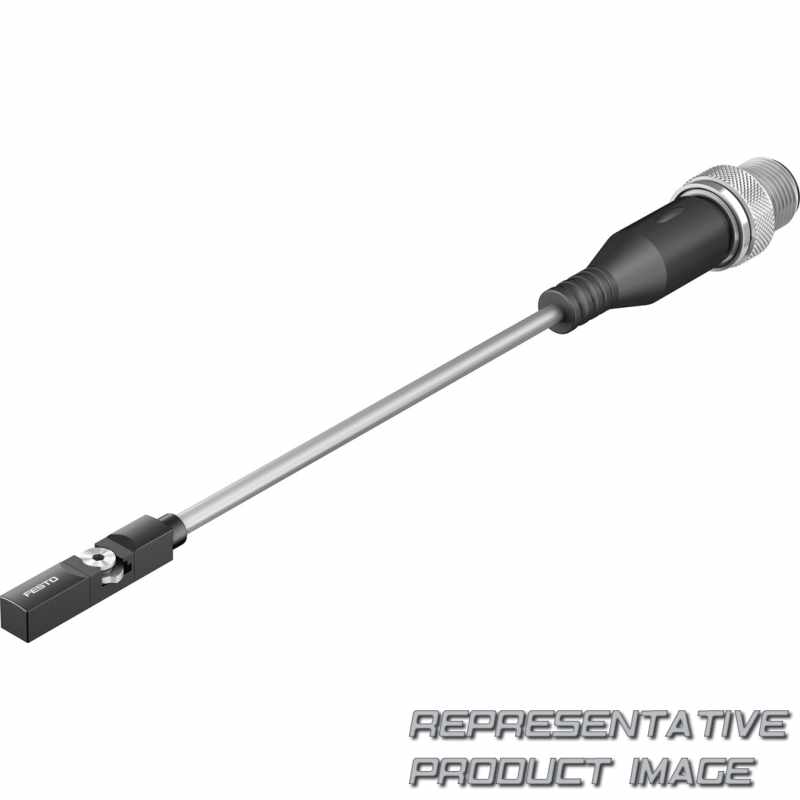

| Suitable for use with food | See supplementary material information | ||
| Immunity to magnetic fields | Design insensitive to permanent magnetic fields < Bon | ||
| Ambient temperature with moving cable | -20 °C ... 85 °C | ||
| Switching status indication | Yellow LED | ||
| Material housing | PA PP High-alloy stainless steel | ||
| Product weight | 9,1 g | ||
| Max. tightening torque | 0,6 Nm | ||
| Type of mounting | Screw-clamped Insertable in the slot from above | ||
| Material cable sheath | TPE-O | ||
| Cable characteristic | Standard + energy chain | ||
| Test conditions cable | Bending strength: to Festo standard Energy chain: 5 million cycles, bending radius 75 mm Torsional resistance: > 300,000 cycles, ± 270°/0.1 m | ||
| Material electrical contact | Brass, nickel-plated and gold-plated | ||
| Electrical connection 1, connection pattern | 00995573 | ||
| Electrical connection 1, number of connections/cores | 3 | ||
| Electrical connection 1, connection type | Cable with plug | ||
| Residual ripple | 10 % | ||
| Rated operational voltage DC | 24 V | ||
| Short circuit current rating | yes | ||
| Min. load current | 0 mA | ||
| Voltage drop | < 1,5 V | ||
| Max. switching capacity DC | 2,8 W | ||
| Max. output current | 100 mA | ||
| Switch-off time | ≤ 1 ms | ||
| Switching element function | N/O contact | ||
| Repetition accuracy | 0,2 mm | ||
| Measuring principle | Magneto-resistive | ||
| Instructions on use | Support / actuator-sensor overview "The right sensor for the actuator" | ||
| Special characteristics | Resistant to cooling lubricants Alkali resistant Acid resistant | ||
| Explosion ignition protection type for dust | Ex tc IIIC T120°C X Dc | ||
| Explosion ignition protection type for gas | Ex nA IIC T4 X Gc | ||
| Explosion protection | Zone 2 (ATEX) Zone 22 (ATEX) | ||
| CE mark (see declaration of conformity) | To EU EMC Directive To EU Explosion Protection Directive (ATEX) | ||
| Symbol | 00991153 | ||
| Design | For T-slot |
| LABS (PWIS) conformity | VDMA24364-B2-L | ||
| Degree of protection | IP65 IP68 IP69K | ||
| Function reserve indication | Orange LED | ||
| Material union nut | Nickel-plated brass | ||
| Housing colour | Black | ||
| Mounting position | optional | ||
| Tightening torque | 0,1 Nm ... 0,6 Nm | ||
| Material insulating sheath | PP | ||
| Cable sheath colour | grey | ||
| Cable length | 0,3 m | ||
| Material connector housing | PP | ||
| Connection outlet orientation | In-line | ||
| Electrical connection 1, type of mounting | Screw-type lock | ||
| Electrical connection 1, connector system | M12x1, A-coded to EN 61076-2-101 | ||
| Reverse polarity protection | For all electrical connections | ||
| Operational voltage range DC | 5 V ... 30 V | ||
| Overload protection | Available | ||
| Off-state current | < 0,05 mA | ||
| Inductive protective circuit | Adapted to MZ, MY, ME coils | ||
| Max. switching capacity DC using mounting kits | 2,8 W | ||
| Max. output current using mounting kits | 100 mA | ||
| Max. switching frequency | 180 Hz | ||
| Switch-on time | ≤ 1 ms | ||
| Switching output | PNP | ||
| Ambient temperature | -40 °C ... 85 °C | ||
| Measured variable | Position | ||
| Note on materials | RoHS-compliant Free of halogen | ||
| Explosion ambient temperature | -40°C <= Ta <= +85°C | ||
| ATEX category dust | II 3D | ||
| ATEX category gas | II 3G | ||
| KC mark | KC-EMV | ||
| Approval | RCM trademark | ||
| Based on standard | EN 60947-5-2 |
