FESTO 665164 bearing cap module

Name: 665164 FESTO
Brand: FESTO
SKU: 664542-en-gbp
Price: 322.72 GBP
Availability: SoldOut

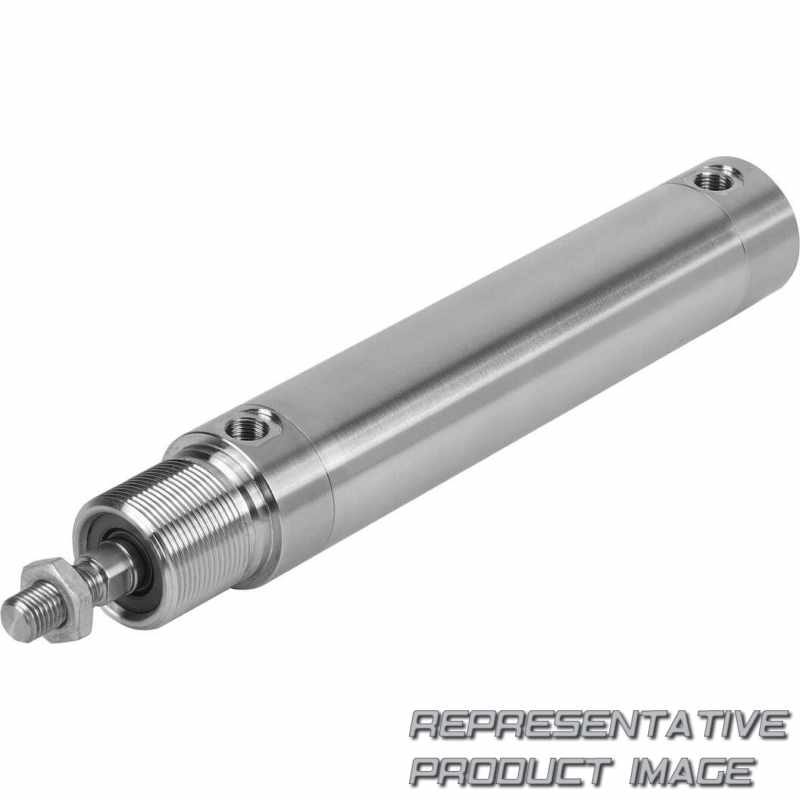

CRHD-50-PPVA-MQ

£322.72 ~~£524.42~~ -38%

Limited stock only available on quotation

Specifications

Pneumatic connection	G1/4
Weight	1.79Kg

Stroke		10 mm ... 500 mm
Cushioning		Pneumatic cushioning, adjustable at both ends
Design		Piston Piston rod
Symbol		991,235
Mode of operation		Double-acting
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Suitable for use with food		See supplementary material information
Cushioning length		21 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke		1.178 N
Additional moving mass per 10 mm stroke		25 g
Additional weight per 10 mm stroke		57 g
Material cover		High-alloy stainless steel
Material housing		High-alloy stainless steel

Piston diameter		50 mm
Mounting position		optional
Position detection		Via proximity switch
Operating pressure		1 bar ... 10 bar
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC		3 - high corrosion stress
Ambient temperature		-20 °C ... 80 °C
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke		990 N
Moving mass for 0 mm stroke		340 g
Basic weight for 0 mm stroke		1.792 g
Pneumatic connection		G1/4
Material seals		NBR TPE-U(PU)
Material piston rod		High-alloy stainless steel
