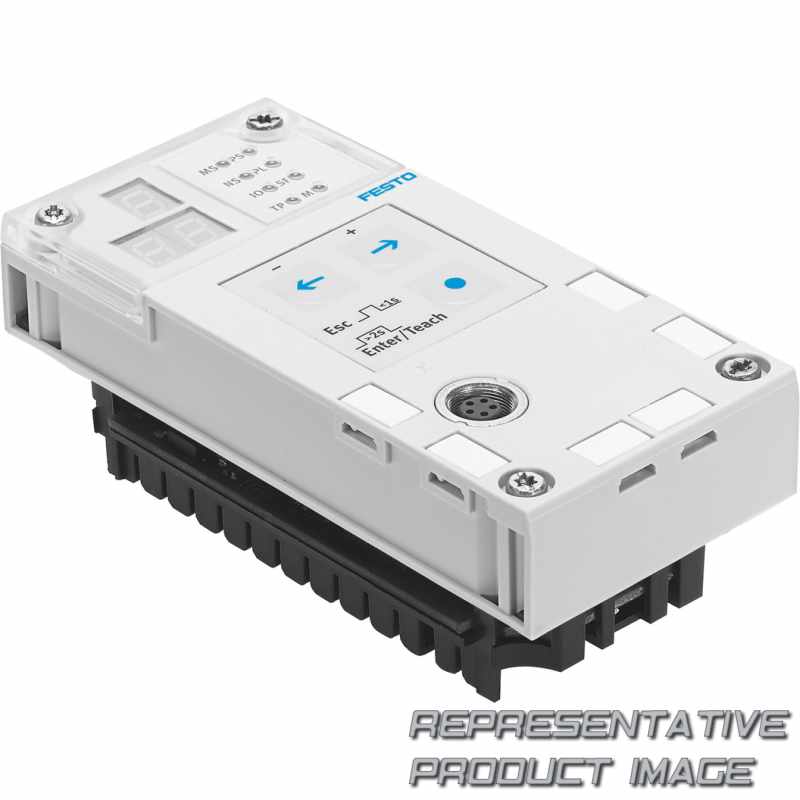

FESTO 548931 end position controller

Name: 548931 FESTO
Brand: FESTO
SKU: 671284-en-gbp
Price: 725.73 GBP
Availability: InStock

CPX-CMPX-C-1-H1

£725.73

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (CPX-CMPX)	End-position controller for electrical terminal
Function module (C)	Controller

Axes (1)	One
Control panel (H1)	Integrated

Material housing		PA-reinforced
Cable length		≤ 30 m
Number of axis strings		1
Product weight		140 g
Vibration resistance to DIN/IEC 68 Part 2-6		Tested to severity level 2
Relative air humidity		5 - 95% Non-condensing
Permissible load current		2,5 A
Nominal load voltage DC		24 V
Load voltage range DC		20 V ... 30 V
Operator controls		3 keys
Max. number of modules		10
Dimensions (W x L x H)		50 x 107 x 55 mm

Control-Interface		Digital CAN bus with Festo protocol Integrated terminating resistor
Electrical connection control interface		Socket M9 5-pin
Axes per string		1
Ambient temperature		-5 °C ... 50 °C
Degree of protection		IP65 To IEC 60529
Shock resistance to DIN/IEC 68 Parts 2-29		Tested to severity level 2
Current consumption at nominal operating voltage		80 mA
Nominal operating voltage DC		24 V
Operational voltage range DC		18 V ... 30 V
Display		7-segment display
Diagnosis		Module-orientated diagnostics Via local 7-segment display
