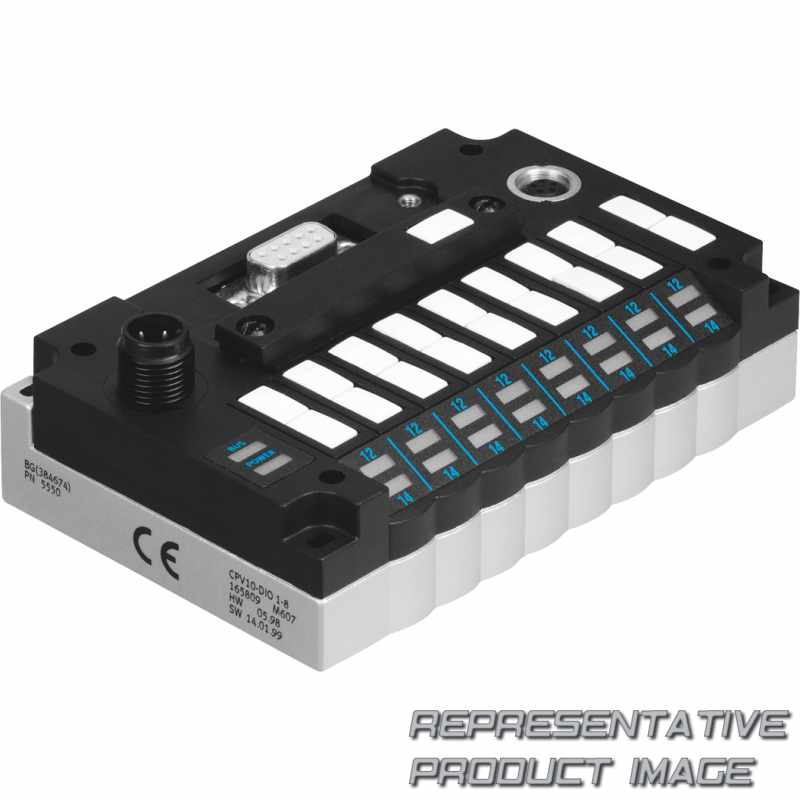

| Note on materials | RoHS-compliant | ||
| Material seals | CR NBR | ||
| Product identification | Product series: 4: Valves | ||
| LED display, bus-specific | BUS: Communication and configuration errors | ||
| Fieldbus certification | PNO | ||
| Product weight | 351 g | ||
| Ambient temperature | -5 °C ... 50 °C | ||
| Storage temperature | -20 °C ... 70 °C | ||
| Current consumption at nominal operating voltage, load | Depending on valve type | ||
| Power failure bridging | 10 ms | ||
| Max. number of inputs | 16 | ||
| Operational voltage range DC | 20,4 V ... 26,4 V | ||
| Reverse polarity protection | For all electrical connections | ||
| Max. number of valve coils with string expansion | 32 | ||
| Types of communication | Cyclic communication | ||
| Field bus interface | Either: Socket and plug, M12x1, 5-pin, B-coded Sub-D, 9-pin, socket |
| Material housing | Die-cast aluminium | ||
| Material cover | PA-reinforced | ||
| LED display, product-specific | 12/14: switching status of valves POWER: Operating voltage for electronics and load supply | ||
| Electrical isolation fieldbus interface | Optocoupler | ||
| Addressing range | 1 ... 125 Set using switch module | ||
| Approval | c UL us - Recognized (OL) | ||
| Degree of protection | IP65 | ||
| Current consumption at nominal operating voltage | Electronics: <= 100 mA Sensor supply: dependent on sensor | ||
| Residual ripple | 4 Vpp | ||
| Nominal operating voltage DC | 24 V | ||
| Max. number of outputs | (16 solenoid coils omitted) 8 | ||
| Baud rate | 9.6 kBaud ... 12 MBaud Automatic detection | ||
| Max. number of valve coils | 16 | ||
| Configuration support | GSD file and bitmaps | ||
| Device-specific diagnostics | Via device-specific diagnostics (DPV0) Missing module on CP string extension Short circuit/overload, outputs Undervoltage of outputs Undervoltage of sensor supply Undervoltage of valves | ||
| CP string expansion | yes 16 inputs 8 outputs (or 16 valves) |
