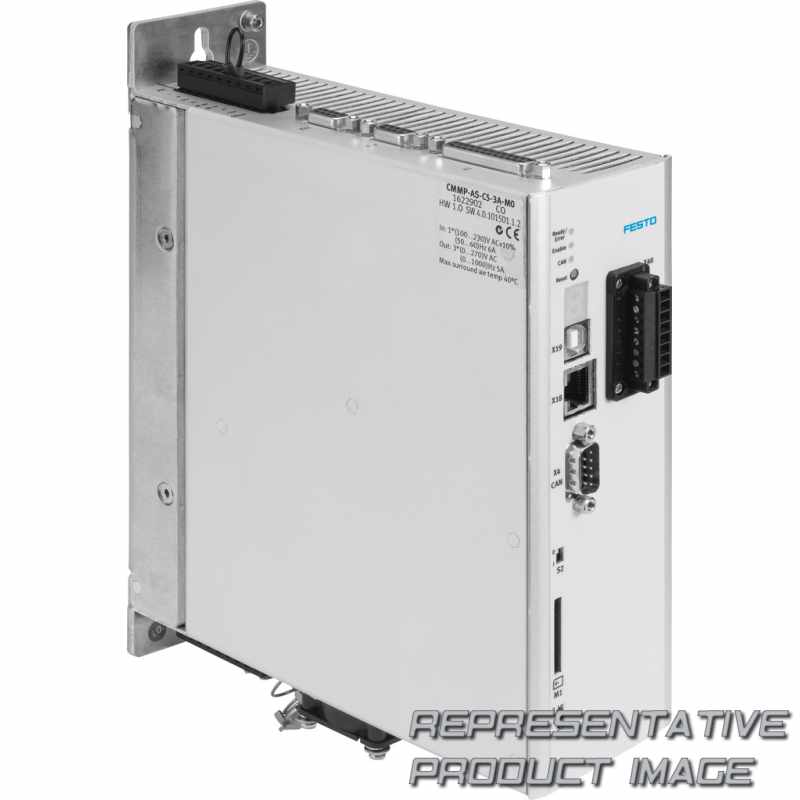

FESTO 1622902 motor controller

Name: 1622902 FESTO
Brand: FESTO
SKU: 679745-en-gbp
Price: 1727.59 GBP
Availability: InStock

CMMP-AS-C5-3A-M0

£1,727.59 ~~£2,285.59~~ -24%

1 pcs. with 1 to 3 days delivery to United Kingdom

Specifications

Proof test interval		20 y
SFF Safe Failure Fraction		99,17 %
Performance Level (PL)		Safe Torque Off (STO)/category 4, performance level e
Safety function		Safe torque off (STO) Safe Stop 1 (SS1)
Resolution of monitor outputs		9 bit
Number of analogue monitor outputs		2
Working range setpoint input		± 10 V
Number of analogue setpoint inputs		2
Features of digital logic outputs		Galvanically isolated Freely configurable in some cases
Working range of logic input		8 V ... 30 V
Number of digital logic inputs		10
Encoder interface input, features		3-phase encoder signals EnDat HIPERFACE RS422 SINCOS
Encoder interface output, features		Resolution 16384 ppr
Max. fieldbus transmission rate		1 Mbit/s
Communication profile		DS301/DSP402
Parameterisation interface		Parameterisation and commissioning USB Ethernet
Maximum output		2.000 VA
Max. peak current duration		5 s
Nominal current per phase, effective		5 A
Output voltage class AC		3x 0 - 270 V
Permissible range for logic voltage		± 20 %
Pulse power, brake resistance		2,8 kVA
Max. intermediate circuit voltage DC		320 V
Active PFC		yes
Mains frequency		50 Hz ... 60 Hz
Nominal operating voltage AC		230 V
LABS (PWIS) conformity		VDMA24364 zone III
Pollution degree		2
Relative air humidity		0 - 90%
Storage temperature		-25 °C ... 70 °C
CE mark (see declaration of conformity)		To EU EMC Directive To EC Machinery Directive To EU Low Voltage Directive In accordance with EU RoHS Directive
Display		7-segment display
Type of mounting		On sub-base Screw-clamped

Hardware fault tolerance		1
Diagnostic coverage		97 %
Safety Integrity Level (SIL)		Safe torque off (STO)/SIL 3/SILCL 3
Features of monitor outputs		Short-circuit proof
Working range of monitor outputs		± 10 V
Impedance of setpoint input		20 kOhm
Features of setpoint inputs		Differential inputs Configurable for speed Configurable for current
Max. current digital logic outputs		100 mA
Number of digital logic outputs 24 V DC		5
Features of logic input		Galvanically isolated Freely configurable
Encoder interface input, function		Setpoint speed value as encoder signal Specifies the speed of the slave drive in synchronous mode.
Encoder interface output, function		Actual value feedback via encoder signals in speed control mode. Setpoint specification for downstream slave drive.
Bus connection		Plugs 9-pin Sub-D
Process interfacing		I/O coupling For 256 position sets
Fieldbus link		CANopen Modbus/TCP
Output frequency		0 Hz ... 1.000 Hz
Controller nominal output		1.000 VA
Peak current per phase, effective		10 A
Nominal output current		5 A
Current consumption of logic power supply without clamping brake		0,65 A
Nominal voltage for logic power supply DC		24 V
Brake resistance		60 Ohm
Mains filter		Integrated
Nominal current		4 A ... 6 A
Permissible voltage fluctuations		+/- 10 %
Phases of nominal operating voltage		Single-phase
Note on materials		RoHS-compliant
Degree of protection		IP10 IP20
Ambient temperature		0 °C ... 40 °C
Certificate issuing authority		01/205/5162.02/19 TÜV Rheinland
Approval		RCM trademark c UL us listed (OL)
Product weight		2.200 g
