| Weight | 1.27072 lb | ||
| Shock resistance | endurance 10 to 55 hz; amplitude 0.75 mm; x, y, z for 2 hours each | ||
| ambient humidity | 35 to 85% rh (no condensation) | ||
| insulation resistance | between case and ac line: 500 vdc, 50 m or more | ||
| power consumption | 10 w or less | ||
| output transistor mode | npn open collector max 30 vdc, 50 ma ?3 | ||
| output delay time | 5 ms or less (for normal output) | ||
| preset output configuration | compare/hold/one-shot (100 ms fixed pulse) | ||
| sensor power supply | 10.8 to 13.2 vdc, 60 ma | ||
| counting speed | 100 khz ?1 | ||
| count input | no-voltage pulse input | ||
| memory holding {storage medium} | setting value (always held), count value (hold/non-hold switching), {e2rom (warning display after writing approx. 800,000 times: e2ful)} | ||
| display system | lcd (with back light) | ||
| operation mode | operating mode, data setting mode, function setting mode | ||
| mounting | surface mounting (din rail or screw stop) | ||

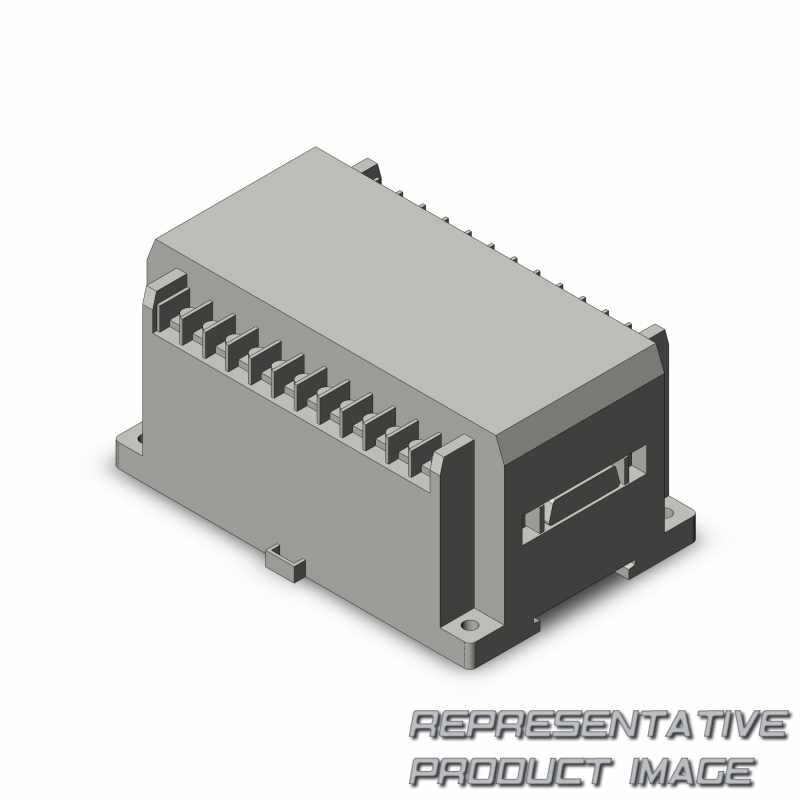

| model | ceu5b-d |
| impact resistance | endurance 10 g; x, y, z directions, 3 times each | ||
| noise resistance | square wave noise from a noise simulator (pulse duration 1 ?s) between power supply terminals ?2000 v, i/o line ?600 v | ||
| Ambient temperature | 0 to 50c (no freezing) | ||
| withstand voltage | between case and ac line: 1500 vac for 1 min. between case and signal ground: 500 vac for 1 min. | ||
| power supply voltage | 21.6 to 26.4 vdc | ||
| communication system | rs-232c | ||
| output type | separate 5 point output/binary code output | ||
| output signal type | preset output, cylinder stop output, bcd output | ||
| control signal input | voltage input (12 vdc or 24 vdc) | ||
| pulse signal system | 90 phase difference input ?1/ up/down separate input ?2 | ||
| input signal type | count input, control signal input (reset, hold, bank selection) | ||
| number of digits | 6 digits | ||
| reset system | external reset terminal | ||
| operating system | adding - subtracting type | ||
| Type | multi-counter |
