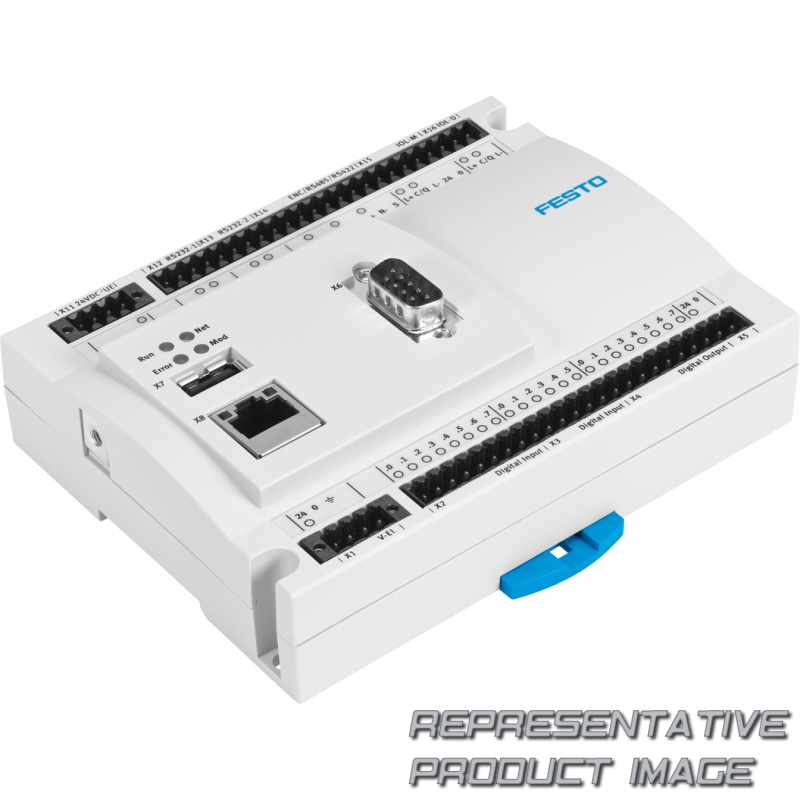

| Certificate issuing authority | UL E239998-D1001 | ||
| CE mark (see declaration of conformity) | To EU EMC Directive | ||
| Programming software | CODESYS provided by Festo V3 | ||
| Incremental encoder inputs, max. input frequency | 1.000 kHz | ||
| Incremental encoder inputs, resolution | 32 bit | ||
| Ethernet, supported protocols | TCP/IP, EasyIP, Modbus TCP | ||
| Ethernet, number | 1 | ||
| USB-interface | USB 1.1 | ||
| Field bus interface, transmission rate | 125, 250, 500, 800, 1000 kbit/s Can be set using software | ||
| Fieldbus interface | CAN bus | ||
| IO-Link, communication | C/Q green LED C/Q red LED | ||
| IO-Link, Output current | 3.5 A/port | ||
| IO-Link, Min. cycle time | Device 3.2 ms Master 5 ms | ||
| IO-Link, Process data length OUT | Master parameterisable 2 - 32 bytes | ||
| IO-Link, Port class | Device A Master B | ||
| IO-Link, Protocol version | Device V 1.0 Master V 1.1 | ||
| Serial interface, transmission rate | 300 ... 375000 bit/s | ||
| Type of serial interface | 2 x RS232/1 x RS485-A/422-A | ||
| Digital outputs, status display | LED | ||
| Digital outputs, switching frequency | Max. 1 kHz | ||
| Digital outputs, output current | 500 mA | ||
| Digital outputs, contact | Transistor | ||
| Digital outputs, number | 8 | ||
| Digital inputs, status display | LED | ||
| Digital inputs, nominal value for FALSE | <= 5 V DC | ||
| Digital inputs, input voltage/current | 24 V DC | ||
| Digital inputs, high-speed counter inputs | 2, each with max. 180 kHz | ||
| Digital input, number | 12 | ||
| Status displays | LED | ||
| Shock resistance test | As per EN 61131-2 | ||
| Product weight | 200 g | ||
| Degree of protection | IP20 | ||
| Storage temperature | -25 °C ... 70 °C | ||
| Max. power supply | 6 A | ||
| Operating voltage | 20.4 - 30 V DC | ||
| Note on materials | RoHS-compliant | ||
| Corrosion resistance class CRC | 0 - No corrosion stress |
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | ||
| Programming language | To IEC 61131-3 KOP AWL ST FUP AS | ||
| Incremental encoder inputs, encoder power supply | 5 V DC (100 mA) | ||
| Incremental encoder inputs, signal range | 5 V differential (RS422) | ||
| Incremental encoder inputs, number | 1 | ||
| Ethernet, data transmission rate | 10/100 Mbit/s | ||
| Ethernet, plug connector | RJ45 | ||
| Field bus interface, electrical isolation | yes | ||
| Field bus interface, connection system | Plugs Sub-D 9-pin | ||
| IO-Link, ready-to-operate indicator | L+ green LED on L+ green LED off | ||
| IO-Link, connection technology | Cage Clamp Plugs Master 5-pin Device, 3-pin | ||
| IO-Link, Data storage provided | 2 kB/port | ||
| IO-Link, Process data length IN | Master parameterisable 2 - 32 bytes | ||
| IO-Link, Number of ports | Device 1 Master 1 | ||
| IO-Link, communication mode | Master SIO, COM1 (4.8 kB), COM2 (38.4 kB), COM3 (230.4 kB) Device COM1 (4.8 kB), COM2 (38.4 kB), COM3 (230.4 kB) Configurable via software | ||
| Protocol | CANopen I-Port IO-Link® Modbus® TCP | ||
| Serial interface, connection system | Plugs | ||
| Serial interface, number | 3 | ||
| Digital outputs, short circuit current rating | yes | ||
| Digital outputs, electrical isolation | Yes, via optocoupler | ||
| Digital outputs, output voltage | 24 V DC | ||
| Digital outputs, switching logic | Positive logic (PNP) | ||
| Max. cable length | 30 m inputs | ||
| Digital inputs, electrical isolation | Yes, via optocoupler | ||
| Digital inputs, nominal value for TRUE | >= 15 V DC | ||
| Digital inputs, input signal delay | Typically 3 ms | ||
| Digital inputs, switching logic | Positive logic (PNP) | ||
| CPU data | 400 MHz processor | ||
| Electrical connection system I/Os | Socket strip, detent 3.5 mm | ||
| Vibration resistance test | As per EN 61131-2 | ||
| Protection class | III | ||
| Relative air humidity | 95 % Non-condensing | ||
| Ambient temperature | 0 °C ... 55 °C | ||
| Current consumption | 100 mA nominal at 24 V DC | ||
| Nominal operating voltage DC | 24 V | ||
| Approval | RCM trademark c UL us listed (OL) |
