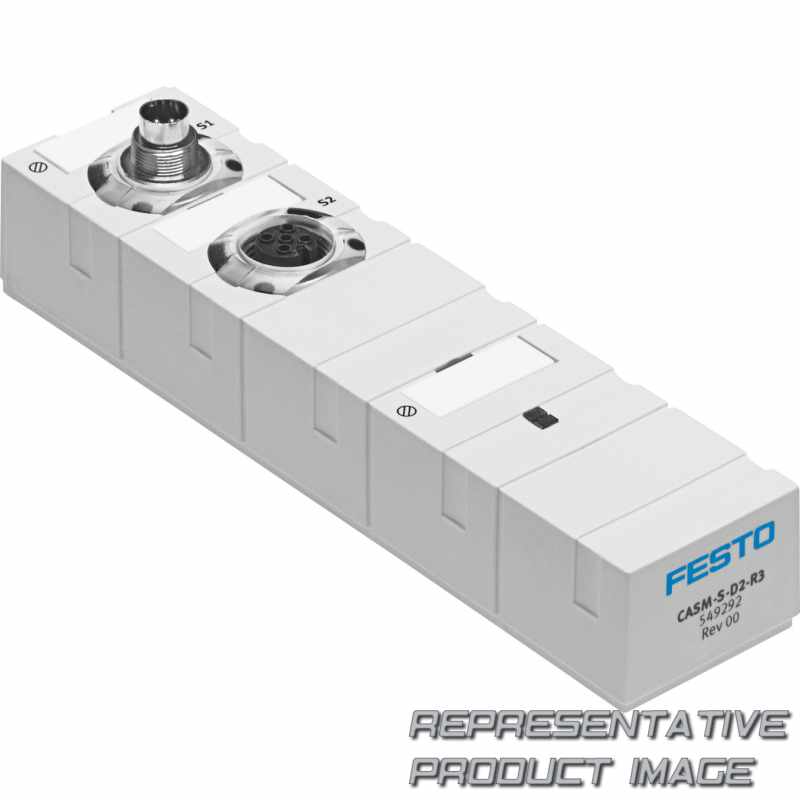

FESTO 549292 sensor interface

Name: 549292 FESTO
Brand: FESTO
SKU: 690401-en-gbp
Price: 422.54 GBP
Availability: InStock

CASM-S-D2-R3

£422.54

3 pcs. with 1 to 3 days delivery to United States

Specifications

Series (CASM)	Sensor interface
Function (S)	Sensor interface

Displacement encoder (D2)	Analogue
Electrical connection (R3)	Individual connector M12

Material housing		PBT-reinforced
Control-Interface		Digital CAN bus with Festo protocol Without terminating resistor
Electrical connection measuring system		M12 Socket 5-pin
Ambient temperature		0 °C ... 55 °C
Degree of protection		IP67 Plug connector in mated condition
Storage temperature		-20 °C ... 70 °C
Corrosion resistance class CRC		1 - Low corrosion stress
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
KC mark		KC-EMV
Permissible voltage fluctuations		+/- 25%
Residual ripple		4 Vpp
Nominal operating voltage DC		24 V
Mounting position		optional

Type of mounting		With through-hole
Electrical connection control interface		Plugs M9 5-pin
Product weight		128 g
Vibration resistance to DIN/IEC 68 Part 2-6		Tested to severity level 2
Relative air humidity		95 % Non-condensing
LABS (PWIS) conformity		VDMA24364-B2-L
Continuous shock resistance to DIN/IEC 68 Part 2-82		Tested to severity level 2
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive
Approval		RCM trademark
Current consumption at nominal operating voltage		40 - 50 mA
Power failure bridging		10 ms
Power supply requirements		PELV
Diagnostic function		Display via LED
